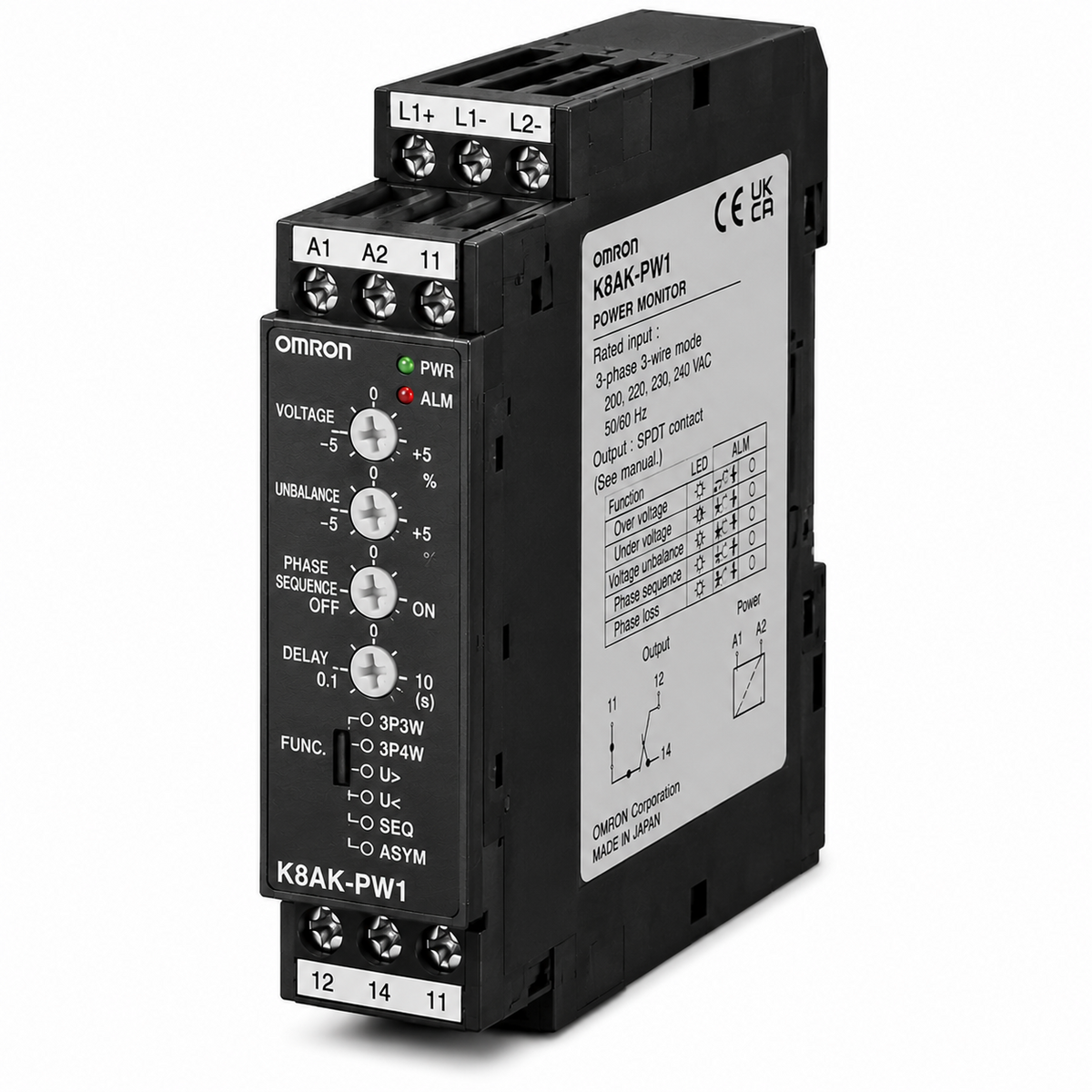

Omron K8AK-PW Three-phase Voltage Relay (200~480VAC, 3W/4W, 22.5mm, SPDT×2)

Omron K8AK-PW Three-phase Voltage Relay (200~480VAC, 3W/4W, 22.5mm, SPDT×2)

Ideal for Monitoring 3-phase Power Supplies for Industrial Facilities and Equipment. 22.5 mm (W).

Key features

  • Two SPDT output relays

Specifications

Type Three-phase Voltage Relay
Mode Selection DIP switch (3-wire or 4-wire + input range)
Power Supply Same as rated input voltage
Output SPDT × 2
Width 22.5 mm
K8AK-PW1 K8AK-PW 200~240VAC 3W/4W | Type: Three-phase Voltage Relay | Rated Input 3W: 200/220/230/240 VAC | Rated Input 4W: 115/127/133/138 VAC | Mode Selection: DIP switch (3-wire or 4-wire + input range) | Power Supply: Same as rated input voltage | Output: SPDT × 2 | Width: 22.5 mm
K8AK-PW2 K8AK-PW 380~480VAC 3W/4W | Type: Three-phase Voltage Relay | Rated Input 3W: 380/400/415/480 VAC | Rated Input 4W: 220/230/240/277 VAC | Mode Selection: DIP switch (3-wire or 4-wire + input range) | Power Supply: Same as rated input voltage | Output: SPDT × 2 | Width: 22.5 mm
Monitoring RelaysOmron
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron K8AK-PW Three-phase Voltage Relay (200~480VAC, 3W/4W, 22.5mm, SPDT×2)

Brand Omron·Monitoring Relays

Available part numbers (2)

K8AK-PW1, K8AK-PW2

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
K8AK-PW1K8AK-PW 200~240VAC 3W/4W | Type: Three-phase Voltage Relay | Rated Input 3W: 200/220/230/240 VAC | Rated Input 4W: 115/127/133/138 VAC | Mode Selection: DIP switch (3-wire or 4-wire + input range) | Power Supply: Same as rated input voltage | Output: SPDT × 2 | Width: 22.5 mm
K8AK-PW2K8AK-PW 380~480VAC 3W/4W | Type: Three-phase Voltage Relay | Rated Input 3W: 380/400/415/480 VAC | Rated Input 4W: 220/230/240/277 VAC | Mode Selection: DIP switch (3-wire or 4-wire + input range) | Power Supply: Same as rated input voltage | Output: SPDT × 2 | Width: 22.5 mm
