• Omron WL-N/WLG Long-life Limit Switch (Roller Lever, Screw/Direct-wire/Pre-wired connector)
1 1

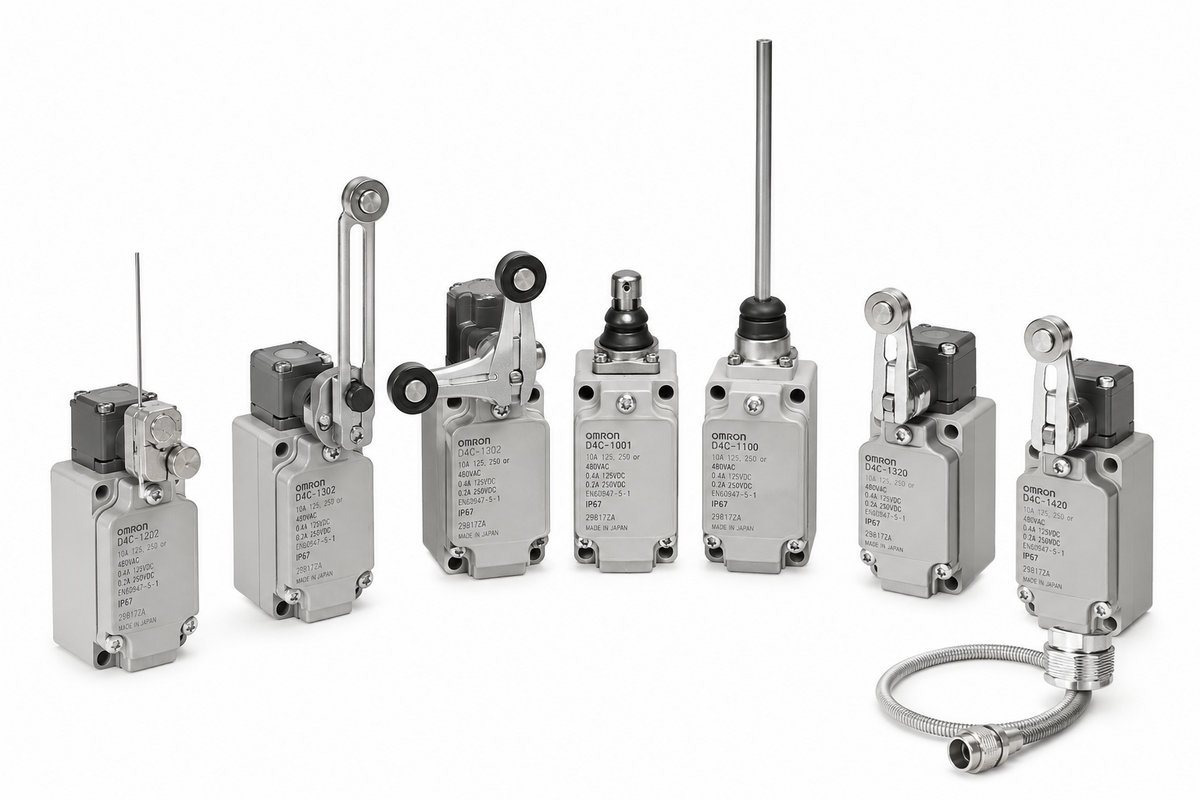

Omron WL-N/WLG Long-life Limit Switch (Roller Lever, Screw/Direct-wire/Pre-wired connector)

Omron WL-N/WLG Long-life Limit Switch (Roller Lever, Screw/Direct-wire/Pre-wired connector)

Two-circuit limit switches that can be selected to match the operating environment and application WL-N/Basic models, WLG/High-sensitivity and High-precision models.

Specifications

Type Two-circuit Limit Switch
Actuator Roller lever R38mm
Indicator LED
Built-in Switch Long-life
WLMCA2-LD-N WL Long-life Roller 15±5° Screw LED | Type: Two-circuit Limit Switch | Actuator: Roller lever R38mm | Terminal: Screw | Pretravel: 15±5° | Indicator: LED | Built-in Switch: Long-life
WLMG2-LD WL Long-life Roller 10°+2°,-1° Screw LED | Type: Two-circuit Limit Switch | Actuator: Roller lever R38mm | Terminal: Screw | Pretravel: 10°+2°,-1° | Indicator: LED | Built-in Switch: Long-life
WLMGCA2-LD WL Long-life Roller 5°+2°,0° Screw LED | Type: Two-circuit Limit Switch | Actuator: Roller lever R38mm | Terminal: Screw | Pretravel: 5°+2°,0° | Indicator: LED | Built-in Switch: Long-life
WLMCA2-LDK13A-N WL Long-life DWC 15±5° NO only AC | Type: Two-circuit Limit Switch | Actuator: Roller lever R38mm | Terminal: Direct-wire M12 | Pretravel: 15±5° | Indicator: LED | Built-in Switch: Long-life | Wiring: NO only | Voltage: AC
WLMCA2-LDK43A-N WL Long-life DWC 15±5° NC+NO AC | Type: Two-circuit Limit Switch | Actuator: Roller lever R38mm | Terminal: Direct-wire M12 | Pretravel: 15±5° | Indicator: LED | Built-in Switch: Long-life | Wiring: NC+NO | Voltage: AC
WLMCA2-LDK13-N WL Long-life DWC 15±5° NO only DC | Type: Two-circuit Limit Switch | Actuator: Roller lever R38mm | Terminal: Direct-wire M12 | Pretravel: 15±5° | Indicator: LED | Built-in Switch: Long-life | Wiring: NO only | Voltage: DC
WLMCA2-LDK43-N WL Long-life DWC 15±5° NC+NO DC | Type: Two-circuit Limit Switch | Actuator: Roller lever R38mm | Terminal: Direct-wire M12 | Pretravel: 15±5° | Indicator: LED | Built-in Switch: Long-life | Wiring: NC+NO | Voltage: DC
WLMG2-LDK13A WL Long-life DWC 10°+2°,-1° NO only AC | Type: Two-circuit Limit Switch | Actuator: Roller lever R38mm | Terminal: Direct-wire M12 | Pretravel: 10°+2°,-1° | Indicator: LED | Built-in Switch: Long-life | Wiring: NO only | Voltage: AC
WLMG2-LDK43A WL Long-life DWC 10°+2°,-1° NC+NO AC | Type: Two-circuit Limit Switch | Actuator: Roller lever R38mm | Terminal: Direct-wire M12 | Pretravel: 10°+2°,-1° | Indicator: LED | Built-in Switch: Long-life | Wiring: NC+NO | Voltage: AC
WLMG2-LDK13 WL Long-life DWC 10°+2°,-1° NO only DC | Type: Two-circuit Limit Switch | Actuator: Roller lever R38mm | Terminal: Direct-wire M12 | Pretravel: 10°+2°,-1° | Indicator: LED | Built-in Switch: Long-life | Wiring: NO only | Voltage: DC
WLMG2-LDK43 WL Long-life DWC 10°+2°,-1° NC+NO DC | Type: Two-circuit Limit Switch | Actuator: Roller lever R38mm | Terminal: Direct-wire M12 | Pretravel: 10°+2°,-1° | Indicator: LED | Built-in Switch: Long-life | Wiring: NC+NO | Voltage: DC
WLMGCA2-LDK13A WL Long-life DWC 5°+2°,0° NO only AC | Type: Two-circuit Limit Switch | Actuator: Roller lever R38mm | Terminal: Direct-wire M12 | Pretravel: 5°+2°,0° | Indicator: LED | Built-in Switch: Long-life | Wiring: NO only | Voltage: AC
WLMGCA2-LDK13 WL Long-life DWC 5°+2°,0° NO only DC | Type: Two-circuit Limit Switch | Actuator: Roller lever R38mm | Terminal: Direct-wire M12 | Pretravel: 5°+2°,0° | Indicator: LED | Built-in Switch: Long-life | Wiring: NO only | Voltage: DC
WLMGCA2-LDK43 WL Long-life DWC 5°+2°,0° NC+NO DC | Type: Two-circuit Limit Switch | Actuator: Roller lever R38mm | Terminal: Direct-wire M12 | Pretravel: 5°+2°,0° | Indicator: LED | Built-in Switch: Long-life | Wiring: NC+NO | Voltage: DC
WLMCA2-LD-M1J-N WL Long-life PWC 15±5° NO only M12 | Type: Two-circuit Limit Switch | Actuator: Roller lever R38mm | Terminal: Pre-wired M12 | Pretravel: 15±5° | Indicator: LED | Built-in Switch: Long-life | Wiring: NO only
WLMCA2-LD-AGJ-N WL Long-life PWC 15±5° NC+NO M12 | Type: Two-circuit Limit Switch | Actuator: Roller lever R38mm | Terminal: Pre-wired M12 | Pretravel: 15±5° | Indicator: LED | Built-in Switch: Long-life | Wiring: NC+NO
WLMCA2-LD-DGJ-N WL Long-life PWC 15±5° NC+NO M12 | Type: Two-circuit Limit Switch | Actuator: Roller lever R38mm | Terminal: Pre-wired M12 | Pretravel: 15±5° | Indicator: LED | Built-in Switch: Long-life | Wiring: NC+NO
WLMCA2-LD-DTGJ-N WL Long-life PWC 15±5° NC+NO Smartclick | Type: Two-circuit Limit Switch | Actuator: Roller lever R38mm | Terminal: Pre-wired Smartclick | Pretravel: 15±5° | Indicator: LED | Built-in Switch: Long-life | Wiring: NC+NO
WLMG2-LD-M1J WL Long-life PWC 10°+2°,-1° NO only M12 | Type: Two-circuit Limit Switch | Actuator: Roller lever R38mm | Terminal: Pre-wired M12 | Pretravel: 10°+2°,-1° | Indicator: LED | Built-in Switch: Long-life | Wiring: NO only
WLMG2-LD-DGJ03 WL Long-life PWC 10°+2°,-1° NC+NO M12 | Type: Two-circuit Limit Switch | Actuator: Roller lever R38mm | Terminal: Pre-wired M12 | Pretravel: 10°+2°,-1° | Indicator: LED | Built-in Switch: Long-life | Wiring: NC+NO
WLMG2-LD-DTGJ03 WL Long-life PWC 10°+2°,-1° NC+NO Smartclick | Type: Two-circuit Limit Switch | Actuator: Roller lever R38mm | Terminal: Pre-wired Smartclick | Pretravel: 10°+2°,-1° | Indicator: LED | Built-in Switch: Long-life | Wiring: NC+NO
WLMGCA2-LD-M1J WL Long-life PWC 5°+2°,0° NO only M12 | Type: Two-circuit Limit Switch | Actuator: Roller lever R38mm | Terminal: Pre-wired M12 | Pretravel: 5°+2°,0° | Indicator: LED | Built-in Switch: Long-life | Wiring: NO only
Limit SwitchesOmron
22 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron WL-N/WLG Long-life Limit Switch (Roller Lever, Screw/Direct-wire/Pre-wired connector)

Brand Omron·Limit Switches

Available part numbers (22)

WLMCA2-LD-N, WLMG2-LD, WLMGCA2-LD, WLMCA2-LDK13A-N, WLMCA2-LDK43A-N, WLMCA2-LDK13-N, WLMCA2-LDK43-N, WLMG2-LDK13A, WLMG2-LDK43A, WLMG2-LDK13 + 12 more — see full table ↓

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WLMCA2-LD-NWL Long-life Roller 15±5° Screw LED | Type: Two-circuit Limit Switch | Actuator: Roller lever R38mm | Terminal: Screw | Pretravel: 15±5° | Indicator: LED | Built-in Switch: Long-life
WLMG2-LDWL Long-life Roller 10°+2°,-1° Screw LED | Type: Two-circuit Limit Switch | Actuator: Roller lever R38mm | Terminal: Screw | Pretravel: 10°+2°,-1° | Indicator: LED | Built-in Switch: Long-life
WLMGCA2-LDWL Long-life Roller 5°+2°,0° Screw LED | Type: Two-circuit Limit Switch | Actuator: Roller lever R38mm | Terminal: Screw | Pretravel: 5°+2°,0° | Indicator: LED | Built-in Switch: Long-life
WLMCA2-LDK13A-NWL Long-life DWC 15±5° NO only AC | Type: Two-circuit Limit Switch | Actuator: Roller lever R38mm | Terminal: Direct-wire M12 | Pretravel: 15±5° | Indicator: LED | Built-in Switch: Long-life | Wiring: NO only | Voltage: AC
WLMCA2-LDK43A-NWL Long-life DWC 15±5° NC+NO AC | Type: Two-circuit Limit Switch | Actuator: Roller lever R38mm | Terminal: Direct-wire M12 | Pretravel: 15±5° | Indicator: LED | Built-in Switch: Long-life | Wiring: NC+NO | Voltage: AC
WLMCA2-LDK13-NWL Long-life DWC 15±5° NO only DC | Type: Two-circuit Limit Switch | Actuator: Roller lever R38mm | Terminal: Direct-wire M12 | Pretravel: 15±5° | Indicator: LED | Built-in Switch: Long-life | Wiring: NO only | Voltage: DC
WLMCA2-LDK43-NWL Long-life DWC 15±5° NC+NO DC | Type: Two-circuit Limit Switch | Actuator: Roller lever R38mm | Terminal: Direct-wire M12 | Pretravel: 15±5° | Indicator: LED | Built-in Switch: Long-life | Wiring: NC+NO | Voltage: DC
WLMG2-LDK13AWL Long-life DWC 10°+2°,-1° NO only AC | Type: Two-circuit Limit Switch | Actuator: Roller lever R38mm | Terminal: Direct-wire M12 | Pretravel: 10°+2°,-1° | Indicator: LED | Built-in Switch: Long-life | Wiring: NO only | Voltage: AC
WLMG2-LDK43AWL Long-life DWC 10°+2°,-1° NC+NO AC | Type: Two-circuit Limit Switch | Actuator: Roller lever R38mm | Terminal: Direct-wire M12 | Pretravel: 10°+2°,-1° | Indicator: LED | Built-in Switch: Long-life | Wiring: NC+NO | Voltage: AC
WLMG2-LDK13WL Long-life DWC 10°+2°,-1° NO only DC | Type: Two-circuit Limit Switch | Actuator: Roller lever R38mm | Terminal: Direct-wire M12 | Pretravel: 10°+2°,-1° | Indicator: LED | Built-in Switch: Long-life | Wiring: NO only | Voltage: DC
WLMG2-LDK43WL Long-life DWC 10°+2°,-1° NC+NO DC | Type: Two-circuit Limit Switch | Actuator: Roller lever R38mm | Terminal: Direct-wire M12 | Pretravel: 10°+2°,-1° | Indicator: LED | Built-in Switch: Long-life | Wiring: NC+NO | Voltage: DC
WLMGCA2-LDK13AWL Long-life DWC 5°+2°,0° NO only AC | Type: Two-circuit Limit Switch | Actuator: Roller lever R38mm | Terminal: Direct-wire M12 | Pretravel: 5°+2°,0° | Indicator: LED | Built-in Switch: Long-life | Wiring: NO only | Voltage: AC
WLMGCA2-LDK13WL Long-life DWC 5°+2°,0° NO only DC | Type: Two-circuit Limit Switch | Actuator: Roller lever R38mm | Terminal: Direct-wire M12 | Pretravel: 5°+2°,0° | Indicator: LED | Built-in Switch: Long-life | Wiring: NO only | Voltage: DC
WLMGCA2-LDK43WL Long-life DWC 5°+2°,0° NC+NO DC | Type: Two-circuit Limit Switch | Actuator: Roller lever R38mm | Terminal: Direct-wire M12 | Pretravel: 5°+2°,0° | Indicator: LED | Built-in Switch: Long-life | Wiring: NC+NO | Voltage: DC
WLMCA2-LD-M1J-NWL Long-life PWC 15±5° NO only M12 | Type: Two-circuit Limit Switch | Actuator: Roller lever R38mm | Terminal: Pre-wired M12 | Pretravel: 15±5° | Indicator: LED | Built-in Switch: Long-life | Wiring: NO only
WLMCA2-LD-AGJ-NWL Long-life PWC 15±5° NC+NO M12 | Type: Two-circuit Limit Switch | Actuator: Roller lever R38mm | Terminal: Pre-wired M12 | Pretravel: 15±5° | Indicator: LED | Built-in Switch: Long-life | Wiring: NC+NO
WLMCA2-LD-DGJ-NWL Long-life PWC 15±5° NC+NO M12 | Type: Two-circuit Limit Switch | Actuator: Roller lever R38mm | Terminal: Pre-wired M12 | Pretravel: 15±5° | Indicator: LED | Built-in Switch: Long-life | Wiring: NC+NO
WLMCA2-LD-DTGJ-NWL Long-life PWC 15±5° NC+NO Smartclick | Type: Two-circuit Limit Switch | Actuator: Roller lever R38mm | Terminal: Pre-wired Smartclick | Pretravel: 15±5° | Indicator: LED | Built-in Switch: Long-life | Wiring: NC+NO
WLMG2-LD-M1JWL Long-life PWC 10°+2°,-1° NO only M12 | Type: Two-circuit Limit Switch | Actuator: Roller lever R38mm | Terminal: Pre-wired M12 | Pretravel: 10°+2°,-1° | Indicator: LED | Built-in Switch: Long-life | Wiring: NO only
WLMG2-LD-DGJ03WL Long-life PWC 10°+2°,-1° NC+NO M12 | Type: Two-circuit Limit Switch | Actuator: Roller lever R38mm | Terminal: Pre-wired M12 | Pretravel: 10°+2°,-1° | Indicator: LED | Built-in Switch: Long-life | Wiring: NC+NO
WLMG2-LD-DTGJ03WL Long-life PWC 10°+2°,-1° NC+NO Smartclick | Type: Two-circuit Limit Switch | Actuator: Roller lever R38mm | Terminal: Pre-wired Smartclick | Pretravel: 10°+2°,-1° | Indicator: LED | Built-in Switch: Long-life | Wiring: NC+NO
WLMGCA2-LD-M1JWL Long-life PWC 5°+2°,0° NO only M12 | Type: Two-circuit Limit Switch | Actuator: Roller lever R38mm | Terminal: Pre-wired M12 | Pretravel: 5°+2°,0° | Indicator: LED | Built-in Switch: Long-life | Wiring: NO only
