Omron ZP-L Laser Displacement Sensor Head (Line/Spot Beam, 025/050/100/300/600, Class 2)

Omron ZP-L Laser Displacement Sensor Head (Line/Spot Beam, 025/050/100/300/600, Class 2)

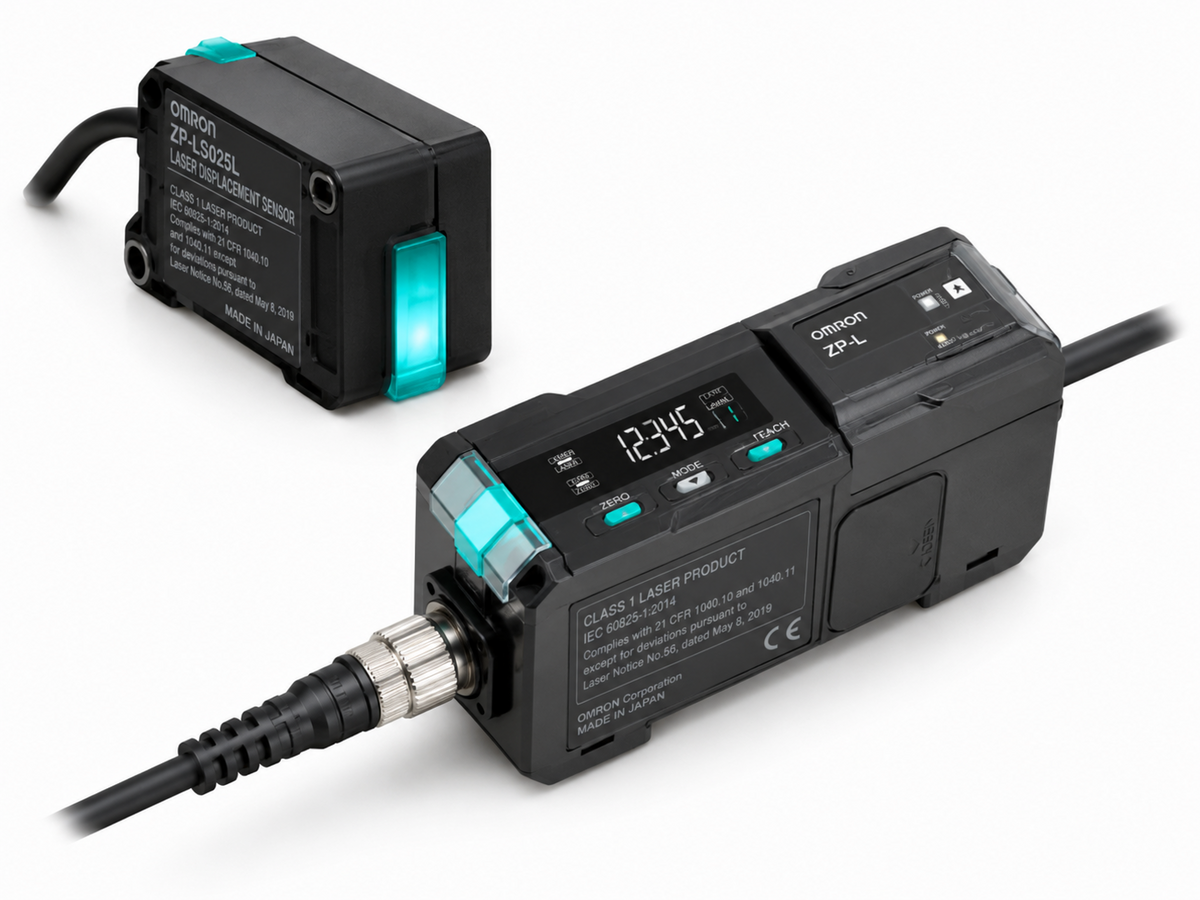

OMRON ZP-L Series laser displacement sensor heads.

Key features

  • Diffuse-reflective
  • Line beam: ZP-LS025L/050L/100L (0.5~1.2μm), ZP-LS300L/600L (4~14μm)
  • Spot beam: ZP-LS025S/050S/100S (0.6~1.3μm), ZP-LS300S/600S (4~14μm)
  • Class 2 laser (Class 1 available with 'C' suffix)
  • Cable 0.2m and 2m
  • Requires ZP-L amplifier unit (sold separately)

Specifications

Optical System Diffuse-reflective
Measurement Distance Refer to datasheet
Laser Class Class 2 (default); Class 1 also available — add 'C' suffix e.g. ZP-LS025LC 2M
Required Amplifier ZP-L3000/3010/3050/3060 (Master) or ZP-L3500/3510/3550/3560 (Slave)
Extension Cable XS3W-M42x-40x-R normal or -PR robot cable (sold separately, max 20m)
ZP-LS025L 0.2M Laser displacement head Line beam 0.5 μm 0.2m | Optical System: Diffuse-reflective | Beam Shape: Line beam | Resolution: 0.5 μm | Measurement Distance: Refer to datasheet | Laser Class: Class 2 (default); Class 1 also available — add 'C' suffix e.g. ZP-LS025LC 2M | Required Amplifier: ZP-L3000/3010/3050/3060 (Master) or ZP-L3500/3510/3550/3560 (Slave) | Extension Cable: XS3W-M42x-40x-R normal or -PR robot cable (sold separately, max 20m) | Cable Length: 0.2 m (recommended for robot cable use)
ZP-LS025L 2M Laser displacement head Line beam 0.5 μm 2m | Optical System: Diffuse-reflective | Beam Shape: Line beam | Resolution: 0.5 μm | Measurement Distance: Refer to datasheet | Laser Class: Class 2 (default); Class 1 also available — add 'C' suffix e.g. ZP-LS025LC 2M | Required Amplifier: ZP-L3000/3010/3050/3060 (Master) or ZP-L3500/3510/3550/3560 (Slave) | Extension Cable: XS3W-M42x-40x-R normal or -PR robot cable (sold separately, max 20m) | Cable Length: 2 m
ZP-LS025S 0.2M Laser displacement head Spot beam 0.6 μm 0.2m | Optical System: Diffuse-reflective | Beam Shape: Spot beam | Resolution: 0.6 μm | Measurement Distance: Refer to datasheet | Laser Class: Class 2 (default); Class 1 also available — add 'C' suffix e.g. ZP-LS025LC 2M | Required Amplifier: ZP-L3000/3010/3050/3060 (Master) or ZP-L3500/3510/3550/3560 (Slave) | Extension Cable: XS3W-M42x-40x-R normal or -PR robot cable (sold separately, max 20m) | Cable Length: 0.2 m (recommended for robot cable use)
ZP-LS025S 2M Laser displacement head Spot beam 0.6 μm 2m | Optical System: Diffuse-reflective | Beam Shape: Spot beam | Resolution: 0.6 μm | Measurement Distance: Refer to datasheet | Laser Class: Class 2 (default); Class 1 also available — add 'C' suffix e.g. ZP-LS025LC 2M | Required Amplifier: ZP-L3000/3010/3050/3060 (Master) or ZP-L3500/3510/3550/3560 (Slave) | Extension Cable: XS3W-M42x-40x-R normal or -PR robot cable (sold separately, max 20m) | Cable Length: 2 m
ZP-LS050L 0.2M Laser displacement head Line beam 0.7 μm 0.2m | Optical System: Diffuse-reflective | Beam Shape: Line beam | Resolution: 0.7 μm | Measurement Distance: Refer to datasheet | Laser Class: Class 2 (default); Class 1 also available — add 'C' suffix e.g. ZP-LS025LC 2M | Required Amplifier: ZP-L3000/3010/3050/3060 (Master) or ZP-L3500/3510/3550/3560 (Slave) | Extension Cable: XS3W-M42x-40x-R normal or -PR robot cable (sold separately, max 20m) | Cable Length: 0.2 m (recommended for robot cable use)
ZP-LS050L 2M Laser displacement head Line beam 0.7 μm 2m | Optical System: Diffuse-reflective | Beam Shape: Line beam | Resolution: 0.7 μm | Measurement Distance: Refer to datasheet | Laser Class: Class 2 (default); Class 1 also available — add 'C' suffix e.g. ZP-LS025LC 2M | Required Amplifier: ZP-L3000/3010/3050/3060 (Master) or ZP-L3500/3510/3550/3560 (Slave) | Extension Cable: XS3W-M42x-40x-R normal or -PR robot cable (sold separately, max 20m) | Cable Length: 2 m
ZP-LS050S 0.2M Laser displacement head Spot beam 0.8 μm 0.2m | Optical System: Diffuse-reflective | Beam Shape: Spot beam | Resolution: 0.8 μm | Measurement Distance: Refer to datasheet | Laser Class: Class 2 (default); Class 1 also available — add 'C' suffix e.g. ZP-LS025LC 2M | Required Amplifier: ZP-L3000/3010/3050/3060 (Master) or ZP-L3500/3510/3550/3560 (Slave) | Extension Cable: XS3W-M42x-40x-R normal or -PR robot cable (sold separately, max 20m) | Cable Length: 0.2 m (recommended for robot cable use)
ZP-LS050S 2M Laser displacement head Spot beam 0.8 μm 2m | Optical System: Diffuse-reflective | Beam Shape: Spot beam | Resolution: 0.8 μm | Measurement Distance: Refer to datasheet | Laser Class: Class 2 (default); Class 1 also available — add 'C' suffix e.g. ZP-LS025LC 2M | Required Amplifier: ZP-L3000/3010/3050/3060 (Master) or ZP-L3500/3510/3550/3560 (Slave) | Extension Cable: XS3W-M42x-40x-R normal or -PR robot cable (sold separately, max 20m) | Cable Length: 2 m
ZP-LS100L 0.2M Laser displacement head Line beam 1.2 μm 0.2m | Optical System: Diffuse-reflective | Beam Shape: Line beam | Resolution: 1.2 μm | Measurement Distance: Refer to datasheet | Laser Class: Class 2 (default); Class 1 also available — add 'C' suffix e.g. ZP-LS025LC 2M | Required Amplifier: ZP-L3000/3010/3050/3060 (Master) or ZP-L3500/3510/3550/3560 (Slave) | Extension Cable: XS3W-M42x-40x-R normal or -PR robot cable (sold separately, max 20m) | Cable Length: 0.2 m (recommended for robot cable use)
ZP-LS100L 2M Laser displacement head Line beam 1.2 μm 2m | Optical System: Diffuse-reflective | Beam Shape: Line beam | Resolution: 1.2 μm | Measurement Distance: Refer to datasheet | Laser Class: Class 2 (default); Class 1 also available — add 'C' suffix e.g. ZP-LS025LC 2M | Required Amplifier: ZP-L3000/3010/3050/3060 (Master) or ZP-L3500/3510/3550/3560 (Slave) | Extension Cable: XS3W-M42x-40x-R normal or -PR robot cable (sold separately, max 20m) | Cable Length: 2 m
ZP-LS100S 0.2M Laser displacement head Spot beam 1.3 μm 0.2m | Optical System: Diffuse-reflective | Beam Shape: Spot beam | Resolution: 1.3 μm | Measurement Distance: Refer to datasheet | Laser Class: Class 2 (default); Class 1 also available — add 'C' suffix e.g. ZP-LS025LC 2M | Required Amplifier: ZP-L3000/3010/3050/3060 (Master) or ZP-L3500/3510/3550/3560 (Slave) | Extension Cable: XS3W-M42x-40x-R normal or -PR robot cable (sold separately, max 20m) | Cable Length: 0.2 m (recommended for robot cable use)
ZP-LS100S 2M Laser displacement head Spot beam 1.3 μm 2m | Optical System: Diffuse-reflective | Beam Shape: Spot beam | Resolution: 1.3 μm | Measurement Distance: Refer to datasheet | Laser Class: Class 2 (default); Class 1 also available — add 'C' suffix e.g. ZP-LS025LC 2M | Required Amplifier: ZP-L3000/3010/3050/3060 (Master) or ZP-L3500/3510/3550/3560 (Slave) | Extension Cable: XS3W-M42x-40x-R normal or -PR robot cable (sold separately, max 20m) | Cable Length: 2 m
ZP-LS300L 0.2M Laser displacement head Line beam 4 μm 0.2m | Optical System: Diffuse-reflective | Beam Shape: Line beam | Resolution: 4 μm | Measurement Distance: Refer to datasheet | Laser Class: Class 2 (default); Class 1 also available — add 'C' suffix e.g. ZP-LS025LC 2M | Required Amplifier: ZP-L3000/3010/3050/3060 (Master) or ZP-L3500/3510/3550/3560 (Slave) | Extension Cable: XS3W-M42x-40x-R normal or -PR robot cable (sold separately, max 20m) | Cable Length: 0.2 m (recommended for robot cable use)
ZP-LS300L 2M Laser displacement head Line beam 4 μm 2m | Optical System: Diffuse-reflective | Beam Shape: Line beam | Resolution: 4 μm | Measurement Distance: Refer to datasheet | Laser Class: Class 2 (default); Class 1 also available — add 'C' suffix e.g. ZP-LS025LC 2M | Required Amplifier: ZP-L3000/3010/3050/3060 (Master) or ZP-L3500/3510/3550/3560 (Slave) | Extension Cable: XS3W-M42x-40x-R normal or -PR robot cable (sold separately, max 20m) | Cable Length: 2 m
ZP-LS300S 0.2M Laser displacement head Spot beam 4 μm 0.2m | Optical System: Diffuse-reflective | Beam Shape: Spot beam | Resolution: 4 μm | Measurement Distance: Refer to datasheet | Laser Class: Class 2 (default); Class 1 also available — add 'C' suffix e.g. ZP-LS025LC 2M | Required Amplifier: ZP-L3000/3010/3050/3060 (Master) or ZP-L3500/3510/3550/3560 (Slave) | Extension Cable: XS3W-M42x-40x-R normal or -PR robot cable (sold separately, max 20m) | Cable Length: 0.2 m (recommended for robot cable use)
ZP-LS300S 2M Laser displacement head Spot beam 4 μm 2m | Optical System: Diffuse-reflective | Beam Shape: Spot beam | Resolution: 4 μm | Measurement Distance: Refer to datasheet | Laser Class: Class 2 (default); Class 1 also available — add 'C' suffix e.g. ZP-LS025LC 2M | Required Amplifier: ZP-L3000/3010/3050/3060 (Master) or ZP-L3500/3510/3550/3560 (Slave) | Extension Cable: XS3W-M42x-40x-R normal or -PR robot cable (sold separately, max 20m) | Cable Length: 2 m
ZP-LS600L 0.2M Laser displacement head Line beam 14 μm 0.2m | Optical System: Diffuse-reflective | Beam Shape: Line beam | Resolution: 14 μm | Measurement Distance: Refer to datasheet | Laser Class: Class 2 (default); Class 1 also available — add 'C' suffix e.g. ZP-LS025LC 2M | Required Amplifier: ZP-L3000/3010/3050/3060 (Master) or ZP-L3500/3510/3550/3560 (Slave) | Extension Cable: XS3W-M42x-40x-R normal or -PR robot cable (sold separately, max 20m) | Cable Length: 0.2 m (recommended for robot cable use)
ZP-LS600L 2M Laser displacement head Line beam 14 μm 2m | Optical System: Diffuse-reflective | Beam Shape: Line beam | Resolution: 14 μm | Measurement Distance: Refer to datasheet | Laser Class: Class 2 (default); Class 1 also available — add 'C' suffix e.g. ZP-LS025LC 2M | Required Amplifier: ZP-L3000/3010/3050/3060 (Master) or ZP-L3500/3510/3550/3560 (Slave) | Extension Cable: XS3W-M42x-40x-R normal or -PR robot cable (sold separately, max 20m) | Cable Length: 2 m
ZP-LS600S 0.2M Laser displacement head Spot beam 14 μm 0.2m | Optical System: Diffuse-reflective | Beam Shape: Spot beam | Resolution: 14 μm | Measurement Distance: Refer to datasheet | Laser Class: Class 2 (default); Class 1 also available — add 'C' suffix e.g. ZP-LS025LC 2M | Required Amplifier: ZP-L3000/3010/3050/3060 (Master) or ZP-L3500/3510/3550/3560 (Slave) | Extension Cable: XS3W-M42x-40x-R normal or -PR robot cable (sold separately, max 20m) | Cable Length: 0.2 m (recommended for robot cable use)
ZP-LS600S 2M Laser displacement head Spot beam 14 μm 2m | Optical System: Diffuse-reflective | Beam Shape: Spot beam | Resolution: 14 μm | Measurement Distance: Refer to datasheet | Laser Class: Class 2 (default); Class 1 also available — add 'C' suffix e.g. ZP-LS025LC 2M | Required Amplifier: ZP-L3000/3010/3050/3060 (Master) or ZP-L3500/3510/3550/3560 (Slave) | Extension Cable: XS3W-M42x-40x-R normal or -PR robot cable (sold separately, max 20m) | Cable Length: 2 m
DisplacementOmron
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron ZP-L Laser Displacement Sensor Head (Line/Spot Beam, 025/050/100/300/600, Class 2)

Brand Omron·Displacement

Available part numbers (20)

ZP-LS025L 0.2M, ZP-LS025L 2M, ZP-LS025S 0.2M, ZP-LS025S 2M, ZP-LS050L 0.2M, ZP-LS050L 2M, ZP-LS050S 0.2M, ZP-LS050S 2M, ZP-LS100L 0.2M, ZP-LS100L 2M + 10 more — see full table ↓

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ZP-LS025L 0.2MLaser displacement head Line beam 0.5 μm 0.2m | Optical System: Diffuse-reflective | Beam Shape: Line beam | Resolution: 0.5 μm | Measurement Distance: Refer to datasheet | Laser Class: Class 2 (default); Class 1 also available — add 'C' suffix e.g. ZP-LS025LC 2M | Required Amplifier: ZP-L3000/3010/3050/3060 (Master) or ZP-L3500/3510/3550/3560 (Slave) | Extension Cable: XS3W-M42x-40x-R normal or -PR robot cable (sold separately, max 20m) | Cable Length: 0.2 m (recommended for robot cable use)
ZP-LS025L 2MLaser displacement head Line beam 0.5 μm 2m | Optical System: Diffuse-reflective | Beam Shape: Line beam | Resolution: 0.5 μm | Measurement Distance: Refer to datasheet | Laser Class: Class 2 (default); Class 1 also available — add 'C' suffix e.g. ZP-LS025LC 2M | Required Amplifier: ZP-L3000/3010/3050/3060 (Master) or ZP-L3500/3510/3550/3560 (Slave) | Extension Cable: XS3W-M42x-40x-R normal or -PR robot cable (sold separately, max 20m) | Cable Length: 2 m
ZP-LS025S 0.2MLaser displacement head Spot beam 0.6 μm 0.2m | Optical System: Diffuse-reflective | Beam Shape: Spot beam | Resolution: 0.6 μm | Measurement Distance: Refer to datasheet | Laser Class: Class 2 (default); Class 1 also available — add 'C' suffix e.g. ZP-LS025LC 2M | Required Amplifier: ZP-L3000/3010/3050/3060 (Master) or ZP-L3500/3510/3550/3560 (Slave) | Extension Cable: XS3W-M42x-40x-R normal or -PR robot cable (sold separately, max 20m) | Cable Length: 0.2 m (recommended for robot cable use)
ZP-LS025S 2MLaser displacement head Spot beam 0.6 μm 2m | Optical System: Diffuse-reflective | Beam Shape: Spot beam | Resolution: 0.6 μm | Measurement Distance: Refer to datasheet | Laser Class: Class 2 (default); Class 1 also available — add 'C' suffix e.g. ZP-LS025LC 2M | Required Amplifier: ZP-L3000/3010/3050/3060 (Master) or ZP-L3500/3510/3550/3560 (Slave) | Extension Cable: XS3W-M42x-40x-R normal or -PR robot cable (sold separately, max 20m) | Cable Length: 2 m
ZP-LS050L 0.2MLaser displacement head Line beam 0.7 μm 0.2m | Optical System: Diffuse-reflective | Beam Shape: Line beam | Resolution: 0.7 μm | Measurement Distance: Refer to datasheet | Laser Class: Class 2 (default); Class 1 also available — add 'C' suffix e.g. ZP-LS025LC 2M | Required Amplifier: ZP-L3000/3010/3050/3060 (Master) or ZP-L3500/3510/3550/3560 (Slave) | Extension Cable: XS3W-M42x-40x-R normal or -PR robot cable (sold separately, max 20m) | Cable Length: 0.2 m (recommended for robot cable use)
ZP-LS050L 2MLaser displacement head Line beam 0.7 μm 2m | Optical System: Diffuse-reflective | Beam Shape: Line beam | Resolution: 0.7 μm | Measurement Distance: Refer to datasheet | Laser Class: Class 2 (default); Class 1 also available — add 'C' suffix e.g. ZP-LS025LC 2M | Required Amplifier: ZP-L3000/3010/3050/3060 (Master) or ZP-L3500/3510/3550/3560 (Slave) | Extension Cable: XS3W-M42x-40x-R normal or -PR robot cable (sold separately, max 20m) | Cable Length: 2 m
ZP-LS050S 0.2MLaser displacement head Spot beam 0.8 μm 0.2m | Optical System: Diffuse-reflective | Beam Shape: Spot beam | Resolution: 0.8 μm | Measurement Distance: Refer to datasheet | Laser Class: Class 2 (default); Class 1 also available — add 'C' suffix e.g. ZP-LS025LC 2M | Required Amplifier: ZP-L3000/3010/3050/3060 (Master) or ZP-L3500/3510/3550/3560 (Slave) | Extension Cable: XS3W-M42x-40x-R normal or -PR robot cable (sold separately, max 20m) | Cable Length: 0.2 m (recommended for robot cable use)
ZP-LS050S 2MLaser displacement head Spot beam 0.8 μm 2m | Optical System: Diffuse-reflective | Beam Shape: Spot beam | Resolution: 0.8 μm | Measurement Distance: Refer to datasheet | Laser Class: Class 2 (default); Class 1 also available — add 'C' suffix e.g. ZP-LS025LC 2M | Required Amplifier: ZP-L3000/3010/3050/3060 (Master) or ZP-L3500/3510/3550/3560 (Slave) | Extension Cable: XS3W-M42x-40x-R normal or -PR robot cable (sold separately, max 20m) | Cable Length: 2 m
ZP-LS100L 0.2MLaser displacement head Line beam 1.2 μm 0.2m | Optical System: Diffuse-reflective | Beam Shape: Line beam | Resolution: 1.2 μm | Measurement Distance: Refer to datasheet | Laser Class: Class 2 (default); Class 1 also available — add 'C' suffix e.g. ZP-LS025LC 2M | Required Amplifier: ZP-L3000/3010/3050/3060 (Master) or ZP-L3500/3510/3550/3560 (Slave) | Extension Cable: XS3W-M42x-40x-R normal or -PR robot cable (sold separately, max 20m) | Cable Length: 0.2 m (recommended for robot cable use)
ZP-LS100L 2MLaser displacement head Line beam 1.2 μm 2m | Optical System: Diffuse-reflective | Beam Shape: Line beam | Resolution: 1.2 μm | Measurement Distance: Refer to datasheet | Laser Class: Class 2 (default); Class 1 also available — add 'C' suffix e.g. ZP-LS025LC 2M | Required Amplifier: ZP-L3000/3010/3050/3060 (Master) or ZP-L3500/3510/3550/3560 (Slave) | Extension Cable: XS3W-M42x-40x-R normal or -PR robot cable (sold separately, max 20m) | Cable Length: 2 m
ZP-LS100S 0.2MLaser displacement head Spot beam 1.3 μm 0.2m | Optical System: Diffuse-reflective | Beam Shape: Spot beam | Resolution: 1.3 μm | Measurement Distance: Refer to datasheet | Laser Class: Class 2 (default); Class 1 also available — add 'C' suffix e.g. ZP-LS025LC 2M | Required Amplifier: ZP-L3000/3010/3050/3060 (Master) or ZP-L3500/3510/3550/3560 (Slave) | Extension Cable: XS3W-M42x-40x-R normal or -PR robot cable (sold separately, max 20m) | Cable Length: 0.2 m (recommended for robot cable use)
ZP-LS100S 2MLaser displacement head Spot beam 1.3 μm 2m | Optical System: Diffuse-reflective | Beam Shape: Spot beam | Resolution: 1.3 μm | Measurement Distance: Refer to datasheet | Laser Class: Class 2 (default); Class 1 also available — add 'C' suffix e.g. ZP-LS025LC 2M | Required Amplifier: ZP-L3000/3010/3050/3060 (Master) or ZP-L3500/3510/3550/3560 (Slave) | Extension Cable: XS3W-M42x-40x-R normal or -PR robot cable (sold separately, max 20m) | Cable Length: 2 m
ZP-LS300L 0.2MLaser displacement head Line beam 4 μm 0.2m | Optical System: Diffuse-reflective | Beam Shape: Line beam | Resolution: 4 μm | Measurement Distance: Refer to datasheet | Laser Class: Class 2 (default); Class 1 also available — add 'C' suffix e.g. ZP-LS025LC 2M | Required Amplifier: ZP-L3000/3010/3050/3060 (Master) or ZP-L3500/3510/3550/3560 (Slave) | Extension Cable: XS3W-M42x-40x-R normal or -PR robot cable (sold separately, max 20m) | Cable Length: 0.2 m (recommended for robot cable use)
ZP-LS300L 2MLaser displacement head Line beam 4 μm 2m | Optical System: Diffuse-reflective | Beam Shape: Line beam | Resolution: 4 μm | Measurement Distance: Refer to datasheet | Laser Class: Class 2 (default); Class 1 also available — add 'C' suffix e.g. ZP-LS025LC 2M | Required Amplifier: ZP-L3000/3010/3050/3060 (Master) or ZP-L3500/3510/3550/3560 (Slave) | Extension Cable: XS3W-M42x-40x-R normal or -PR robot cable (sold separately, max 20m) | Cable Length: 2 m
ZP-LS300S 0.2MLaser displacement head Spot beam 4 μm 0.2m | Optical System: Diffuse-reflective | Beam Shape: Spot beam | Resolution: 4 μm | Measurement Distance: Refer to datasheet | Laser Class: Class 2 (default); Class 1 also available — add 'C' suffix e.g. ZP-LS025LC 2M | Required Amplifier: ZP-L3000/3010/3050/3060 (Master) or ZP-L3500/3510/3550/3560 (Slave) | Extension Cable: XS3W-M42x-40x-R normal or -PR robot cable (sold separately, max 20m) | Cable Length: 0.2 m (recommended for robot cable use)
ZP-LS300S 2MLaser displacement head Spot beam 4 μm 2m | Optical System: Diffuse-reflective | Beam Shape: Spot beam | Resolution: 4 μm | Measurement Distance: Refer to datasheet | Laser Class: Class 2 (default); Class 1 also available — add 'C' suffix e.g. ZP-LS025LC 2M | Required Amplifier: ZP-L3000/3010/3050/3060 (Master) or ZP-L3500/3510/3550/3560 (Slave) | Extension Cable: XS3W-M42x-40x-R normal or -PR robot cable (sold separately, max 20m) | Cable Length: 2 m
ZP-LS600L 0.2MLaser displacement head Line beam 14 μm 0.2m | Optical System: Diffuse-reflective | Beam Shape: Line beam | Resolution: 14 μm | Measurement Distance: Refer to datasheet | Laser Class: Class 2 (default); Class 1 also available — add 'C' suffix e.g. ZP-LS025LC 2M | Required Amplifier: ZP-L3000/3010/3050/3060 (Master) or ZP-L3500/3510/3550/3560 (Slave) | Extension Cable: XS3W-M42x-40x-R normal or -PR robot cable (sold separately, max 20m) | Cable Length: 0.2 m (recommended for robot cable use)
ZP-LS600L 2MLaser displacement head Line beam 14 μm 2m | Optical System: Diffuse-reflective | Beam Shape: Line beam | Resolution: 14 μm | Measurement Distance: Refer to datasheet | Laser Class: Class 2 (default); Class 1 also available — add 'C' suffix e.g. ZP-LS025LC 2M | Required Amplifier: ZP-L3000/3010/3050/3060 (Master) or ZP-L3500/3510/3550/3560 (Slave) | Extension Cable: XS3W-M42x-40x-R normal or -PR robot cable (sold separately, max 20m) | Cable Length: 2 m
ZP-LS600S 0.2MLaser displacement head Spot beam 14 μm 0.2m | Optical System: Diffuse-reflective | Beam Shape: Spot beam | Resolution: 14 μm | Measurement Distance: Refer to datasheet | Laser Class: Class 2 (default); Class 1 also available — add 'C' suffix e.g. ZP-LS025LC 2M | Required Amplifier: ZP-L3000/3010/3050/3060 (Master) or ZP-L3500/3510/3550/3560 (Slave) | Extension Cable: XS3W-M42x-40x-R normal or -PR robot cable (sold separately, max 20m) | Cable Length: 0.2 m (recommended for robot cable use)
ZP-LS600S 2MLaser displacement head Spot beam 14 μm 2m | Optical System: Diffuse-reflective | Beam Shape: Spot beam | Resolution: 14 μm | Measurement Distance: Refer to datasheet | Laser Class: Class 2 (default); Class 1 also available — add 'C' suffix e.g. ZP-LS025LC 2M | Required Amplifier: ZP-L3000/3010/3050/3060 (Master) or ZP-L3500/3510/3550/3560 (Slave) | Extension Cable: XS3W-M42x-40x-R normal or -PR robot cable (sold separately, max 20m) | Cable Length: 2 m
