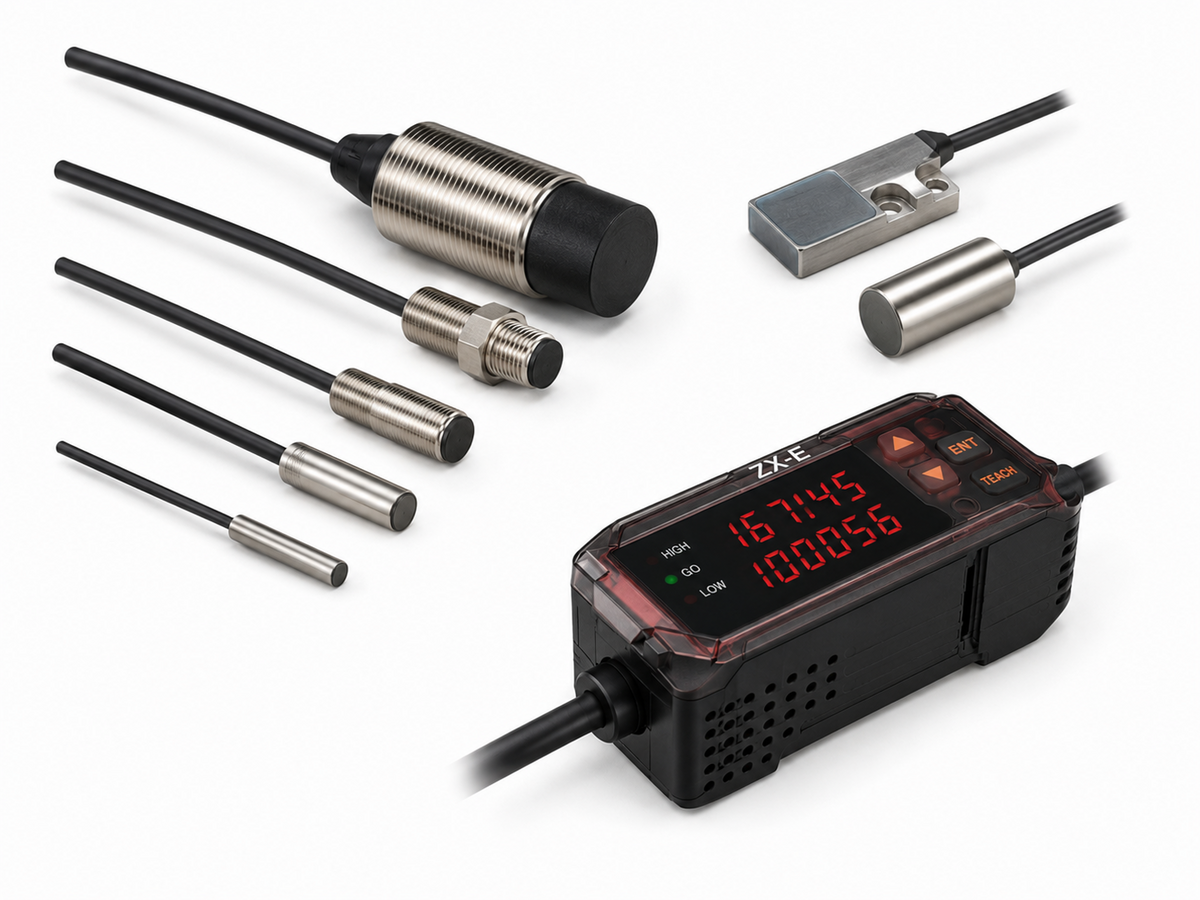

Omron ZX-E Inductive Displacement Sensor Head (Cylindrical / Screw / Flat / Heat-resistant)

Omron ZX-E Inductive Displacement Sensor Head (Cylindrical / Screw / Flat / Heat-resistant)

OMRON ZX-E Series inductive displacement sensor heads for metal workpiece detection.

Key features

  • Resolution 1 μm (avg 4096)
  • Cylindrical: ZX-EDR5T (3mm/0.5mm), ZX-ED01T (5.4mm/1mm), ZX-ED02T (8mm/2mm)
  • Screw: ZX-EM02T (M10/2mm), ZX-EM07MT (M18/7mm)
  • Flat: ZX-EV04T (30×14mm/4mm)
  • Heat-resistant: ZX-EM02HT (M12/2mm)
  • Protective spiral tube variants available with -S suffix

Specifications

Sensing Method Inductive displacement
Resolution 1 μm
Resolution Note Average count 4096
Required Amplifier ZX-EDA11 (NPN) or ZX-EDA41 (PNP) amplifier unit
ZX-EDR5T Inductive displacement head Cylindrical 3 dia. × 18 mm 0.5 mm | Sensing Method: Inductive displacement | Shape: Cylindrical | Dimensions: 3 dia. × 18 mm | Sensing Distance: 0.5 mm | Resolution: 1 μm | Resolution Note: Average count 4096 | Required Amplifier: ZX-EDA11 (NPN) or ZX-EDA41 (PNP) amplifier unit
ZX-ED01T Inductive displacement head Cylindrical 5.4 dia. × 18 mm 1 mm | Sensing Method: Inductive displacement | Shape: Cylindrical | Dimensions: 5.4 dia. × 18 mm | Sensing Distance: 1 mm | Resolution: 1 μm | Resolution Note: Average count 4096 | Required Amplifier: ZX-EDA11 (NPN) or ZX-EDA41 (PNP) amplifier unit | Protective Spiral Tube: Protective Spiral Tube model: add '-S' suffix (e.g. ZX-ED01T-S)
ZX-ED02T Inductive displacement head Cylindrical 8 dia. × 22 mm 2 mm | Sensing Method: Inductive displacement | Shape: Cylindrical | Dimensions: 8 dia. × 22 mm | Sensing Distance: 2 mm | Resolution: 1 μm | Resolution Note: Average count 4096 | Required Amplifier: ZX-EDA11 (NPN) or ZX-EDA41 (PNP) amplifier unit | Protective Spiral Tube: Protective Spiral Tube model: add '-S' suffix (e.g. ZX-ED01T-S)
ZX-EM02T Inductive displacement head Screw-shaped M10 × 22 mm 2 mm | Sensing Method: Inductive displacement | Shape: Screw-shaped | Dimensions: M10 × 22 mm | Sensing Distance: 2 mm | Resolution: 1 μm | Resolution Note: Average count 4096 | Required Amplifier: ZX-EDA11 (NPN) or ZX-EDA41 (PNP) amplifier unit | Protective Spiral Tube: Protective Spiral Tube model: add '-S' suffix (e.g. ZX-ED01T-S)
ZX-EM07MT Inductive displacement head Screw-shaped M18 × 46.3 mm 7 mm | Sensing Method: Inductive displacement | Shape: Screw-shaped | Dimensions: M18 × 46.3 mm | Sensing Distance: 7 mm | Resolution: 1 μm | Resolution Note: Average count 4096 | Required Amplifier: ZX-EDA11 (NPN) or ZX-EDA41 (PNP) amplifier unit | Protective Spiral Tube: Protective Spiral Tube model: order as ZX-EM07M-S
ZX-EV04T Inductive displacement head Flat 30 × 14 × 4.8 mm 4 mm | Sensing Method: Inductive displacement | Shape: Flat | Dimensions: 30 × 14 × 4.8 mm | Sensing Distance: 4 mm | Resolution: 1 μm | Resolution Note: Average count 4096 | Required Amplifier: ZX-EDA11 (NPN) or ZX-EDA41 (PNP) amplifier unit | Protective Spiral Tube: Protective Spiral Tube model: add '-S' suffix (e.g. ZX-ED01T-S) | Note: Use ZX-EDA amplifier unit version 1.200 or later
ZX-EM02HT Inductive displacement head Heat-resistant cylindrical M12 × 22 mm 2 mm | Sensing Method: Inductive displacement | Shape: Heat-resistant cylindrical | Dimensions: M12 × 22 mm | Sensing Distance: 2 mm | Resolution: 1 μm | Resolution Note: Average count 4096 | Required Amplifier: ZX-EDA11 (NPN) or ZX-EDA41 (PNP) amplifier unit | Note: Use ZX-EDA amplifier unit version 1.300 or later; heat-resistant
DisplacementOmron
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron ZX-E Inductive Displacement Sensor Head (Cylindrical / Screw / Flat / Heat-resistant)

Brand Omron·Displacement

Available part numbers (7)

ZX-EDR5T, ZX-ED01T, ZX-ED02T, ZX-EM02T, ZX-EM07MT, ZX-EV04T, ZX-EM02HT

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ZX-EDR5TInductive displacement head Cylindrical 3 dia. × 18 mm 0.5 mm | Sensing Method: Inductive displacement | Shape: Cylindrical | Dimensions: 3 dia. × 18 mm | Sensing Distance: 0.5 mm | Resolution: 1 μm | Resolution Note: Average count 4096 | Required Amplifier: ZX-EDA11 (NPN) or ZX-EDA41 (PNP) amplifier unit
ZX-ED01TInductive displacement head Cylindrical 5.4 dia. × 18 mm 1 mm | Sensing Method: Inductive displacement | Shape: Cylindrical | Dimensions: 5.4 dia. × 18 mm | Sensing Distance: 1 mm | Resolution: 1 μm | Resolution Note: Average count 4096 | Required Amplifier: ZX-EDA11 (NPN) or ZX-EDA41 (PNP) amplifier unit | Protective Spiral Tube: Protective Spiral Tube model: add '-S' suffix (e.g. ZX-ED01T-S)
ZX-ED02TInductive displacement head Cylindrical 8 dia. × 22 mm 2 mm | Sensing Method: Inductive displacement | Shape: Cylindrical | Dimensions: 8 dia. × 22 mm | Sensing Distance: 2 mm | Resolution: 1 μm | Resolution Note: Average count 4096 | Required Amplifier: ZX-EDA11 (NPN) or ZX-EDA41 (PNP) amplifier unit | Protective Spiral Tube: Protective Spiral Tube model: add '-S' suffix (e.g. ZX-ED01T-S)
ZX-EM02TInductive displacement head Screw-shaped M10 × 22 mm 2 mm | Sensing Method: Inductive displacement | Shape: Screw-shaped | Dimensions: M10 × 22 mm | Sensing Distance: 2 mm | Resolution: 1 μm | Resolution Note: Average count 4096 | Required Amplifier: ZX-EDA11 (NPN) or ZX-EDA41 (PNP) amplifier unit | Protective Spiral Tube: Protective Spiral Tube model: add '-S' suffix (e.g. ZX-ED01T-S)
ZX-EM07MTInductive displacement head Screw-shaped M18 × 46.3 mm 7 mm | Sensing Method: Inductive displacement | Shape: Screw-shaped | Dimensions: M18 × 46.3 mm | Sensing Distance: 7 mm | Resolution: 1 μm | Resolution Note: Average count 4096 | Required Amplifier: ZX-EDA11 (NPN) or ZX-EDA41 (PNP) amplifier unit | Protective Spiral Tube: Protective Spiral Tube model: order as ZX-EM07M-S
ZX-EV04TInductive displacement head Flat 30 × 14 × 4.8 mm 4 mm | Sensing Method: Inductive displacement | Shape: Flat | Dimensions: 30 × 14 × 4.8 mm | Sensing Distance: 4 mm | Resolution: 1 μm | Resolution Note: Average count 4096 | Required Amplifier: ZX-EDA11 (NPN) or ZX-EDA41 (PNP) amplifier unit | Protective Spiral Tube: Protective Spiral Tube model: add '-S' suffix (e.g. ZX-ED01T-S) | Note: Use ZX-EDA amplifier unit version 1.200 or later
ZX-EM02HTInductive displacement head Heat-resistant cylindrical M12 × 22 mm 2 mm | Sensing Method: Inductive displacement | Shape: Heat-resistant cylindrical | Dimensions: M12 × 22 mm | Sensing Distance: 2 mm | Resolution: 1 μm | Resolution Note: Average count 4096 | Required Amplifier: ZX-EDA11 (NPN) or ZX-EDA41 (PNP) amplifier unit | Note: Use ZX-EDA amplifier unit version 1.300 or later; heat-resistant
