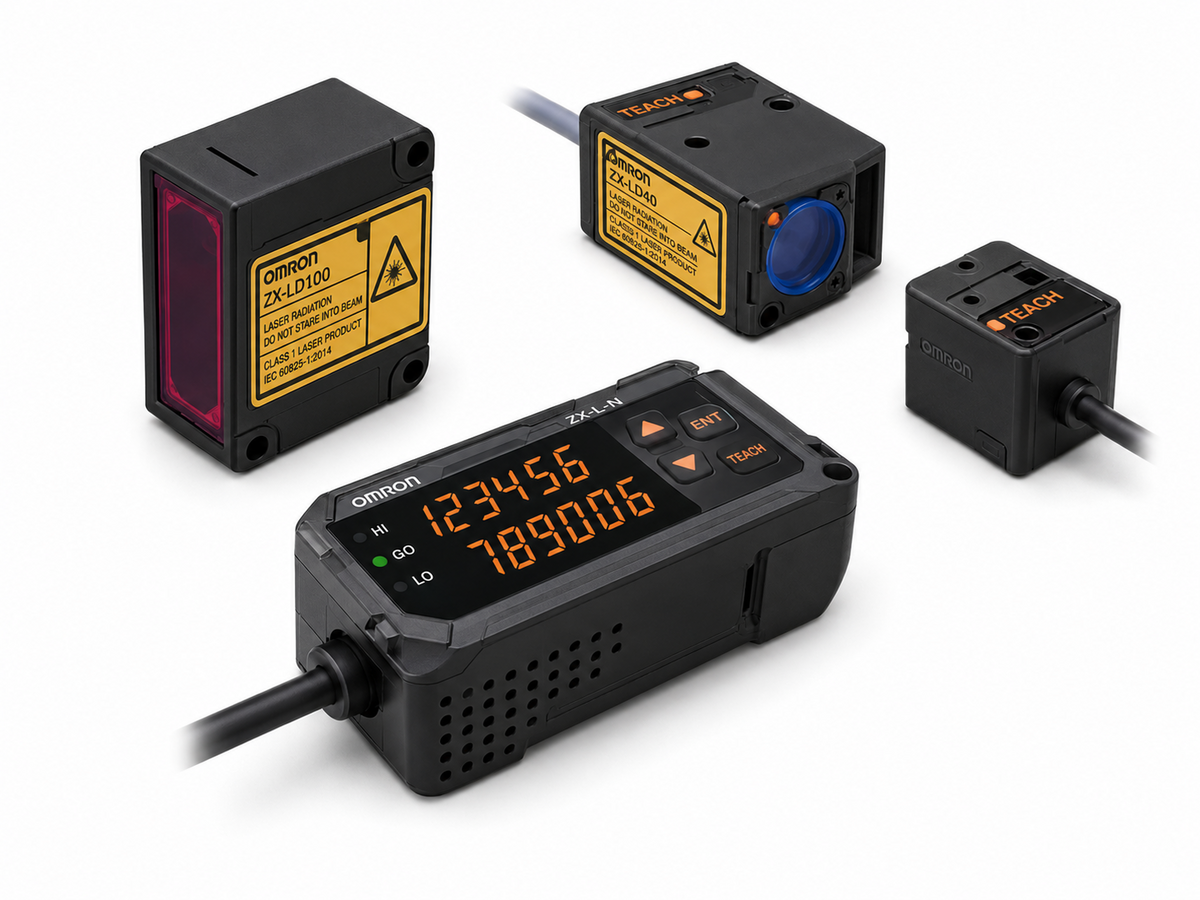

Omron ZX-L-N Laser Displacement Sensor Head Reflective (Diffuse/Regular, Spot/Line beam)

OMRON ZX-L-N Series reflective laser displacement sensor heads.

Key features

Resolution at avg 4096
Diffuse spot: ZX-LD40 (2μm)/LD100 (16μm)/LD300 (300μm)
Diffuse line: ZX-LD40L/100L/300L
Regular spot/line: ZX-LD30V/30VL (0.25μm)
Requires ZX-LDA11-N (NPN) or ZX-LDA41-N (PNP) amplifier

Specifications

Resolution Note	Average count 4096
Required Amplifier	ZX-LDA11-N (NPN) or ZX-LDA41-N (PNP)

ZX-LD40		ZX-L Diffuse-reflective Spot beam 40±10 mm 2 μm \| Optical System: Diffuse-reflective \| Beam Shape: Spot beam \| Sensing Distance: 40±10 mm \| Resolution: 2 μm \| Resolution Note: Average count 4096 \| Required Amplifier: ZX-LDA11-N (NPN) or ZX-LDA41-N (PNP)
ZX-LD100		ZX-L Diffuse-reflective Spot beam 100±40 mm 16 μm \| Optical System: Diffuse-reflective \| Beam Shape: Spot beam \| Sensing Distance: 100±40 mm \| Resolution: 16 μm \| Resolution Note: Average count 4096 \| Required Amplifier: ZX-LDA11-N (NPN) or ZX-LDA41-N (PNP)
ZX-LD300		ZX-L Diffuse-reflective Spot beam 300±200 mm 300 μm \| Optical System: Diffuse-reflective \| Beam Shape: Spot beam \| Sensing Distance: 300±200 mm \| Resolution: 300 μm \| Resolution Note: Average count 4096 \| Required Amplifier: ZX-LDA11-N (NPN) or ZX-LDA41-N (PNP)
ZX-LD40L		ZX-L Diffuse-reflective Line beam 40±10 mm 2 μm \| Optical System: Diffuse-reflective \| Beam Shape: Line beam \| Sensing Distance: 40±10 mm \| Resolution: 2 μm \| Resolution Note: Average count 4096 \| Required Amplifier: ZX-LDA11-N (NPN) or ZX-LDA41-N (PNP)
ZX-LD100L		ZX-L Diffuse-reflective Line beam 100±40 mm 16 μm \| Optical System: Diffuse-reflective \| Beam Shape: Line beam \| Sensing Distance: 100±40 mm \| Resolution: 16 μm \| Resolution Note: Average count 4096 \| Required Amplifier: ZX-LDA11-N (NPN) or ZX-LDA41-N (PNP)
ZX-LD300L		ZX-L Diffuse-reflective Line beam 300±200 mm 300 μm \| Optical System: Diffuse-reflective \| Beam Shape: Line beam \| Sensing Distance: 300±200 mm \| Resolution: 300 μm \| Resolution Note: Average count 4096 \| Required Amplifier: ZX-LDA11-N (NPN) or ZX-LDA41-N (PNP)
ZX-LD30V		ZX-L Regular-reflective Spot beam 30±2 mm 0.25 μm \| Optical System: Regular-reflective \| Beam Shape: Spot beam \| Sensing Distance: 30±2 mm \| Resolution: 0.25 μm \| Resolution Note: Average count 4096 \| Required Amplifier: ZX-LDA11-N (NPN) or ZX-LDA41-N (PNP)
ZX-LD30VL		ZX-L Regular-reflective Line beam 30±2 mm 0.25 μm \| Optical System: Regular-reflective \| Beam Shape: Line beam \| Sensing Distance: 30±2 mm \| Resolution: 0.25 μm \| Resolution Note: Average count 4096 \| Required Amplifier: ZX-LDA11-N (NPN) or ZX-LDA41-N (PNP)

DisplacementOmron

8 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Omron ZX-L-N Laser Displacement Sensor Head Reflective (Diffuse/Regular, Spot/Line beam)

Brand Omron·Displacement

Available part numbers (8)

ZX-LD40, ZX-LD100, ZX-LD300, ZX-LD40L, ZX-LD100L, ZX-LD300L, ZX-LD30V, ZX-LD30VL

How to order

Send the Omron part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	ZX-LD40	ZX-L Diffuse-reflective Spot beam 40±10 mm 2 μm \| Optical System: Diffuse-reflective \| Beam Shape: Spot beam \| Sensing Distance: 40±10 mm \| Resolution: 2 μm \| Resolution Note: Average count 4096 \| Required Amplifier: ZX-LDA11-N (NPN) or ZX-LDA41-N (PNP)
	ZX-LD100	ZX-L Diffuse-reflective Spot beam 100±40 mm 16 μm \| Optical System: Diffuse-reflective \| Beam Shape: Spot beam \| Sensing Distance: 100±40 mm \| Resolution: 16 μm \| Resolution Note: Average count 4096 \| Required Amplifier: ZX-LDA11-N (NPN) or ZX-LDA41-N (PNP)
	ZX-LD300	ZX-L Diffuse-reflective Spot beam 300±200 mm 300 μm \| Optical System: Diffuse-reflective \| Beam Shape: Spot beam \| Sensing Distance: 300±200 mm \| Resolution: 300 μm \| Resolution Note: Average count 4096 \| Required Amplifier: ZX-LDA11-N (NPN) or ZX-LDA41-N (PNP)
	ZX-LD40L	ZX-L Diffuse-reflective Line beam 40±10 mm 2 μm \| Optical System: Diffuse-reflective \| Beam Shape: Line beam \| Sensing Distance: 40±10 mm \| Resolution: 2 μm \| Resolution Note: Average count 4096 \| Required Amplifier: ZX-LDA11-N (NPN) or ZX-LDA41-N (PNP)
	ZX-LD100L	ZX-L Diffuse-reflective Line beam 100±40 mm 16 μm \| Optical System: Diffuse-reflective \| Beam Shape: Line beam \| Sensing Distance: 100±40 mm \| Resolution: 16 μm \| Resolution Note: Average count 4096 \| Required Amplifier: ZX-LDA11-N (NPN) or ZX-LDA41-N (PNP)
	ZX-LD300L	ZX-L Diffuse-reflective Line beam 300±200 mm 300 μm \| Optical System: Diffuse-reflective \| Beam Shape: Line beam \| Sensing Distance: 300±200 mm \| Resolution: 300 μm \| Resolution Note: Average count 4096 \| Required Amplifier: ZX-LDA11-N (NPN) or ZX-LDA41-N (PNP)
	ZX-LD30V	ZX-L Regular-reflective Spot beam 30±2 mm 0.25 μm \| Optical System: Regular-reflective \| Beam Shape: Spot beam \| Sensing Distance: 30±2 mm \| Resolution: 0.25 μm \| Resolution Note: Average count 4096 \| Required Amplifier: ZX-LDA11-N (NPN) or ZX-LDA41-N (PNP)
	ZX-LD30VL	ZX-L Regular-reflective Line beam 30±2 mm 0.25 μm \| Optical System: Regular-reflective \| Beam Shape: Line beam \| Sensing Distance: 30±2 mm \| Resolution: 0.25 μm \| Resolution Note: Average count 4096 \| Required Amplifier: ZX-LDA11-N (NPN) or ZX-LDA41-N (PNP)

Need a different model, or a part not listed here? Send us your parts list →
