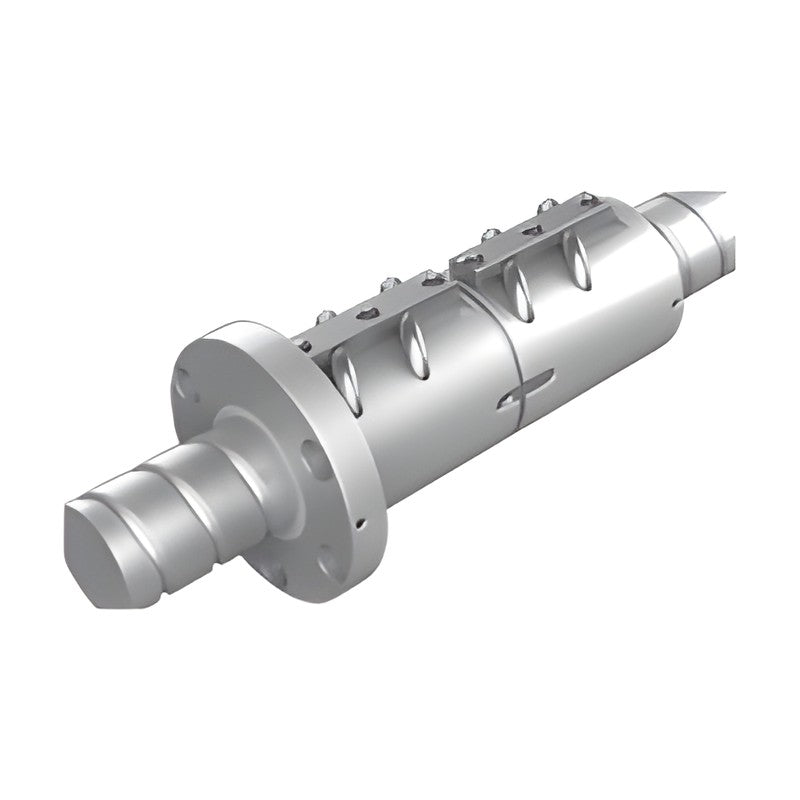

PMI FDVC Ground Ball Screws, Protruding Tube, Double Flanged Nut

PMI FDVC precision ground ball screws: external recirculation (protruding tube), double nut, flanged. Each row is a screw size / nut configuration from the catalogue dimension table.

Key features

External recirculation with return tubes protruding from the nut
Precision ground screw shaft and nut with gothic-arch ball grooves
Lead accuracy graded per JIS B 1192
Preload by double nut, oversize balls or lead offset depending on nut type
Screw shaft length, end machining and accuracy grade specified at order

Specifications

Series	FDVC
Nut type	External recirculation (protruding tube), double nut, flanged
Screw OD range	16-80 mm
Accuracy	Ground, JIS B 1192 grades
Load ratings	Ca dynamic (10^6 rev), Co static, kgf
Ordering	Thread length, overall length and lead accuracy added at order
Available sizes (OD x lead, mm)	16x5, 20x5, 20x6, 25x5, 25x6, 25x10, 28x5, 28x6, 32x5, 32x6, 32x8, 32x10, 36x6, 36x10, 40x5, 40x6, 40x8, 40x10, 45x10, 45x12, 50x5, 50x6, 50x8, 50x10, 50x12, 55x10, 63x10, 63x12, 63x16, 80x10, 80x12, 80x16
Supply	Made to order; specify OD, lead, ball dia, circuits, accuracy grade and length
Source	PMI Ballscrew / Linear Guideway / Mono Stage General Catalog (Section A), p. 168-171
