PMI FDWC Standard Ground Ball Screws, Double Nut, Stock Lengths

PMI FDWC Standard Ground Ball Screws, Double Nut, Stock Lengths

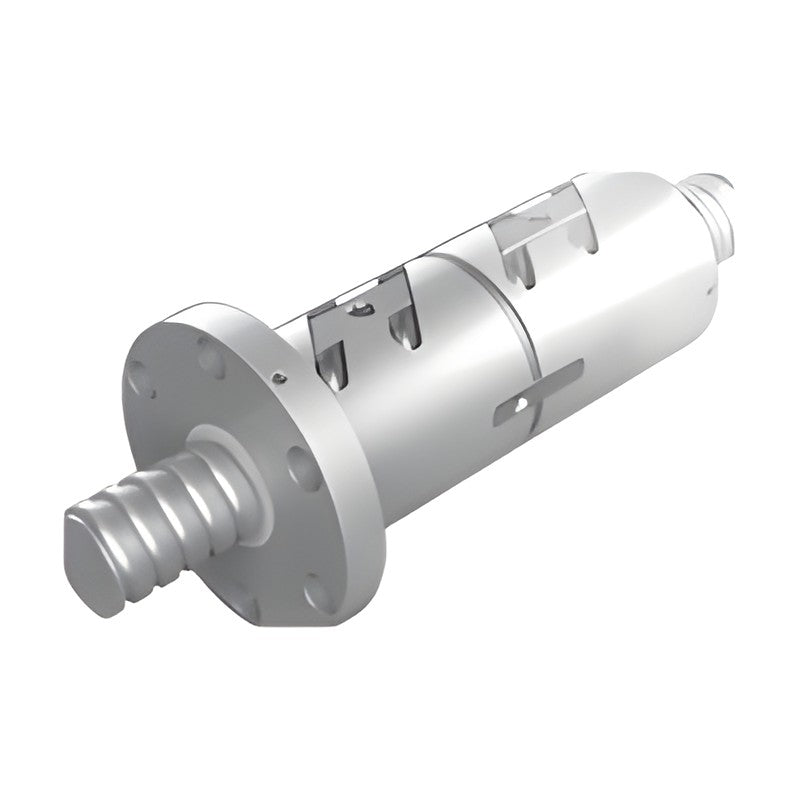

PMI standard precision ground ball screws (external recirculation, double nut, flanged) supplied as complete screw assemblies in fixed stock lengths with machined ends; the model number encodes size, nut, lengths and lead accuracy.

Key features

  • Complete assembly: ground screw shaft with machined ends and preassembled nut
  • Fixed stock lengths for short delivery
  • Wipers fitted on both nut ends
  • Lead accuracy grade and lead deviation printed per model
  • Right-hand single-start thread

Specifications

Series FDWC
Nut type External recirculation, double nut, flanged
Accuracy grades C5
Thread Single start, right hand
Load ratings kgf
Source PMI Ballscrew / Linear Guideway / Mono Stage General Catalog (Section A), p. 239-242
1R32-10B2-FDWC-380-659-0.018 Screw OD x lead: 32 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 4660 / 10880 kgf | Thread / overall L: 380 / 659 mm | Grade: C5
1R32-10B2-FDWC-480-759-0.018 Screw OD x lead: 32 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 4660 / 10880 kgf | Thread / overall L: 480 / 759 mm | Grade: C5
1R32-10B2-FDWC-580-859-0.018 Screw OD x lead: 32 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 4660 / 10880 kgf | Thread / overall L: 580 / 859 mm | Grade: C5
1R32-10B2-FDWC-680-959-0.018 Screw OD x lead: 32 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 4660 / 10880 kgf | Thread / overall L: 680 / 959 mm | Grade: C5
1R32-10B2-FDWC-780-1059-0.018 Screw OD x lead: 32 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 4660 / 10880 kgf | Thread / overall L: 780 / 1059 mm | Grade: C5
1R32-10B2-FDWC-980-1259-0.018 Screw OD x lead: 32 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 4660 / 10880 kgf | Thread / overall L: 980 / 1259 mm | Grade: C5
1R32-10B2-FDWC-1180-1459-0.018 Screw OD x lead: 32 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 4660 / 10880 kgf | Thread / overall L: 1180 / 1459 mm | Grade: C5
1R32-10B2-FDWC-1480-1759-0.018 Screw OD x lead: 32 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 4660 / 10880 kgf | Thread / overall L: 1480 / 1759 mm | Grade: C5
1R32-10B2-FDWC-1780-2059-0.018 Screw OD x lead: 32 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 4660 / 10880 kgf | Thread / overall L: 1780 / 2059 mm | Grade: C5
1R36-10B2-1FDWC-480-769-0.018 Screw OD x lead: 36 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 4930 / 12360 kgf | Thread / overall L: 480 / 769 mm | Grade: C5
1R36-10B2-1FDWC-680-969-0.018 Screw OD x lead: 36 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 4930 / 12360 kgf | Thread / overall L: 680 / 969 mm | Grade: C5
1R36-10B2-1FDWC-980-1269-0.018 Screw OD x lead: 36 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 4930 / 12360 kgf | Thread / overall L: 980 / 1269 mm | Grade: C5
1R36-10B2-1FDWC-1380-1669-0.018 Screw OD x lead: 36 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 4930 / 12360 kgf | Thread / overall L: 1380 / 1669 mm | Grade: C5
1R36-10B2-1FDWC-1780-2069-0.018 Screw OD x lead: 36 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 4930 / 12360 kgf | Thread / overall L: 1780 / 2069 mm | Grade: C5
1R40-10B2-FDWC-480-769-0.018 Screw OD x lead: 40 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 5220 / 13900 kgf | Thread / overall L: 480 / 769 mm | Grade: C5
1R40-10B2-FDWC-580-869-0.018 Screw OD x lead: 40 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 5220 / 13900 kgf | Thread / overall L: 580 / 869 mm | Grade: C5
1R40-10B2-FDWC-680-969-0.018 Screw OD x lead: 40 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 5220 / 13900 kgf | Thread / overall L: 680 / 969 mm | Grade: C5
1R40-10B2-FDWC-780-1069-0.018 Screw OD x lead: 40 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 5220 / 13900 kgf | Thread / overall L: 780 / 1069 mm | Grade: C5
1R40-10B2-FDWC-980-1269-0.018 Screw OD x lead: 40 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 5220 / 13900 kgf | Thread / overall L: 980 / 1269 mm | Grade: C5
1R40-10B2-FDWC-1180-1469-0.018 Screw OD x lead: 40 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 5220 / 13900 kgf | Thread / overall L: 1180 / 1469 mm | Grade: C5
1R40-10B2-FDWC-1380-1669-0.018 Screw OD x lead: 40 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 5220 / 13900 kgf | Thread / overall L: 1380 / 1669 mm | Grade: C5
1R40-10B2-FDWC-1580-1869-0.018 Screw OD x lead: 40 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 5220 / 13900 kgf | Thread / overall L: 1580 / 1869 mm | Grade: C5
1R40-10B2-FDWC-1780-2069-0.018 Screw OD x lead: 40 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 5220 / 13900 kgf | Thread / overall L: 1780 / 2069 mm | Grade: C5
1R40-10B2-FDWC-2380-2269-0.018 Screw OD x lead: 40 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 5220 / 13900 kgf | Thread / overall L: 2380 / 2269 mm | Grade: C5
1R40-12B2-FDWC-680-969-0.018 Screw OD x lead: 40 x 12 mm | Ball dia: 7.144 mm | Ca / Co: 6170 / 15700 kgf | Thread / overall L: 680 / 969 mm | Grade: C5
1R40-12B2-FDWC-980-1269-0.018 Screw OD x lead: 40 x 12 mm | Ball dia: 7.144 mm | Ca / Co: 6170 / 15700 kgf | Thread / overall L: 980 / 1269 mm | Grade: C5
1R40-12B2-FDWC-1380-1669-0.018 Screw OD x lead: 40 x 12 mm | Ball dia: 7.144 mm | Ca / Co: 6170 / 15700 kgf | Thread / overall L: 1380 / 1669 mm | Grade: C5
1R40-12B2-FDWC-1780-2069-0.018 Screw OD x lead: 40 x 12 mm | Ball dia: 7.144 mm | Ca / Co: 6170 / 15700 kgf | Thread / overall L: 1780 / 2069 mm | Grade: C5
1R40-12B2-FDWC-2480-2769-0.018 Screw OD x lead: 40 x 12 mm | Ball dia: 7.144 mm | Ca / Co: 6170 / 15700 kgf | Thread / overall L: 2480 / 2769 mm | Grade: C5
Ball ScrewsPMI
29 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

PMI FDWC Standard Ground Ball Screws, Double Nut, Stock Lengths

Brand PMI·Ball Screws

Available part numbers (29)

1R32-10B2-FDWC-380-659-0.018, 1R32-10B2-FDWC-480-759-0.018, 1R32-10B2-FDWC-580-859-0.018, 1R32-10B2-FDWC-680-959-0.018, 1R32-10B2-FDWC-780-1059-0.018, 1R32-10B2-FDWC-980-1259-0.018, 1R32-10B2-FDWC-1180-1459-0.018, 1R32-10B2-FDWC-1480-1759-0.018, 1R32-10B2-FDWC-1780-2059-0.018, 1R36-10B2-1FDWC-480-769-0.018 + 19 more — see full table ↓
