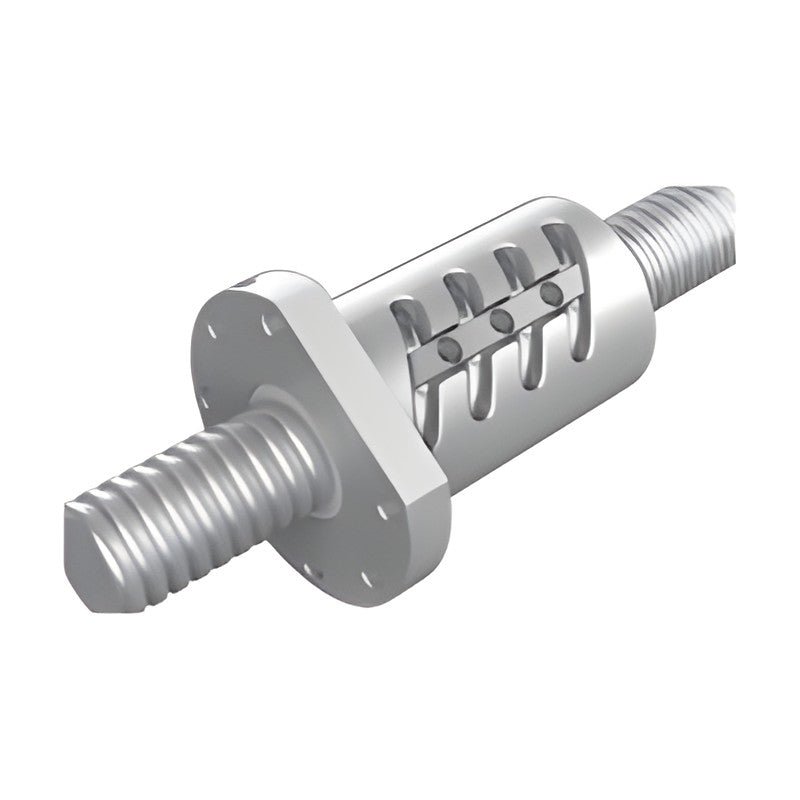

PMI FOWC Standard Ground Ball Screws, Offset Preload, Stock

PMI FOWC Standard Ground Ball Screws, Offset Preload, Stock

PMI standard precision ground ball screws (external recirculation, lead-offset preload nut) supplied as complete screw assemblies in fixed stock lengths with machined ends; the model number encodes size, nut, lengths and lead accuracy.

Key features

  • Complete assembly: ground screw shaft with machined ends and preassembled nut
  • Fixed stock lengths for short delivery
  • Wipers fitted on both nut ends
  • Lead accuracy grade and lead deviation printed per model
  • Right-hand single-start thread

Specifications

Series FOWC
Nut type External recirculation, lead-offset preload nut
Accuracy grades C5
Thread Single start, right hand
Load ratings kgf
Source PMI Ballscrew / Linear Guideway / Mono Stage General Catalog (Section A), p. 228-238
1R28-05B1-FOWC-270-445-0.018 Screw OD x lead: 28 x 5 mm | Ball dia: 3.175 mm | Ca / Co: 1720 / 4940 kgf | Thread / overall L: 270 / 445 mm | Grade: C5
1R28-05B1-FOWC-370-545-0.018 Screw OD x lead: 28 x 5 mm | Ball dia: 3.175 mm | Ca / Co: 1720 / 4940 kgf | Thread / overall L: 370 / 545 mm | Grade: C5
1R28-05B1-FOWC-470-645-0.018 Screw OD x lead: 28 x 5 mm | Ball dia: 3.175 mm | Ca / Co: 1720 / 4940 kgf | Thread / overall L: 470 / 645 mm | Grade: C5
1R28-05B1-FOWC-558-733-0.018 Screw OD x lead: 28 x 5 mm | Ball dia: 3.175 mm | Ca / Co: 1720 / 4940 kgf | Thread / overall L: 558 / 733 mm | Grade: C5
1R28-05B1-FOWC-758-933-0.018 Screw OD x lead: 28 x 5 mm | Ball dia: 3.175 mm | Ca / Co: 1720 / 4940 kgf | Thread / overall L: 758 / 933 mm | Grade: C5
1R28-05B1-FOWC-958-1133-0.018 Screw OD x lead: 28 x 5 mm | Ball dia: 3.175 mm | Ca / Co: 1720 / 4940 kgf | Thread / overall L: 958 / 1133 mm | Grade: C5
1R28-05B1-FOWC-1158-1333-0.018 Screw OD x lead: 28 x 5 mm | Ball dia: 3.175 mm | Ca / Co: 1720 / 4940 kgf | Thread / overall L: 1158 / 1333 mm | Grade: C5
1R32-05B1-FOWC-280-529-0.018 Screw OD x lead: 32 x 5 mm | Ball dia: 3.175 mm | Ca / Co: 1830 / 5680 kgf | Thread / overall L: 280 / 529 mm | Grade: C5
1R32-05B1-FOWC-380-629-0.018 Screw OD x lead: 32 x 5 mm | Ball dia: 3.175 mm | Ca / Co: 1830 / 5680 kgf | Thread / overall L: 380 / 629 mm | Grade: C5
1R32-05B1-FOWC-480-729-0.018 Screw OD x lead: 32 x 5 mm | Ball dia: 3.175 mm | Ca / Co: 1830 / 5680 kgf | Thread / overall L: 480 / 729 mm | Grade: C5
1R32-05B1-FOWC-580-829-0.018 Screw OD x lead: 32 x 5 mm | Ball dia: 3.175 mm | Ca / Co: 1830 / 5680 kgf | Thread / overall L: 580 / 829 mm | Grade: C5
1R32-05B1-FOWC-680-929-0.018 Screw OD x lead: 32 x 5 mm | Ball dia: 3.175 mm | Ca / Co: 1830 / 5680 kgf | Thread / overall L: 680 / 929 mm | Grade: C5
1R32-05B1-FOWC-780-1029-0.018 Screw OD x lead: 32 x 5 mm | Ball dia: 3.175 mm | Ca / Co: 1830 / 5680 kgf | Thread / overall L: 780 / 1029 mm | Grade: C5
1R32-05B1-FOWC-980-1229-0.018 Screw OD x lead: 32 x 5 mm | Ball dia: 3.175 mm | Ca / Co: 1830 / 5680 kgf | Thread / overall L: 980 / 1229 mm | Grade: C5
1R32-05B1-FOWC-1180-1429-0.018 Screw OD x lead: 32 x 5 mm | Ball dia: 3.175 mm | Ca / Co: 1830 / 5680 kgf | Thread / overall L: 1180 / 1429 mm | Grade: C5
1R32-05B1-FOWC-1480-1729-0.018 Screw OD x lead: 32 x 5 mm | Ball dia: 3.175 mm | Ca / Co: 1830 / 5680 kgf | Thread / overall L: 1480 / 1729 mm | Grade: C5
1R32-06B1-FOWC-380-629-0.018 Screw OD x lead: 32 x 6 mm | Ball dia: 3.969 mm | Ca / Co: 2410 / 6900 kgf | Thread / overall L: 380 / 629 mm | Grade: C5
1R32-06B1-FOWC-580-829-0.018 Screw OD x lead: 32 x 6 mm | Ball dia: 3.969 mm | Ca / Co: 2410 / 6900 kgf | Thread / overall L: 580 / 829 mm | Grade: C5
1R32-06B1-FOWC-780-1029-0.018 Screw OD x lead: 32 x 6 mm | Ball dia: 3.969 mm | Ca / Co: 2410 / 6900 kgf | Thread / overall L: 780 / 1029 mm | Grade: C5
1R32-06B1-FOWC-980-1229-0.018 Screw OD x lead: 32 x 6 mm | Ball dia: 3.969 mm | Ca / Co: 2410 / 6900 kgf | Thread / overall L: 980 / 1229 mm | Grade: C5
1R32-06B1-FOWC-1180-1429-0.018 Screw OD x lead: 32 x 6 mm | Ball dia: 3.969 mm | Ca / Co: 2410 / 6900 kgf | Thread / overall L: 1180 / 1429 mm | Grade: C5
1R32-06B1-FOWC-1480-1729-0.018 Screw OD x lead: 32 x 6 mm | Ball dia: 3.969 mm | Ca / Co: 2410 / 6900 kgf | Thread / overall L: 1480 / 1729 mm | Grade: C5
1R32-08B1-FOWC-380-629-0.018 Screw OD x lead: 32 x 8 mm | Ball dia: 4.762 mm | Ca / Co: 1720 / 4180 kgf | Thread / overall L: 380 / 629 mm | Grade: C5
1R32-08B1-FOWC-580-829-0.018 Screw OD x lead: 32 x 8 mm | Ball dia: 4.762 mm | Ca / Co: 1720 / 4180 kgf | Thread / overall L: 580 / 829 mm | Grade: C5
1R32-08B1-FOWC-780-1029-0.018 Screw OD x lead: 32 x 8 mm | Ball dia: 4.762 mm | Ca / Co: 1720 / 4180 kgf | Thread / overall L: 780 / 1029 mm | Grade: C5
1R32-08B1-FOWC-980-1229-0.018 Screw OD x lead: 32 x 8 mm | Ball dia: 4.762 mm | Ca / Co: 1720 / 4180 kgf | Thread / overall L: 980 / 1229 mm | Grade: C5
1R32-08B1-FOWC-1480-1729-0.018 Screw OD x lead: 32 x 8 mm | Ball dia: 4.762 mm | Ca / Co: 1720 / 4180 kgf | Thread / overall L: 1480 / 1729 mm | Grade: C5
1R32-10B1-FOWC-380-629-0.018 Screw OD x lead: 32 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 2570 / 5440 kgf | Thread / overall L: 380 / 629 mm | Grade: C5
1R32-10B1-FOWC-480-729-0.018 Screw OD x lead: 32 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 2570 / 5440 kgf | Thread / overall L: 480 / 729 mm | Grade: C5
1R32-10B1-FOWC-580-829-0.018 Screw OD x lead: 32 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 2570 / 5440 kgf | Thread / overall L: 580 / 829 mm | Grade: C5
1R32-10B1-FOWC-680-929-0.018 Screw OD x lead: 32 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 2570 / 5440 kgf | Thread / overall L: 680 / 929 mm | Grade: C5
1R32-10B1-FOWC-780-1029-0.018 Screw OD x lead: 32 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 2570 / 5440 kgf | Thread / overall L: 780 / 1029 mm | Grade: C5
1R32-10B1-FOWC-980-1229-0.018 Screw OD x lead: 32 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 2570 / 5440 kgf | Thread / overall L: 980 / 1229 mm | Grade: C5
1R32-10B1-FOWC-1180-1429-0.018 Screw OD x lead: 32 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 2570 / 5440 kgf | Thread / overall L: 1180 / 1429 mm | Grade: C5
1R32-10B1-FOWC-1480-1729-0.018 Screw OD x lead: 32 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 2570 / 5440 kgf | Thread / overall L: 1480 / 1729 mm | Grade: C5
1R32-10B1-FOWC-1780-2029-0.018 Screw OD x lead: 32 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 2570 / 5440 kgf | Thread / overall L: 1780 / 2029 mm | Grade: C5
1R36-10B1-FOWC-480-739-0.018 Screw OD x lead: 36 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 2720 / 6180 kgf | Thread / overall L: 480 / 739 mm | Grade: C5
1R36-10B1-FOWC-680-939-0.018 Screw OD x lead: 36 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 2720 / 6180 kgf | Thread / overall L: 680 / 939 mm | Grade: C5
1R36-10B1-FOWC-980-1239-0.018 Screw OD x lead: 36 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 2720 / 6180 kgf | Thread / overall L: 980 / 1239 mm | Grade: C5
1R36-10B1-FOWC-1380-1639-0.018 Screw OD x lead: 36 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 2720 / 6180 kgf | Thread / overall L: 1380 / 1639 mm | Grade: C5
1R36-10B1-FOWC-1780-2039-0.018 Screw OD x lead: 36 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 2720 / 6180 kgf | Thread / overall L: 1780 / 2039 mm | Grade: C5
1R40-8B2-FOWC-380-639-0.018 Screw OD x lead: 40 x 8 mm | Ball dia: 4.762 mm | Ca / Co: 3450 / 10540 kgf | Thread / overall L: 380 / 639 mm | Grade: C5
1R40-8B2-FOWC-580-839-0.018 Screw OD x lead: 40 x 8 mm | Ball dia: 4.762 mm | Ca / Co: 3450 / 10540 kgf | Thread / overall L: 580 / 839 mm | Grade: C5
1R40-8B2-FOWC-780-1039-0.018 Screw OD x lead: 40 x 8 mm | Ball dia: 4.762 mm | Ca / Co: 3450 / 10540 kgf | Thread / overall L: 780 / 1039 mm | Grade: C5
1R40-8B2-FOWC-980-1239-0.018 Screw OD x lead: 40 x 8 mm | Ball dia: 4.762 mm | Ca / Co: 3450 / 10540 kgf | Thread / overall L: 980 / 1239 mm | Grade: C5
1R40-8B2-FOWC-1180-1439-0.018 Screw OD x lead: 40 x 8 mm | Ball dia: 4.762 mm | Ca / Co: 3450 / 10540 kgf | Thread / overall L: 1180 / 1439 mm | Grade: C5
1R40-8B2-FOWC-1580-1839-0.018 Screw OD x lead: 40 x 8 mm | Ball dia: 4.762 mm | Ca / Co: 3450 / 10540 kgf | Thread / overall L: 1580 / 1839 mm | Grade: C5
1R40-10B1-FOWC-480-739-0.018 Screw OD x lead: 40 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 2880 / 6950 kgf | Thread / overall L: 480 / 739 mm | Grade: C5
1R40-10B1-FOWC-580-839-0.018 Screw OD x lead: 40 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 2880 / 6950 kgf | Thread / overall L: 580 / 839 mm | Grade: C5
1R40-10B1-FOWC-680-939-0.018 Screw OD x lead: 40 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 2880 / 6950 kgf | Thread / overall L: 680 / 939 mm | Grade: C5
1R40-10B1-FOWC-780-1039-0.018 Screw OD x lead: 40 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 2880 / 6950 kgf | Thread / overall L: 780 / 1039 mm | Grade: C5
1R40-10B1-FOWC-980-1239-0.018 Screw OD x lead: 40 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 2880 / 6950 kgf | Thread / overall L: 980 / 1239 mm | Grade: C5
1R40-10B1-FOWC-1180-1439-0.018 Screw OD x lead: 40 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 2880 / 6950 kgf | Thread / overall L: 1180 / 1439 mm | Grade: C5
1R40-10B1-FOWC-1380-1639-0.018 Screw OD x lead: 40 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 2880 / 6950 kgf | Thread / overall L: 1380 / 1639 mm | Grade: C5
1R40-10B1-FOWC-1580-1839-0.018 Screw OD x lead: 40 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 2880 / 6950 kgf | Thread / overall L: 1580 / 1839 mm | Grade: C5
1R40-10B1-FOWC-1780-2039-0.018 Screw OD x lead: 40 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 2880 / 6950 kgf | Thread / overall L: 1780 / 2039 mm | Grade: C5
1R40-10B1-FOWC-2380-2639-0.018 Screw OD x lead: 40 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 2880 / 6950 kgf | Thread / overall L: 2380 / 2639 mm | Grade: C5
1R45-10B1-1FOWC-680-947-0.018 Screw OD x lead: 45 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 3020 / 7850 kgf | Thread / overall L: 680 / 947 mm | Grade: C5
1R45-10B1-1FOWC-980-1247-0.018 Screw OD x lead: 45 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 3020 / 7850 kgf | Thread / overall L: 980 / 1247 mm | Grade: C5
1R45-10B1-1FOWC-1380-1647-0.018 Screw OD x lead: 45 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 3020 / 7850 kgf | Thread / overall L: 1380 / 1647 mm | Grade: C5
1R45-10B1-1FOWC-1780-2047-0.018 Screw OD x lead: 45 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 3020 / 7850 kgf | Thread / overall L: 1780 / 2047 mm | Grade: C5
1R45-10B1-1FOWC-2480-2747-0.018 Screw OD x lead: 45 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 3020 / 7850 kgf | Thread / overall L: 2480 / 2747 mm | Grade: C5
1R50-10B1-FOWC-580-892-0.018 Screw OD x lead: 50 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 3190 / 8710 kgf | Thread / overall L: 580 / 892 mm | Grade: C5
1R50-10B1-FOWC-780-1092-0.018 Screw OD x lead: 50 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 3190 / 8710 kgf | Thread / overall L: 780 / 1092 mm | Grade: C5
1R50-10B1-FOWC-980-1292-0.018 Screw OD x lead: 50 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 3190 / 8710 kgf | Thread / overall L: 980 / 1292 mm | Grade: C5
1R50-10B1-FOWC-1180-1492-0.018 Screw OD x lead: 50 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 3190 / 8710 kgf | Thread / overall L: 1180 / 1492 mm | Grade: C5
1R50-10B1-FOWC-1480-1792-0.018 Screw OD x lead: 50 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 3190 / 8710 kgf | Thread / overall L: 1480 / 1792 mm | Grade: C5
1R50-10B1-FOWC-1980-2292-0.018 Screw OD x lead: 50 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 3190 / 8710 kgf | Thread / overall L: 1980 / 2292 mm | Grade: C5
1R50-10B1-FOWC-2580-2892-0.018 Screw OD x lead: 50 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 3190 / 8710 kgf | Thread / overall L: 2580 / 2892 mm | Grade: C5
1R50-10B2-FOWC-580-892-0.018 Screw OD x lead: 50 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 5790 / 17420 kgf | Thread / overall L: 580 / 892 mm | Grade: C5
1R50-10B2-FOWC-780-1092-0.018 Screw OD x lead: 50 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 5790 / 17420 kgf | Thread / overall L: 780 / 1092 mm | Grade: C5
1R50-10B2-FOWC-980-1292-0.018 Screw OD x lead: 50 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 5790 / 17420 kgf | Thread / overall L: 980 / 1292 mm | Grade: C5
1R50-10B2-FOWC-1180-1492-0.018 Screw OD x lead: 50 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 5790 / 17420 kgf | Thread / overall L: 1180 / 1492 mm | Grade: C5
1R50-10B2-FOWC-1480-1792-0.018 Screw OD x lead: 50 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 5790 / 17420 kgf | Thread / overall L: 1480 / 1792 mm | Grade: C5
1R50-10B2-FOWC-1980-2292-0.018 Screw OD x lead: 50 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 5790 / 17420 kgf | Thread / overall L: 1980 / 2292 mm | Grade: C5
1R50-10B2-FOWC-2580-2892-0.018 Screw OD x lead: 50 x 10 mm | Ball dia: 6.35 mm | Ca / Co: 5790 / 17420 kgf | Thread / overall L: 2580 / 2892 mm | Grade: C5
Ball ScrewsPMI
76 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

PMI FOWC Standard Ground Ball Screws, Offset Preload, Stock

Brand PMI·Ball Screws

Available part numbers (76)

1R28-05B1-FOWC-270-445-0.018, 1R28-05B1-FOWC-370-545-0.018, 1R28-05B1-FOWC-470-645-0.018, 1R28-05B1-FOWC-558-733-0.018, 1R28-05B1-FOWC-758-933-0.018, 1R28-05B1-FOWC-958-1133-0.018, 1R28-05B1-FOWC-1158-1333-0.018, 1R32-05B1-FOWC-280-529-0.018, 1R32-05B1-FOWC-380-629-0.018, 1R32-05B1-FOWC-480-729-0.018 + 66 more — see full table ↓

How to order

Send the PMI part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
