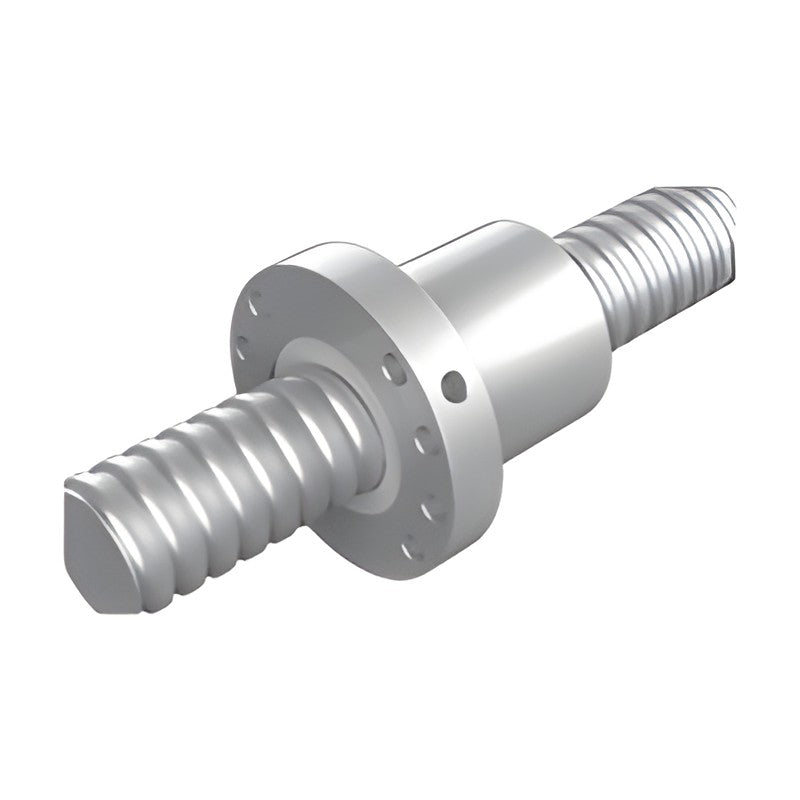

PMI FSDC Ground Ball Screws, End Deflector, Single Flanged Nut

PMI FSDC precision ground ball screws: end deflector, single nut, flanged. Each row is a screw size / nut configuration from the catalogue dimension table.

Key features

End-deflector recirculation suits high-lead, high-speed operation with low noise
Precision ground screw shaft and nut with gothic-arch ball grooves
Lead accuracy graded per JIS B 1192
Preload by double nut, oversize balls or lead offset depending on nut type
Screw shaft length, end machining and accuracy grade specified at order

Specifications

Series	FSDC
Nut type	End deflector, single nut, flanged
Screw OD range	12-80 mm
Accuracy	Ground, JIS B 1192 grades
Load ratings	Ca dynamic (10^6 rev), Co static, kgf
Ordering	Thread length, overall length and lead accuracy added at order
Available sizes (OD x lead, mm)	12x4, 12x5, 12x10, 12x20, 14x4, 14x5, 15x5, 15x10, 15x20, 16x5, 16x10, 16x16, 20x4, 20x5, 20x6, 20x8, 20x10, 20x20, 25x4, 25x5, 25x6, 25x8, 25x10, 25x12, 25x15, 25x16, 25x20, 25x25, 28x5, 28x6, 28x8, 28x10, 28x12, 28x16, 32x5, 32x6, 32x8, 32x10, 32x12, 32x15, 32x16, 32x20, 32x32, 36x8, 36x10, 36x12, 36x16, 36x20, 36x36, 38x10, 38x12, 38x16, 38x40, 40x5, 40x6, 40x8, 40x10, 40x12, 40x15, 40x16, 40x20, 40x40, 45x8, 45x10, 45x12, 45x16, 45x20, 50x5, 50x8, 50x10, 50x12, 50x16, 50x20, 55x12, 63x10, 63x16, 80x20, 80x25, 80x30
Supply	Made to order; specify OD, lead, ball dia, circuits, accuracy grade and length
Source	PMI Ballscrew / Linear Guideway / Mono Stage General Catalog (Section A), p. 145-148

FSDC MADE-TO-ORDER

Screw OD: 12-80 mm | Lead: 4-40 mm | Sizes: 79
