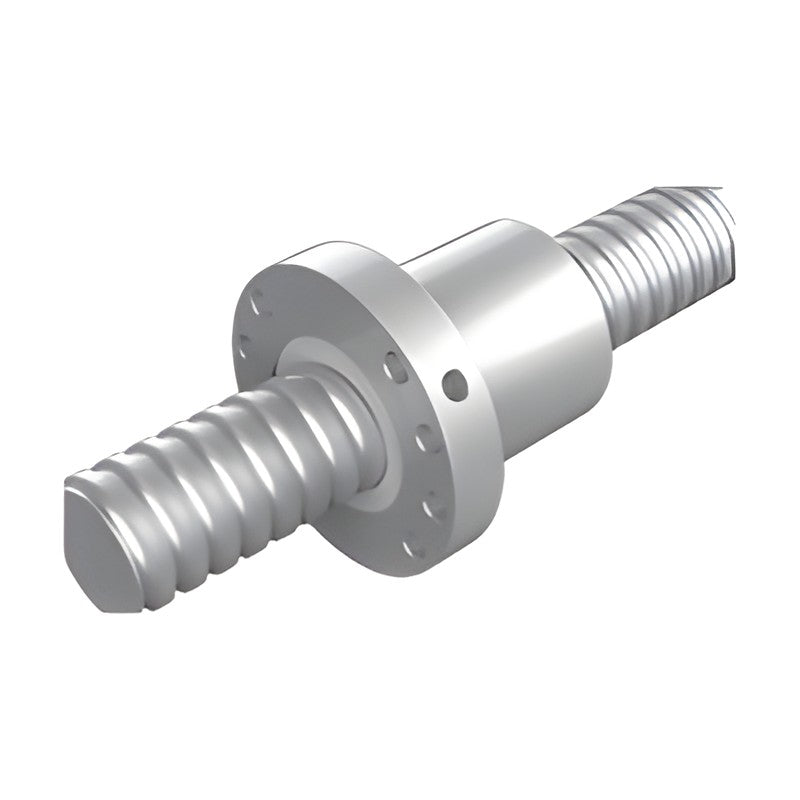

PMI FSDH Ground Ball Screws, Heavy Load, End Deflector Nut

PMI FSDH precision ground ball screws: heavy load, end deflector, single nut, flanged. Each row is a screw size / nut configuration from the catalogue dimension table.

Key features

High-load design with optimized ball contact, ball size and recirculation for large axial loads
Precision ground screw shaft and nut with gothic-arch ball grooves
Lead accuracy graded per JIS B 1192
Preload by double nut, oversize balls or lead offset depending on nut type
Screw shaft length, end machining and accuracy grade specified at order

Specifications

Series	FSDH
Nut type	Heavy load, end deflector, single nut, flanged
Screw OD range	45-100 mm
Accuracy	Ground, JIS B 1192 grades
Load ratings	Ca dynamic (10^6 rev), Co static, kgf
Ordering	Thread length, overall length and lead accuracy added at order
Available sizes (OD x lead, mm)	45x12, 45x16, 45x20, 50x16, 50x20, 50x40, 63x32, 63x40, 80x50, 100x60
Supply	Made to order; specify OD, lead, ball dia, circuits, accuracy grade and length
Source	PMI Ballscrew / Linear Guideway / Mono Stage General Catalog (Section A), p. 197-197

FSDH MADE-TO-ORDER

Screw OD: 45-100 mm | Lead: 12-60 mm | Sizes: 10
