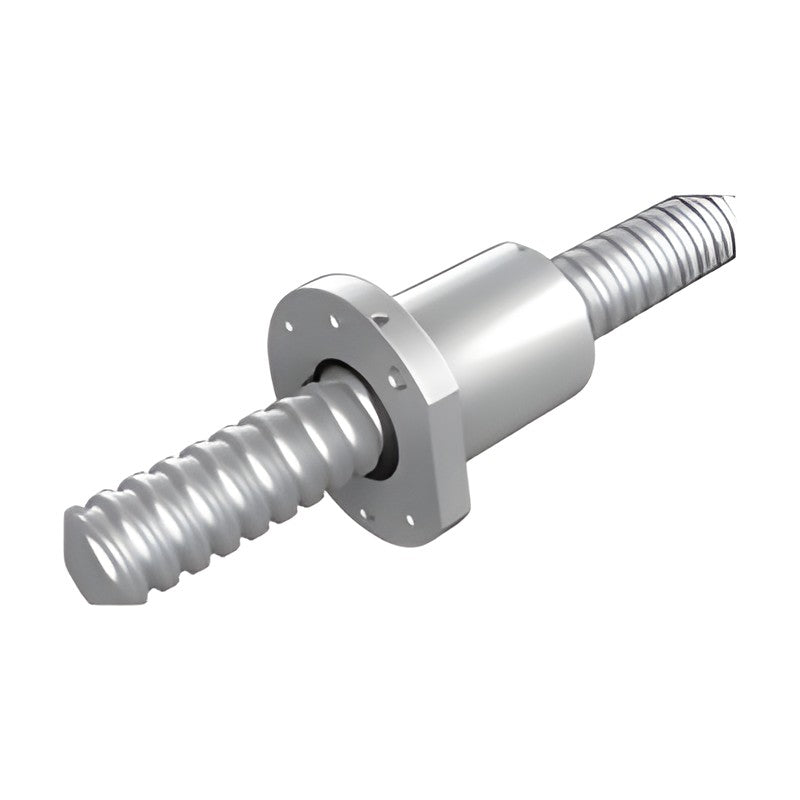

PMI FSDW Rolled Ball Screw Nuts, Flanged, End Deflector

PMI FSDW nuts for rolled ball screws: flanged single nut, end deflector recirculation. The nut model number gives screw OD, lead and effective turns.

Key features

For PMI rolled screw shafts in accuracy grades C7, C8 and C10
Nut model code: type, screw OD, lead and effective turns (circuits x rows)
Rolled shafts made from S55C, induction hardened to HRC 58-62
Nut stiffness values listed at 30 percent of dynamic load
Supplied with a temporary dummy shaft for handling

Specifications

Series	FSDW
Nut type	Flanged single nut, end deflector recirculation
Shaft type	Rolled ball screw
Shaft accuracy	C7, C8, C10
Nut material	SCM420H, carburized HRC 58-62
Load ratings	kgf
Source	PMI Ballscrew / Linear Guideway / Mono Stage General Catalog (Section A), p. 259

FSDW1204-3.0P		Ball dia: 2.381 mm \| Circuits: 3 \| Ca / Co: 410 / 990 kgf \| Nut D x L: 24 x 28 mm
FSDW1404-4.0P		Ball dia: 2.381 mm \| Circuits: 4 \| Ca / Co: 590 / 1610 kgf \| Nut D x L: 26 x 32 mm
FSDW1405-3.0P		Ball dia: 3.175 mm \| Circuits: 3 \| Ca / Co: 550 / 1260 kgf \| Nut D x L: 29 x 32 mm
FSDW1510-3.0P		Ball dia: 3.175 mm \| Circuits: 3 \| Ca / Co: 560 / 1340 kgf \| Nut D x L: 29 x 47 mm
FSDW1605-3.0P		Ball dia: 3.175 mm \| Circuits: 3 \| Ca / Co: 600 / 1460 kgf \| Nut D x L: 29 x 35 mm
FSDW1610-3.0P		Ball dia: 3.175 mm \| Circuits: 3 \| Ca / Co: 580 / 1440 kgf \| Nut D x L: 29 x 50 mm
FSDW2004-3.0P		Ball dia: 2.381 mm \| Circuits: 3 \| Ca / Co: 520 / 1660 kgf \| Nut D x L: 32 x 28 mm
FSDW2005-3.0P		Ball dia: 3.175 mm \| Circuits: 3 \| Ca / Co: 670 / 1860 kgf \| Nut D x L: 36 x 35 mm
FSDW2010-3.0P		Ball dia: 4.762 mm \| Circuits: 3 \| Ca / Co: 1320 / 3390 kgf \| Nut D x L: 40 x 52 mm
FSDW2504-3.0P		Ball dia: 2.381 mm \| Circuits: 3 \| Ca / Co: 580 / 2120 kgf \| Nut D x L: 37 x 28 mm
FSDW2505-3.0P		Ball dia: 3.175 mm \| Circuits: 3 \| Ca / Co: 740 / 2350 kgf \| Nut D x L: 40 x 36 mm
FSDW2505-4.0P		Ball dia: 3.175 mm \| Circuits: 4 \| Ca / Co: 960 / 3190 kgf \| Nut D x L: 40 x 41 mm
FSDW2505-5.0P		Ball dia: 3.175 mm \| Circuits: 5 \| Ca / Co: 1180 / 4030 kgf \| Nut D x L: 40 x 46 mm
FSDW2510-4.0P		Ball dia: 4.762 mm \| Circuits: 4 \| Ca / Co: 1920 / 5700 kgf \| Nut D x L: 45 x 63 mm
FSDW2510-3.0P		Ball dia: 6.350 mm \| Circuits: 3 \| Ca / Co: 2130 / 5570 kgf \| Nut D x L: 51 x 58 mm
FSDW2510-5.0P		Ball dia: 6.350 mm \| Circuits: 5 \| Ca / Co: 3380 / 9550 kgf \| Nut D x L: 51 x 78 mm
FSDW2805-5.0P		Ball dia: 3.175 mm \| Circuits: 5 \| Ca / Co: 1240 / 4530 kgf \| Nut D x L: 43 x 48 mm
FSDW3205-4.0P		Ball dia: 3.175 mm \| Circuits: 4 \| Ca / Co: 1080 / 4130 kgf \| Nut D x L: 50 x 41 mm
FSDW3210-3.0P		Ball dia: 6.350 mm \| Circuits: 3 \| Ca / Co: 2410 / 7020 kgf \| Nut D x L: 57 x 58 mm
FSDW3210-5.0P		Ball dia: 6.350 mm \| Circuits: 5 \| Ca / Co: 3820 / 12030 kgf \| Nut D x L: 57 x 58 mm
FSDW3610-3.0P		Ball dia: 6.350 mm \| Circuits: 3 \| Ca / Co: 2560 / 8250 kgf \| Nut D x L: 70 x 58 mm
FSDW4005-4.0P		Ball dia: 3.175 mm \| Circuits: 4 \| Ca / Co: 1180 / 5200 kgf \| Nut D x L: 60 x 42 mm
FSDW4010-5.0P		Ball dia: 6.350 mm \| Circuits: 5 \| Ca / Co: 4290 / 15290 kgf \| Nut D x L: 65 x 78 mm
FSDW5010-5.0P		Ball dia: 6.350 mm \| Circuits: 5 \| Ca / Co: 4780 / 19360 kgf \| Nut D x L: 75 x 78 mm

Ball ScrewsPMI

24 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

PMI FSDW Rolled Ball Screw Nuts, Flanged, End Deflector

Brand PMI·Ball Screws

Available part numbers (24)

FSDW1204-3.0P, FSDW1404-4.0P, FSDW1405-3.0P, FSDW1510-3.0P, FSDW1605-3.0P, FSDW1610-3.0P, FSDW2004-3.0P, FSDW2005-3.0P, FSDW2010-3.0P, FSDW2504-3.0P + 14 more — see full table ↓

How to order

Send the PMI part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	FSDW1204-3.0P	Ball dia: 2.381 mm \| Circuits: 3 \| Ca / Co: 410 / 990 kgf \| Nut D x L: 24 x 28 mm
	FSDW1404-4.0P	Ball dia: 2.381 mm \| Circuits: 4 \| Ca / Co: 590 / 1610 kgf \| Nut D x L: 26 x 32 mm
	FSDW1405-3.0P	Ball dia: 3.175 mm \| Circuits: 3 \| Ca / Co: 550 / 1260 kgf \| Nut D x L: 29 x 32 mm
	FSDW1510-3.0P	Ball dia: 3.175 mm \| Circuits: 3 \| Ca / Co: 560 / 1340 kgf \| Nut D x L: 29 x 47 mm
	FSDW1605-3.0P	Ball dia: 3.175 mm \| Circuits: 3 \| Ca / Co: 600 / 1460 kgf \| Nut D x L: 29 x 35 mm
	FSDW1610-3.0P	Ball dia: 3.175 mm \| Circuits: 3 \| Ca / Co: 580 / 1440 kgf \| Nut D x L: 29 x 50 mm
	FSDW2004-3.0P	Ball dia: 2.381 mm \| Circuits: 3 \| Ca / Co: 520 / 1660 kgf \| Nut D x L: 32 x 28 mm
	FSDW2005-3.0P	Ball dia: 3.175 mm \| Circuits: 3 \| Ca / Co: 670 / 1860 kgf \| Nut D x L: 36 x 35 mm
	FSDW2010-3.0P	Ball dia: 4.762 mm \| Circuits: 3 \| Ca / Co: 1320 / 3390 kgf \| Nut D x L: 40 x 52 mm
	FSDW2504-3.0P	Ball dia: 2.381 mm \| Circuits: 3 \| Ca / Co: 580 / 2120 kgf \| Nut D x L: 37 x 28 mm
	FSDW2505-3.0P	Ball dia: 3.175 mm \| Circuits: 3 \| Ca / Co: 740 / 2350 kgf \| Nut D x L: 40 x 36 mm
	FSDW2505-4.0P	Ball dia: 3.175 mm \| Circuits: 4 \| Ca / Co: 960 / 3190 kgf \| Nut D x L: 40 x 41 mm
	FSDW2505-5.0P	Ball dia: 3.175 mm \| Circuits: 5 \| Ca / Co: 1180 / 4030 kgf \| Nut D x L: 40 x 46 mm
	FSDW2510-4.0P	Ball dia: 4.762 mm \| Circuits: 4 \| Ca / Co: 1920 / 5700 kgf \| Nut D x L: 45 x 63 mm
	FSDW2510-3.0P	Ball dia: 6.350 mm \| Circuits: 3 \| Ca / Co: 2130 / 5570 kgf \| Nut D x L: 51 x 58 mm
	FSDW2510-5.0P	Ball dia: 6.350 mm \| Circuits: 5 \| Ca / Co: 3380 / 9550 kgf \| Nut D x L: 51 x 78 mm
	FSDW2805-5.0P	Ball dia: 3.175 mm \| Circuits: 5 \| Ca / Co: 1240 / 4530 kgf \| Nut D x L: 43 x 48 mm
	FSDW3205-4.0P	Ball dia: 3.175 mm \| Circuits: 4 \| Ca / Co: 1080 / 4130 kgf \| Nut D x L: 50 x 41 mm
	FSDW3210-3.0P	Ball dia: 6.350 mm \| Circuits: 3 \| Ca / Co: 2410 / 7020 kgf \| Nut D x L: 57 x 58 mm
	FSDW3210-5.0P	Ball dia: 6.350 mm \| Circuits: 5 \| Ca / Co: 3820 / 12030 kgf \| Nut D x L: 57 x 58 mm
	FSDW3610-3.0P	Ball dia: 6.350 mm \| Circuits: 3 \| Ca / Co: 2560 / 8250 kgf \| Nut D x L: 70 x 58 mm
	FSDW4005-4.0P	Ball dia: 3.175 mm \| Circuits: 4 \| Ca / Co: 1180 / 5200 kgf \| Nut D x L: 60 x 42 mm
	FSDW4010-5.0P	Ball dia: 6.350 mm \| Circuits: 5 \| Ca / Co: 4290 / 15290 kgf \| Nut D x L: 65 x 78 mm
	FSDW5010-5.0P	Ball dia: 6.350 mm \| Circuits: 5 \| Ca / Co: 4780 / 19360 kgf \| Nut D x L: 75 x 78 mm
