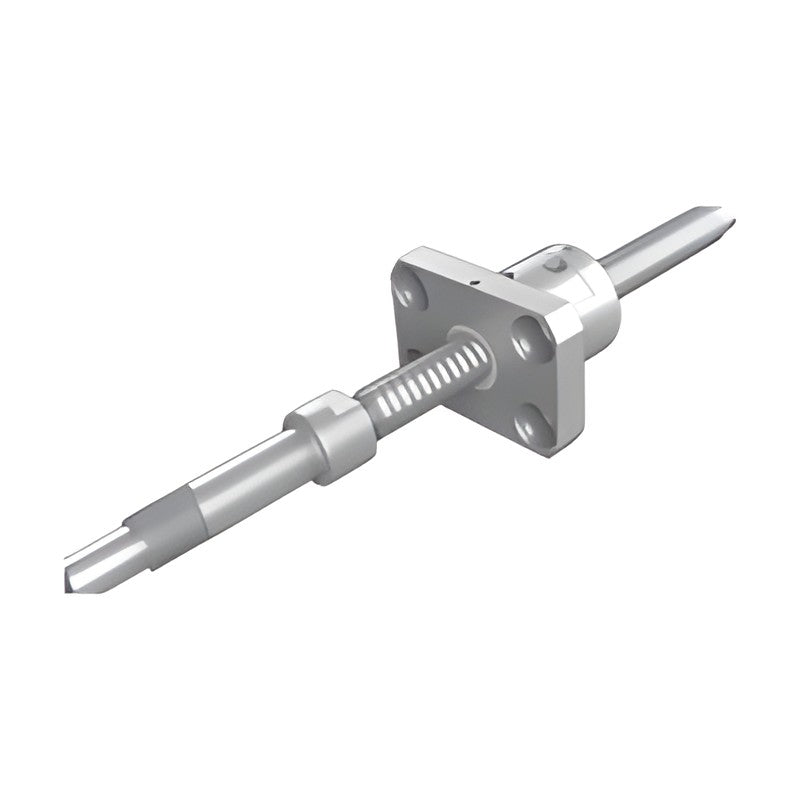

PMI FSMC Miniature Ground Ball Screws, Standard Stock (C3)

PMI FSMC Miniature Ground Ball Screws, Standard Stock (C3)

PMI standard precision ground ball screws (miniature, single nut, flanged) supplied as complete screw assemblies in fixed stock lengths with machined ends; the model number encodes size, nut, lengths and lead accuracy.

Key features

  • Complete assembly: ground screw shaft with machined ends and preassembled nut
  • Fixed stock lengths for short delivery
  • Wipers fitted on both nut ends
  • Lead accuracy grade and lead deviation printed per model
  • Right-hand single-start thread

Specifications

Series FSMC
Nut type Miniature, single nut, flanged
Accuracy grades C3
Thread Single start, right hand
Load ratings kgf
Source PMI Ballscrew / Linear Guideway / Mono Stage General Catalog (Section A), p. 199-207
FSM0401-C3-1R-0085 Screw OD x lead: 4 x 1 mm | Ball dia: 0.8 mm | Ca / Co: 49 / 70 kgf | Thread / overall L: 44 / 85 mm | Grade: C3
FSM0401-C3-1R-0105 Screw OD x lead: 4 x 1 mm | Ball dia: 0.8 mm | Ca / Co: 49 / 70 kgf | Thread / overall L: 64 / 105 mm | Grade: C3
FSM0401-C3-1R-0135 Screw OD x lead: 4 x 1 mm | Ball dia: 0.8 mm | Ca / Co: 49 / 70 kgf | Thread / overall L: 94 / 135 mm | Grade: C3
FSM0601-C3-1R-0105 Screw OD x lead: 6 x 1 mm | Ball dia: 0.8 mm | Ca / Co: 58 / 100 kgf | Thread / overall L: 65 / 105 mm | Grade: C3
FSM0601-C3-1R-0135 Screw OD x lead: 6 x 1 mm | Ball dia: 0.8 mm | Ca / Co: 58 / 100 kgf | Thread / overall L: 95 / 135 mm | Grade: C3
FSM0601-C3-1R-0165 Screw OD x lead: 6 x 1 mm | Ball dia: 0.8 mm | Ca / Co: 58 / 100 kgf | Thread / overall L: 125 / 165 mm | Grade: C3
FSM0801-C3-1R-0138 Screw OD x lead: 8 x 1 mm | Ball dia: 0.8 mm | Ca / Co: 66 / 140 kgf | Thread / overall L: 80 / 138 mm | Grade: C3
FSM0801-C3-1R-0168 Screw OD x lead: 8 x 1 mm | Ball dia: 0.8 mm | Ca / Co: 66 / 140 kgf | Thread / overall L: 110 / 168 mm | Grade: C3
FSM0801-C3-1R-0198 Screw OD x lead: 8 x 1 mm | Ball dia: 0.8 mm | Ca / Co: 66 / 140 kgf | Thread / overall L: 140 / 198 mm | Grade: C3
FSM0801-C3-1R-0248 Screw OD x lead: 8 x 1 mm | Ball dia: 0.8 mm | Ca / Co: 66 / 140 kgf | Thread / overall L: 190 / 248 mm | Grade: C3
FSM1001-C3-1R-0168 Screw OD x lead: 10 x 1 mm | Ball dia: 0.8 mm | Ca / Co: 73 / 180 kgf | Thread / overall L: 110 / 168 mm | Grade: C3
FSM1001-C3-1R-0218 Screw OD x lead: 10 x 1 mm | Ball dia: 0.8 mm | Ca / Co: 73 / 180 kgf | Thread / overall L: 160 / 218 mm | Grade: C3
FSM1001-C3-1R-0268 Screw OD x lead: 10 x 1 mm | Ball dia: 0.8 mm | Ca / Co: 73 / 180 kgf | Thread / overall L: 210 / 268 mm | Grade: C3
FSM1001-C3-1R-0318 Screw OD x lead: 10 x 1 mm | Ball dia: 0.8 mm | Ca / Co: 73 / 180 kgf | Thread / overall L: 260 / 318 mm | Grade: C3
FSM1001-C3-1R-0368 Screw OD x lead: 10 x 1 mm | Ball dia: 0.8 mm | Ca / Co: 73 / 180 kgf | Thread / overall L: 310 / 368 mm | Grade: C3
FSM0602-C3-1R-0105 Screw OD x lead: 6 x 2 mm | Ball dia: 1.588 mm | Ca / Co: 160 / 210 kgf | Thread / overall L: 65 / 105 mm | Grade: C3
FSM0602-C3-1R-0135 Screw OD x lead: 6 x 2 mm | Ball dia: 1.588 mm | Ca / Co: 160 / 210 kgf | Thread / overall L: 95 / 135 mm | Grade: C3
FSM0602-C3-1R-0165 Screw OD x lead: 6 x 2 mm | Ball dia: 1.588 mm | Ca / Co: 160 / 210 kgf | Thread / overall L: 125 / 165 mm | Grade: C3
FSM0802-C3-1R-0138 Screw OD x lead: 8 x 2 mm | Ball dia: 1.588 mm | Ca / Co: 190 / 290 kgf | Thread / overall L: 80 / 138 mm | Grade: C3
FSM0802-C3-1R-0168 Screw OD x lead: 8 x 2 mm | Ball dia: 1.588 mm | Ca / Co: 190 / 290 kgf | Thread / overall L: 110 / 168 mm | Grade: C3
FSM0802-C3-1R-0198 Screw OD x lead: 8 x 2 mm | Ball dia: 1.588 mm | Ca / Co: 190 / 290 kgf | Thread / overall L: 140 / 198 mm | Grade: C3
FSM0802-C3-1R-0248 Screw OD x lead: 8 x 2 mm | Ball dia: 1.588 mm | Ca / Co: 190 / 290 kgf | Thread / overall L: 190 / 248 mm | Grade: C3
FSM1002-C3-1R-0168 Screw OD x lead: 10 x 2 mm | Ball dia: 1.588 mm | Ca / Co: 220 / 370 kgf | Thread / overall L: 110 / 168 mm | Grade: C3
FSM1002-C3-1R-0218 Screw OD x lead: 10 x 2 mm | Ball dia: 1.588 mm | Ca / Co: 220 / 370 kgf | Thread / overall L: 160 / 218 mm | Grade: C3
FSM1002-C3-1R-0268 Screw OD x lead: 10 x 2 mm | Ball dia: 1.588 mm | Ca / Co: 220 / 370 kgf | Thread / overall L: 210 / 268 mm | Grade: C3
FSM1002-C3-1R-0318 Screw OD x lead: 10 x 2 mm | Ball dia: 1.588 mm | Ca / Co: 220 / 370 kgf | Thread / overall L: 260 / 318 mm | Grade: C3
FSM1002-C3-1R-0368 Screw OD x lead: 10 x 2 mm | Ball dia: 1.588 mm | Ca / Co: 220 / 370 kgf | Thread / overall L: 310 / 368 mm | Grade: C3
FSM1202-C3-1R-0180 Screw OD x lead: 12 x 2 mm | Ball dia: 1.588 mm | Ca / Co: 240 / 450 kgf | Thread / overall L: 110 / 180 mm | Grade: C3
FSM1202-C3-1R-0230 Screw OD x lead: 12 x 2 mm | Ball dia: 1.588 mm | Ca / Co: 240 / 450 kgf | Thread / overall L: 160 / 230 mm | Grade: C3
FSM1202-C3-1R-0280 Screw OD x lead: 12 x 2 mm | Ball dia: 1.588 mm | Ca / Co: 240 / 450 kgf | Thread / overall L: 210 / 280 mm | Grade: C3
FSM1202-C3-1R-0330 Screw OD x lead: 12 x 2 mm | Ball dia: 1.588 mm | Ca / Co: 240 / 450 kgf | Thread / overall L: 260 / 330 mm | Grade: C3
FSM1202-C3-1R-0380 Screw OD x lead: 12 x 2 mm | Ball dia: 1.588 mm | Ca / Co: 240 / 450 kgf | Thread / overall L: 310 / 380 mm | Grade: C3
FSM1602-C3-1R-0221 Screw OD x lead: 16 x 2 mm | Ball dia: 1.588 mm | Ca / Co: 360 / 850 kgf | Thread / overall L: 139 / 221 mm | Grade: C3
FSM1602-C3-1R-0271 Screw OD x lead: 16 x 2 mm | Ball dia: 1.588 mm | Ca / Co: 360 / 850 kgf | Thread / overall L: 189 / 271 mm | Grade: C3
FSM1602-C3-1R-0321 Screw OD x lead: 16 x 2 mm | Ball dia: 1.588 mm | Ca / Co: 360 / 850 kgf | Thread / overall L: 239 / 321 mm | Grade: C3
FSM1602-C3-1R-0371 Screw OD x lead: 16 x 2 mm | Ball dia: 1.588 mm | Ca / Co: 360 / 850 kgf | Thread / overall L: 289 / 371 mm | Grade: C3
FSM1602-C3-1R-0471 Screw OD x lead: 16 x 2 mm | Ball dia: 1.588 mm | Ca / Co: 360 / 850 kgf | Thread / overall L: 389 / 471 mm | Grade: C3
Ball ScrewsPMI
37 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

PMI FSMC Miniature Ground Ball Screws, Standard Stock (C3)

Brand PMI·Ball Screws

Available part numbers (37)

FSM0401-C3-1R-0085, FSM0401-C3-1R-0105, FSM0401-C3-1R-0135, FSM0601-C3-1R-0105, FSM0601-C3-1R-0135, FSM0601-C3-1R-0165, FSM0801-C3-1R-0138, FSM0801-C3-1R-0168, FSM0801-C3-1R-0198, FSM0801-C3-1R-0248 + 27 more — see full table ↓

How to order

Send the PMI part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
