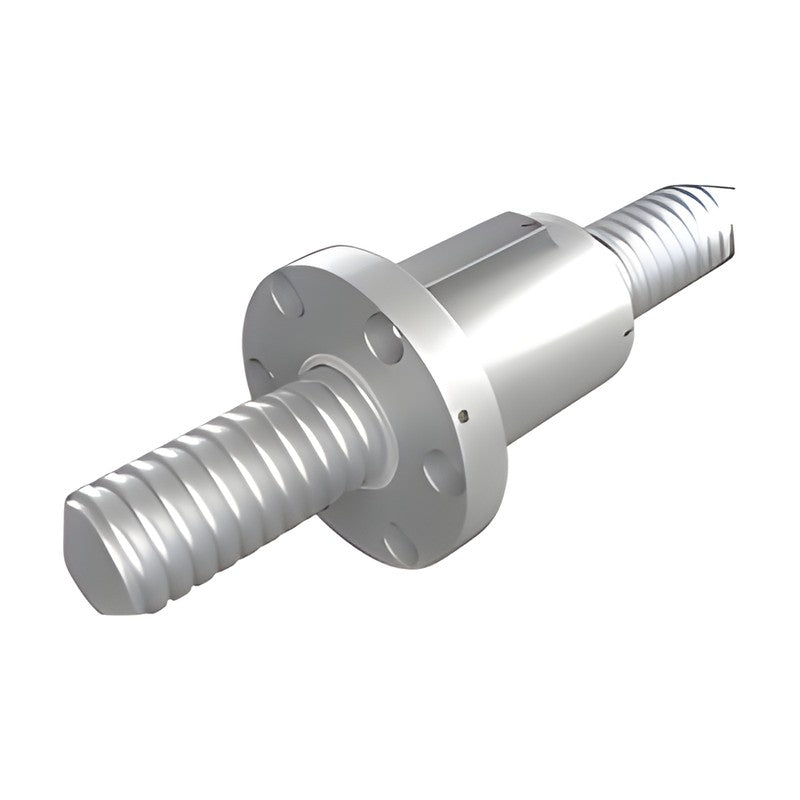

PMI FSVE Ground Ball Screws, High Lead, Protruding Tube Single Nut

PMI FSVE precision ground ball screws: high lead, external (protruding tube), single nut, flanged. Each row is a screw size / nut configuration from the catalogue dimension table.

Key features

High-lead design for high-speed feed in modern machine tools
Precision ground screw shaft and nut with gothic-arch ball grooves
Lead accuracy graded per JIS B 1192
Preload by double nut, oversize balls or lead offset depending on nut type
Screw shaft length, end machining and accuracy grade specified at order

Specifications

Series	FSVE
Nut type	High lead, external (protruding tube), single nut, flanged
Screw OD range	12-100 mm
Accuracy	Ground, JIS B 1192 grades
Load ratings	Ca dynamic (10^6 rev), Co static, kgf
Ordering	Thread length, overall length and lead accuracy added at order
Available sizes (OD x lead, mm)	12x10, 20x10, 20x16, 20x20, 25x16, 25x20, 32x16, 32x20, 36x10, 36x12, 36x16, 36x20, 40x10, 40x12, 40x16, 40x20, 40x40, 50x10, 50x12, 50x16, 50x20, 50x50, 63x10, 63x12, 63x16, 63x20, 80x10, 80x12, 80x16, 80x20, 100x16, 100x20
Supply	Made to order; specify OD, lead, ball dia, circuits, accuracy grade and length
Source	PMI Ballscrew / Linear Guideway / Mono Stage General Catalog (Section A), p. 183-186

FSVE MADE-TO-ORDER

Screw OD: 12-100 mm | Lead: 10-50 mm | Sizes: 32
