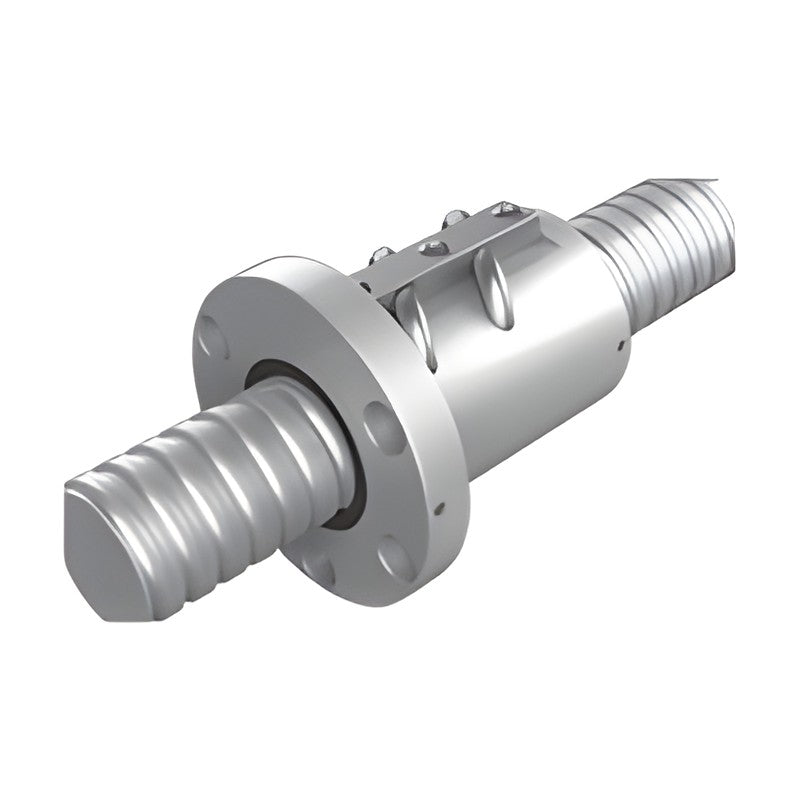

PMI FSVW Rolled Ball Screw Nuts, Flanged, Protruding Tube

PMI FSVW nuts for rolled ball screws: flanged single nut, external recirculation (protruding tube). The nut model number gives screw OD, lead and effective turns.

Key features

For PMI rolled screw shafts in accuracy grades C7, C8 and C10
Nut model code: type, screw OD, lead and effective turns (circuits x rows)
Rolled shafts made from S55C, induction hardened to HRC 58-62
Nut stiffness values listed at 30 percent of dynamic load
Supplied with a temporary dummy shaft for handling

Specifications

Series	FSVW
Nut type	Flanged single nut, external recirculation (protruding tube)
Shaft type	Rolled ball screw
Shaft accuracy	C7, C8, C10
Nut material	SCM420H, carburized HRC 58-62
Load ratings	kgf
Source	PMI Ballscrew / Linear Guideway / Mono Stage General Catalog (Section A), p. 252

FSVW1404-3.5P		Ball dia: 2.381 mm \| Circuits: 3.5x1 \| Ca / Co: 500 / 1100 kgf \| Nut D x L: 25 x 42 mm
FSVW1405-2.5P		Ball dia: 3.175 mm \| Circuits: 2.5x1 \| Ca / Co: 515 / 990 kgf \| Nut D x L: 30 x 43 mm
FSVW1605-2.5P		Ball dia: 3.175 mm \| Circuits: 2.5x1 \| Ca / Co: 550 / 1140 kgf \| Nut D x L: 34 x 43 mm
FSVW2005-2.5P		Ball dia: 3.175 mm \| Circuits: 2.5x1 \| Ca / Co: 625 / 1450 kgf \| Nut D x L: 40 x 43 mm
FSVW2010-2.5P		Ball dia: 4.762 mm \| Circuits: 2.5x1 \| Ca / Co: 1100 / 2200 kgf \| Nut D x L: 40 x 60 mm
FSVW2505-2.5P		Ball dia: 3.175 mm \| Circuits: 2.5x1 \| Ca / Co: 720 / 1830 kgf \| Nut D x L: 42 x 45 mm
FSVW2505-5.0P		Ball dia: 3.175 mm \| Circuits: 2.5x2 \| Ca / Co: 1120 / 3710 kgf \| Nut D x L: 42 x 60 mm
FSVW2510-2.5P		Ball dia: 6.350 mm \| Circuits: 2.5x1 \| Ca / Co: 1720 / 3590 kgf \| Nut D x L: 44 x 68 mm
FSVW2510-5.0P		Ball dia: 6.350 mm \| Circuits: 2.5x2 \| Ca / Co: 3200 / 7170 kgf \| Nut D x L: 44 x 98 mm
FSVW3210-2.5P		Ball dia: 6.350 mm \| Circuits: 2.5x1 \| Ca / Co: 1930 / 4680 kgf \| Nut D x L: 55 x 72 mm
FSVW3210-5.0P		Ball dia: 6.350 mm \| Circuits: 2.5x2 \| Ca / Co: 3130 / 9410 kgf \| Nut D x L: 55 x 101 mm
FSVW3610-2.5P		Ball dia: 6.350 mm \| Circuits: 2.5x1 \| Ca / Co: 1860 / 5400 kgf \| Nut D x L: 70 x 70 mm
FSVW3610-5.0P		Ball dia: 6.350 mm \| Circuits: 2.5x2 \| Ca / Co: 3370 / 10800 kgf \| Nut D x L: 70 x 98 mm
FSVW4010-7.0P		Ball dia: 6.350 mm \| Circuits: 3.5x2 \| Ca / Co: 4450 / 16800 kgf \| Nut D x L: 65 x 123 mm
FSVW5010-7.0P		Ball dia: 6.350 mm \| Circuits: 3.5x2 \| Ca / Co: 4940 / 21000 kgf \| Nut D x L: 80 x 125 mm
