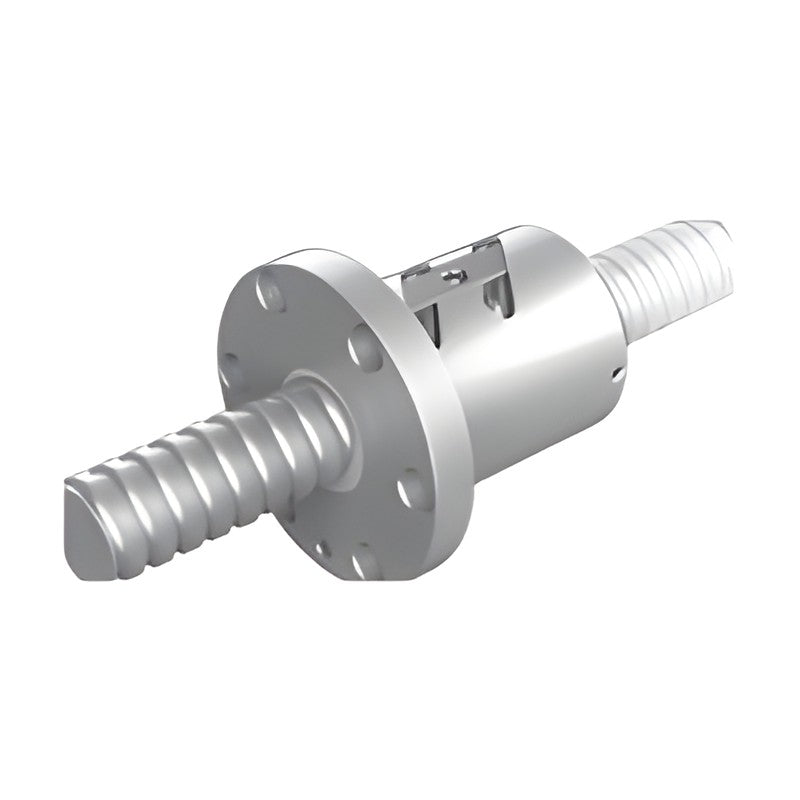

PMI FSWC Ground Ball Screws, External Tube, Single Flanged Nut

PMI FSWC precision ground ball screws: external recirculation (embedded tube), single nut, flanged. Each row is a screw size / nut configuration from the catalogue dimension table.

Key features

External recirculation with return tubes embedded in the nut
Precision ground screw shaft and nut with gothic-arch ball grooves
Lead accuracy graded per JIS B 1192
Preload by double nut, oversize balls or lead offset depending on nut type
Screw shaft length, end machining and accuracy grade specified at order

Specifications

Series	FSWC
Nut type	External recirculation (embedded tube), single nut, flanged
Screw OD range	10-80 mm
Accuracy	Ground, JIS B 1192 grades
Load ratings	Ca dynamic (10^6 rev), Co static, kgf
Ordering	Thread length, overall length and lead accuracy added at order
Available sizes (OD x lead, mm)	10x3, 10x4, 10x5, 12x4, 12x5, 14x4, 14x5, 15x4, 15x5, 15x10, 16x4, 16x5, 16x6, 16x10, 20x4, 20x5, 20x6, 20x8, 25x4, 25x5, 25x6, 25x8, 25x10, 25x12, 28x5, 28x6, 28x8, 28x10, 32x4, 32x5, 32x6, 32x8, 32x10, 32x12, 36x5, 36x6, 36x10, 36x12, 40x5, 40x6, 40x8, 40x10, 40x12, 45x10, 45x12, 50x5, 50x6, 50x8, 50x10, 50x12, 55x10, 63x10, 63x12, 80x10, 80x12, 80x16
Supply	Made to order; specify OD, lead, ball dia, circuits, accuracy grade and length
Source	PMI Ballscrew / Linear Guideway / Mono Stage General Catalog (Section A), p. 154-158

FSWC MADE-TO-ORDER

Screw OD: 10-80 mm | Lead: 3-16 mm | Sizes: 56
