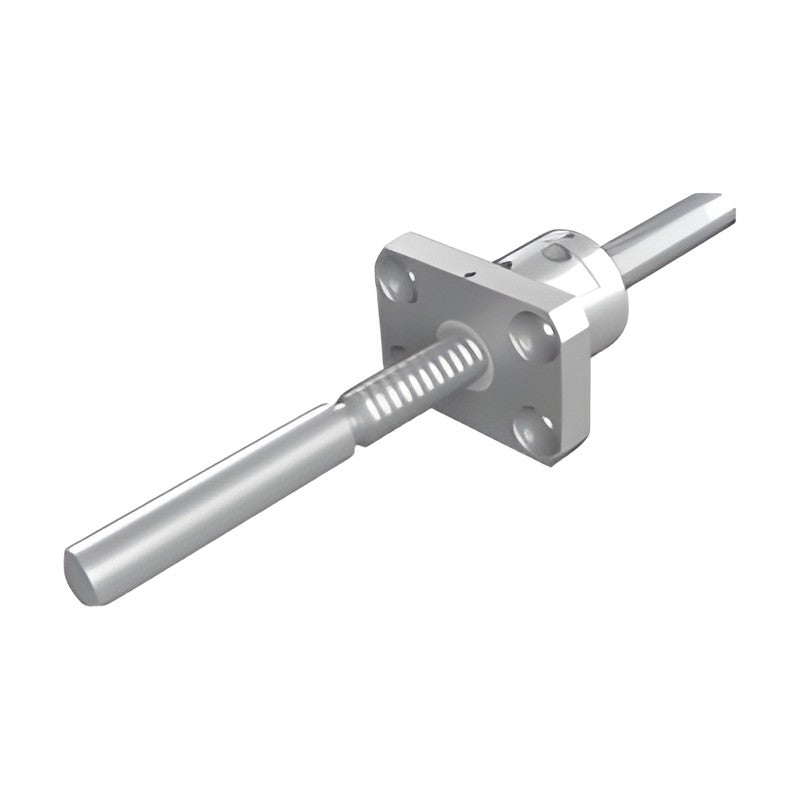

PMI PPR Miniature Ball Screws, Unmachined Ends (C5)

PMI PPR Miniature Ball Screws, Unmachined Ends (C5)

PMI PPR miniature ball screws with compact special external-recirculation nut, supplied with unmachined screw ends in fixed lengths.

Key features

  • Special external recirculation keeps nut size as small as internal-recirculation types
  • 3D S-type return design for smooth ball circulation and reduced wear
  • Screw ends left unmachined for customer end machining
  • Accuracy grade C5
  • Screw diameter 8 and 12 mm, lead 2 mm

Specifications

Series PPR
Accuracy grade C5
Ends Unmachined
Nut Miniature flanged, 2.5x1 circuits
Load ratings kgf
Source PMI Ballscrew / Linear Guideway / Mono Stage General Catalog (Section A), p. 279-281
PPR0802B1C5T-0220 Screw d x lead: 8 x 2 mm | Circuits: 2.5x1 | Ca / Co: 190 / 290 kgf | Shaft length L4: 220 mm
PPR1202B1C5T-0220 Screw d x lead: 12 x 2 mm | Circuits: 2.5x1 | Ca / Co: 240 / 450 kgf | Shaft length L4: 220 mm
PPR1202B1C5T-0300 Screw d x lead: 12 x 2 mm | Circuits: 2.5x1 | Ca / Co: 240 / 450 kgf | Shaft length L4: 300 mm
Ball ScrewsPMI
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

PMI PPR Miniature Ball Screws, Unmachined Ends (C5)

Brand PMI·Ball Screws

Available part numbers (3)

PPR0802B1C5T-0220, PPR1202B1C5T-0220, PPR1202B1C5T-0300

How to order

Send the PMI part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PPR0802B1C5T-0220Screw d x lead: 8 x 2 mm | Circuits: 2.5x1 | Ca / Co: 190 / 290 kgf | Shaft length L4: 220 mm
PPR1202B1C5T-0220Screw d x lead: 12 x 2 mm | Circuits: 2.5x1 | Ca / Co: 240 / 450 kgf | Shaft length L4: 220 mm
PPR1202B1C5T-0300Screw d x lead: 12 x 2 mm | Circuits: 2.5x1 | Ca / Co: 240 / 450 kgf | Shaft length L4: 300 mm
