PMI PTR End Deflector Ball Screws, Unmachined Ends (C5, C7)

PMI PTR End Deflector Ball Screws, Unmachined Ends (C5, C7)

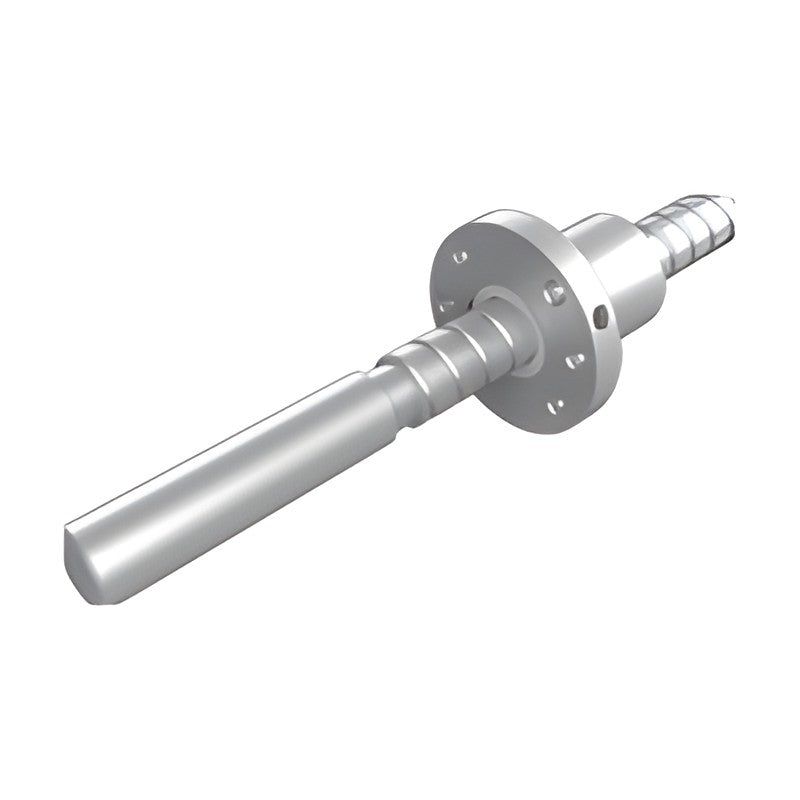

PMI PTR ball screws with end-deflector nut, supplied with unmachined screw ends in fixed lengths in grades C5 and C7.

Key features

  • End-deflector nut shortens nut length and reduces outside diameter by about 20-25 percent
  • Suited to high-lead, high-speed operation
  • Screw ends left unmachined for customer end machining
  • Grade C5 (code suffix C5T) and C7 (code suffix C7S)
  • Screw diameter 12-20 mm, leads 5-20 mm

Specifications

Series PTR
Accuracy grades C5, C7
Ends Unmachined
Nut Flanged end deflector
Load ratings Cam / Coam per ISO 3408-5, kgf
Source PMI Ballscrew / Linear Guideway / Mono Stage General Catalog (Section A), p. 279-285
PTR1205T3C5T-0300 Screw d x lead: 12 x 5 mm | Ca / Co: 610 / 1190 kgf | Shaft length L4: 300 mm | Grade: C5
PTR1205T3C5T-0450 Screw d x lead: 12 x 5 mm | Ca / Co: 610 / 1190 kgf | Shaft length L4: 450 mm | Grade: C5
PTR1210T2C5T-0300 Screw d x lead: 12 x 10 mm | Ca / Co: 590 / 1160 kgf | Shaft length L4: 300 mm | Grade: C5
PTR1210T2C5T-0450 Screw d x lead: 12 x 10 mm | Ca / Co: 590 / 1160 kgf | Shaft length L4: 450 mm | Grade: C5
PTR1220T3C5T-0450 Screw d x lead: 12 x 20 mm | Ca / Co: 390 / 770 kgf | Shaft length L4: 450 mm | Grade: C5
PTR1220T3C5T-0600 Screw d x lead: 12 x 20 mm | Ca / Co: 390 / 770 kgf | Shaft length L4: 600 mm | Grade: C5
PTR1505T3C5T-0300 Screw d x lead: 15 x 5 mm | Ca / Co: 850 / 1640 kgf | Shaft length L4: 300 mm | Grade: C5
PTR1505T3C5T-0450 Screw d x lead: 15 x 5 mm | Ca / Co: 850 / 1640 kgf | Shaft length L4: 450 mm | Grade: C5
PTR1505T3C5T-0600 Screw d x lead: 15 x 5 mm | Ca / Co: 850 / 1640 kgf | Shaft length L4: 600 mm | Grade: C5
PTR1505T3C5T-0750 Screw d x lead: 15 x 5 mm | Ca / Co: 850 / 1640 kgf | Shaft length L4: 750 mm | Grade: C5
PTR1505T3C5T-0900 Screw d x lead: 15 x 5 mm | Ca / Co: 850 / 1640 kgf | Shaft length L4: 900 mm | Grade: C5
PTR1510T3C5T-0300 Screw d x lead: 15 x 10 mm | Ca / Co: 840 / 1610 kgf | Shaft length L4: 300 mm | Grade: C5
PTR1510T3C5T-0450 Screw d x lead: 15 x 10 mm | Ca / Co: 840 / 1610 kgf | Shaft length L4: 450 mm | Grade: C5
PTR1510T3C5T-0600 Screw d x lead: 15 x 10 mm | Ca / Co: 840 / 1610 kgf | Shaft length L4: 600 mm | Grade: C5
PTR1510T3C5T-0750 Screw d x lead: 15 x 10 mm | Ca / Co: 840 / 1610 kgf | Shaft length L4: 750 mm | Grade: C5
PTR1510T3C5T-0900 Screw d x lead: 15 x 10 mm | Ca / Co: 840 / 1610 kgf | Shaft length L4: 900 mm | Grade: C5
PTR1510T3C5T-1100 Screw d x lead: 15 x 10 mm | Ca / Co: 840 / 1610 kgf | Shaft length L4: 1100 mm | Grade: C5
PTR1520T2C5T-0450 Screw d x lead: 15 x 20 mm | Ca / Co: 560 / 1050 kgf | Shaft length L4: 450 mm | Grade: C5
PTR1520T2C5T-0600 Screw d x lead: 15 x 20 mm | Ca / Co: 560 / 1050 kgf | Shaft length L4: 600 mm | Grade: C5
PTR1520T2C5T-0750 Screw d x lead: 15 x 20 mm | Ca / Co: 560 / 1050 kgf | Shaft length L4: 750 mm | Grade: C5
PTR1520T2C5T-0900 Screw d x lead: 15 x 20 mm | Ca / Co: 560 / 1050 kgf | Shaft length L4: 900 mm | Grade: C5
PTR1520T2C5T-1000 Screw d x lead: 15 x 20 mm | Ca / Co: 560 / 1050 kgf | Shaft length L4: 1000 mm | Grade: C5
PTR1520T2C5T-1100 Screw d x lead: 15 x 20 mm | Ca / Co: 560 / 1050 kgf | Shaft length L4: 1100 mm | Grade: C5
PTR1520T2C5T-1300 Screw d x lead: 15 x 20 mm | Ca / Co: 560 / 1050 kgf | Shaft length L4: 1300 mm | Grade: C5
PTR2005T3C5T-0400 Screw d x lead: 20 x 5 mm | Ca / Co: 1000 / 2240 kgf | Shaft length L4: 400 mm | Grade: C5
PTR2005T3C5T-0600 Screw d x lead: 20 x 5 mm | Ca / Co: 1000 / 2240 kgf | Shaft length L4: 520 mm | Grade: C5
PTR2005T3C5T-0800 Screw d x lead: 20 x 5 mm | Ca / Co: 1000 / 2240 kgf | Shaft length L4: 720 mm | Grade: C5
PTR2005T3C5T-1000 Screw d x lead: 20 x 5 mm | Ca / Co: 1000 / 2240 kgf | Shaft length L4: 920 mm | Grade: C5
PTR2010T3C5T-0600 Screw d x lead: 20 x 10 mm | Ca / Co: 1530 / 3280 kgf | Shaft length L4: 600 mm | Grade: C5
PTR2010T3C5T-0800 Screw d x lead: 20 x 10 mm | Ca / Co: 1530 / 3280 kgf | Shaft length L4: 800 mm | Grade: C5
PTR2010T3C5T-1000 Screw d x lead: 20 x 10 mm | Ca / Co: 1530 / 3280 kgf | Shaft length L4: 1000 mm | Grade: C5
PTR2010T3C5T-1300 Screw d x lead: 20 x 10 mm | Ca / Co: 1530 / 3280 kgf | Shaft length L4: 1300 mm | Grade: C5
PTR2010T3C5T-1500 Screw d x lead: 20 x 10 mm | Ca / Co: 1530 / 3280 kgf | Shaft length L4: 1500 mm | Grade: C5
PTR1205T3C7S-0450 Screw d x lead: 12 x 5 mm | Ca / Co: 610 / 1190 kgf | Shaft length L4: 450 mm | Grade: C7
PTR1210T3C7S-0600 Screw d x lead: 12 x 10 mm | Ca / Co: 590 / 1160 kgf | Shaft length L4: 600 mm | Grade: C7
PTR1220T2C7S-0600 Screw d x lead: 12 x 20 mm | Ca / Co: 390 / 770 kgf | Shaft length L4: 600 mm | Grade: C7
PTR1505T3C7S-0600 Screw d x lead: 15 x 5 mm | Ca / Co: 850 / 1640 kgf | Shaft length L4: 600 mm | Grade: C7
PTR1510T3C7S-0450 Screw d x lead: 15 x 10 mm | Ca / Co: 840 / 1610 kgf | Shaft length L4: 450 mm | Grade: C7
PTR1510T3C7S-0600 Screw d x lead: 15 x 10 mm | Ca / Co: 840 / 1610 kgf | Shaft length L4: 600 mm | Grade: C7
PTR1510T3C7S-0750 Screw d x lead: 15 x 10 mm | Ca / Co: 840 / 1610 kgf | Shaft length L4: 750 mm | Grade: C7
PTR1510T3C7S-0900 Screw d x lead: 15 x 10 mm | Ca / Co: 840 / 1610 kgf | Shaft length L4: 900 mm | Grade: C7
PTR1510T3C7S-1000 Screw d x lead: 15 x 10 mm | Ca / Co: 840 / 1610 kgf | Shaft length L4: 1000 mm | Grade: C7
PTR1510T3C7S-1100 Screw d x lead: 15 x 10 mm | Ca / Co: 840 / 1610 kgf | Shaft length L4: 1100 mm | Grade: C7
PTR1510T3C7S-1300 Screw d x lead: 15 x 10 mm | Ca / Co: 840 / 1610 kgf | Shaft length L4: 1300 mm | Grade: C7
PTR1520T2C7S-0600 Screw d x lead: 15 x 20 mm | Ca / Co: 560 / 1050 kgf | Shaft length L4: 600 mm | Grade: C7
PTR1520T2C7S-0750 Screw d x lead: 15 x 20 mm | Ca / Co: 560 / 1050 kgf | Shaft length L4: 750 mm | Grade: C7
PTR1520T2C7S-0900 Screw d x lead: 15 x 20 mm | Ca / Co: 560 / 1050 kgf | Shaft length L4: 900 mm | Grade: C7
PTR1520T2C7S-1000 Screw d x lead: 15 x 20 mm | Ca / Co: 560 / 1050 kgf | Shaft length L4: 1000 mm | Grade: C7
PTR1520T2C7S-1100 Screw d x lead: 15 x 20 mm | Ca / Co: 560 / 1050 kgf | Shaft length L4: 1100 mm | Grade: C7
PTR1520T2C7S-1300 Screw d x lead: 15 x 20 mm | Ca / Co: 560 / 1050 kgf | Shaft length L4: 1300 mm | Grade: C7
PTR2005T3C7S-0600 Screw d x lead: 20 x 5 mm | Ca / Co: 1000 / 2240 kgf | Shaft length L4: 600 mm | Grade: C7
PTR2010T3C7S-0600 Screw d x lead: 20 x 10 mm | Ca / Co: 1530 / 3280 kgf | Shaft length L4: 600 mm | Grade: C7
PTR2010T3C7S-1000 Screw d x lead: 20 x 10 mm | Ca / Co: 1530 / 3280 kgf | Shaft length L4: 1000 mm | Grade: C7
PTR2010T3C7S-1500 Screw d x lead: 20 x 10 mm | Ca / Co: 1530 / 3280 kgf | Shaft length L4: 1500 mm | Grade: C7
