PMI RSVW Rolled Ball Screw Nuts, Round, Protruding Tube

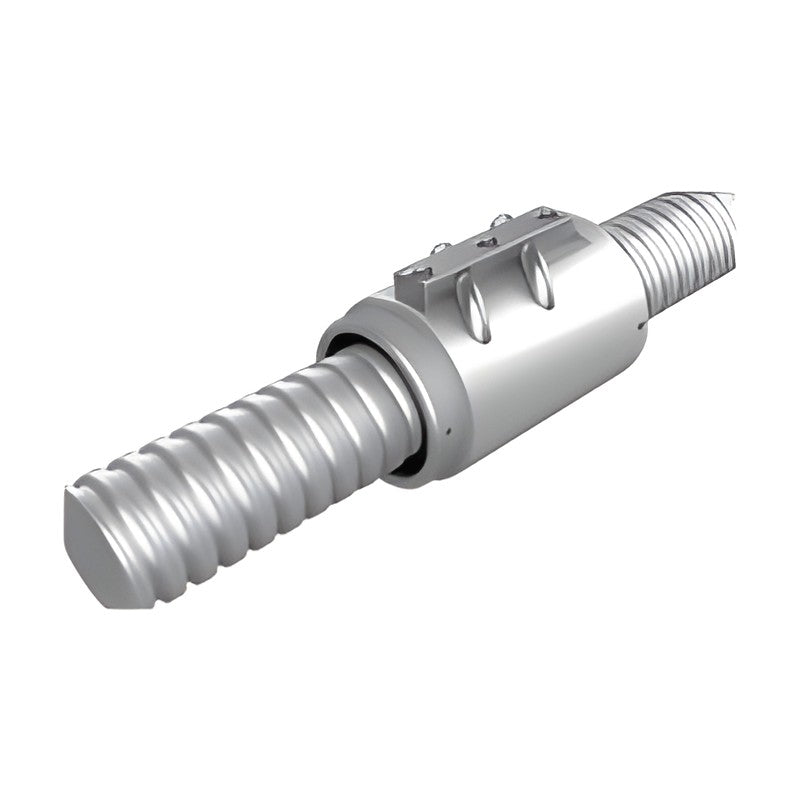

PMI RSVW nuts for rolled ball screws: round single nut, external recirculation (protruding tube). The nut model number gives screw OD, lead and effective turns.

Key features

For PMI rolled screw shafts in accuracy grades C7, C8 and C10
Nut model code: type, screw OD, lead and effective turns (circuits x rows)
Rolled shafts made from S55C, induction hardened to HRC 58-62
Nut stiffness values listed at 30 percent of dynamic load
Supplied with a temporary dummy shaft for handling

Specifications

Series	RSVW
Nut type	Round single nut, external recirculation (protruding tube)
Shaft type	Rolled ball screw
Shaft accuracy	C7, C8, C10
Nut material	SCM420H, carburized HRC 58-62
Load ratings	kgf
Source	PMI Ballscrew / Linear Guideway / Mono Stage General Catalog (Section A), p. 253

RSVW1404-3.5P		Ball dia: 2.381 mm \| Circuits: 3.5x1 \| Ca / Co: 500 / 1100 kgf \| Nut D x L: 25 x 42 mm
RSVW1405-2.5P		Ball dia: 3.175 mm \| Circuits: 2.5x1 \| Ca / Co: 515 / 990 kgf \| Nut D x L: 30 x 43 mm
RSVW2005-2.5P		Ball dia: 3.175 mm \| Circuits: 2.5x1 \| Ca / Co: 625 / 1450 kgf \| Nut D x L: 40 x 43 mm
RSVW2505-2.5P		Ball dia: 3.175 mm \| Circuits: 2.5x1 \| Ca / Co: 720 / 1830 kgf \| Nut D x L: 42 x 48 mm
RSVW2505-5.0P		Ball dia: 3.175 mm \| Circuits: 2.5x2 \| Ca / Co: 1120 / 3710 kgf \| Nut D x L: 42 x 63 mm
RSVW2510-2.5P		Ball dia: 6.350 mm \| Circuits: 2.5x1 \| Ca / Co: 1720 / 3590 kgf \| Nut D x L: 44 x 68 mm
RSVW2510-5.0P		Ball dia: 6.350 mm \| Circuits: 2.5x2 \| Ca / Co: 3200 / 7170 kgf \| Nut D x L: 44 x 98 mm
RSVW3210-2.5P		Ball dia: 6.350 mm \| Circuits: 2.5x1 \| Ca / Co: 1930 / 4680 kgf \| Nut D x L: 55 x 72 mm
RSVW3210-5.0P		Ball dia: 6.350 mm \| Circuits: 2.5x2 \| Ca / Co: 3130 / 9410 kgf \| Nut D x L: 55 x 101 mm
RSVW4010-7.0P		Ball dia: 6.350 mm \| Circuits: 3.5x2 \| Ca / Co: 4450 / 16800 kgf \| Nut D x L: 65 x 128 mm
RSVW5010-7.0P		Ball dia: 6.350 mm \| Circuits: 3.5x2 \| Ca / Co: 4940 / 21000 kgf \| Nut D x L: 80 x 143 mm
