PMI SSVW Rolled Ball Screw Nuts, Square, External Return

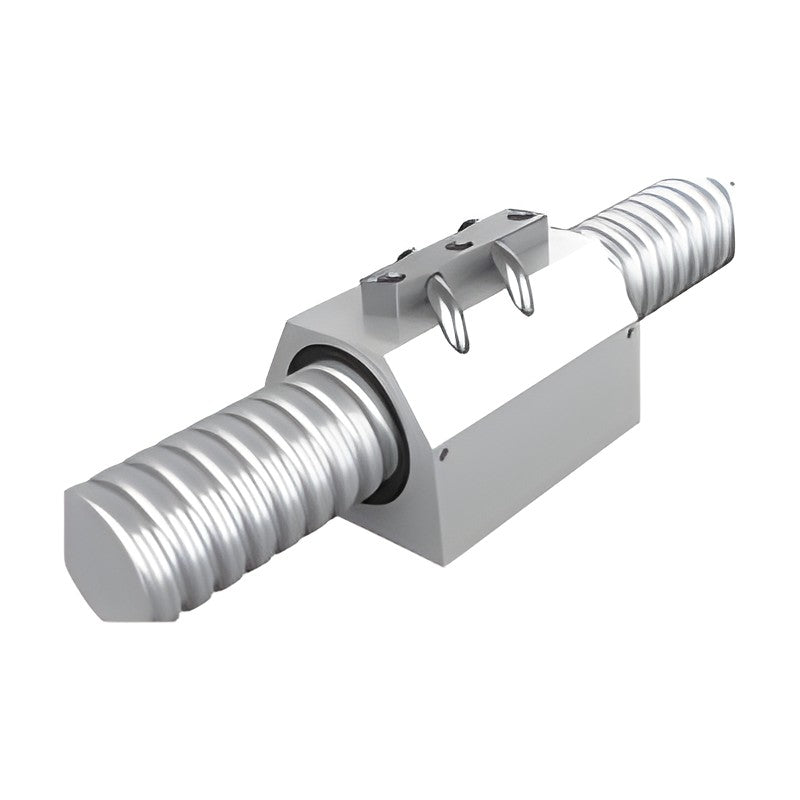

PMI SSVW nuts for rolled ball screws: square single nut, external recirculation. The nut model number gives screw OD, lead and effective turns.

Key features

For PMI rolled screw shafts in accuracy grades C7, C8 and C10
Nut model code: type, screw OD, lead and effective turns (circuits x rows)
Rolled shafts made from S55C, induction hardened to HRC 58-62
Nut stiffness values listed at 30 percent of dynamic load
Supplied with a temporary dummy shaft for handling

Specifications

Series	SSVW
Nut type	Square single nut, external recirculation
Shaft type	Rolled ball screw
Shaft accuracy	C7, C8, C10
Nut material	SCM420H, carburized HRC 58-62
Load ratings	kgf
Source	PMI Ballscrew / Linear Guideway / Mono Stage General Catalog (Section A), p. 257

SSVW1404-3.5P		Ball dia: 2.381 mm \| Circuits: 3.5x1 \| Ca / Co: 500 / 1110 kgf \| Nut L x W: 35 x 34 mm
SSVW1405-2.5P		Ball dia: 3.175 mm \| Circuits: 2.5x1 \| Ca / Co: 515 / 990 kgf \| Nut L x W: 35 x 34 mm
SSVW1605-2.5P		Ball dia: 3.175 mm \| Circuits: 2.5x1 \| Ca / Co: 590 / 1210 kgf \| Nut L x W: 35 x 42 mm
SSVW2005-2.5P		Ball dia: 3.175 mm \| Circuits: 2.5x1 \| Ca / Co: 625 / 1450 kgf \| Nut L x W: 35 x 48 mm
SSVW2010-2.5P		Ball dia: 4.762 mm \| Circuits: 2.5x1 \| Ca / Co: 1100 / 2220 kgf \| Nut L x W: 58 x 48 mm
SSVW2505-2.5P		Ball dia: 3.175 mm \| Circuits: 2.5x1 \| Ca / Co: 720 / 1830 kgf \| Nut L x W: 35 x 60 mm
SSVW2510-5.0P		Ball dia: 6.350 mm \| Circuits: 2.5x2 \| Ca / Co: 3240 / 7170 kgf \| Nut L x W: 94 x 60 mm
SSVW2806-5.0P		Ball dia: 3.175 mm \| Circuits: 2.5x2 \| Ca / Co: 1380 / 4140 kgf \| Nut L x W: 67 x 60 mm
SSVW3210-2.5P		Ball dia: 6.350 mm \| Circuits: 2.5x1 \| Ca / Co: 2010 / 4700 kgf \| Nut L x W: 64 x 70 mm
SSVW3210-5.0P		Ball dia: 6.350 mm \| Circuits: 2.5x2 \| Ca / Co: 3640 / 9410 kgf \| Nut L x W: 94 x 70 mm
