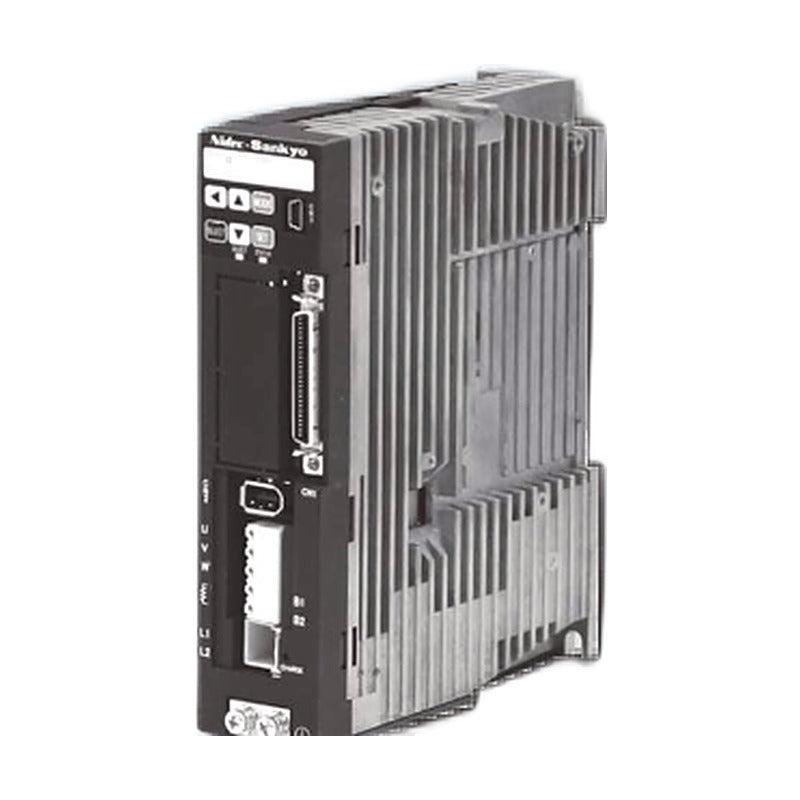

S-FLAG DA2 AC Servo Amplifiers (Pulse/Analog, 50 W-2 kW)

S-FLAG DA2 AC Servo Amplifiers (Pulse/Analog, 50 W-2 kW)

S-FLAG DA2 series AC servo amplifiers for MA/MM/MH and MX/MY/MZ servo motors from 50 W to 2 kW, with pulse-train, analog speed/torque and RS-485 control.

Key features

  • Position, speed and torque control modes
  • RS-422 differential or open-collector pulse input
  • 2-DOF robust control with observer and feed-forward
  • Enhanced vibration-suppression and gamma-notch filters
  • USB link to S-TUNE PC software; RS-485 multi-axis

Specifications

Series DA2
Main power 1-ph AC 200-240 V (50-750 W); 3-ph (1.5-2 kW)
Control power 24 VDC
Control 3-phase PWM, sine-wave current drive
Encoder feedback 17-bit (absolute with battery)
I/O 8 inputs, 8 outputs, 1 analog input
Communication USB, RS-485
Regeneration External resistor
Model format DA2 + motor code + capacity code + ** (management no.)
Source S-FLAG S-FLAG Servo Catalogue 2021, pp.36-39
DA2YZ Capacity: 50 W | Motor: M*500 | Rated current: 0.7 A
DA2Z1 Capacity: 100 W | Motor: M*101 | Rated current: 1.0 A
DA212 Capacity: 200 W | Motor: M*201 | Rated current: 1.7 A
DA224 Capacity: 400 W | Motor: M*401 | Rated current: 2.7 A
DA238 Capacity: 750 W | Motor: M*751 | Rated current: 4.3 A
DA24A Capacity: 1000 W | Motor: M*102 | Rated current: 5.6 A
DA26B Capacity: 1500 W | Motor: M*152 | Rated current: 9.9 A
DA28C Capacity: 2000 W | Motor: M*202 | Rated current: 12.2 A
Servo DrivesS-FLAG
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

S-FLAG DA2 AC Servo Amplifiers (Pulse/Analog, 50 W-2 kW)

Brand S-FLAG·Servo Drives

Available part numbers (8)

DA2YZ, DA2Z1, DA212, DA224, DA238, DA24A, DA26B, DA28C

How to order

Send the S-FLAG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DA2YZCapacity: 50 W | Motor: M*500 | Rated current: 0.7 A
DA2Z1Capacity: 100 W | Motor: M*101 | Rated current: 1.0 A
DA212Capacity: 200 W | Motor: M*201 | Rated current: 1.7 A
DA224Capacity: 400 W | Motor: M*401 | Rated current: 2.7 A
DA238Capacity: 750 W | Motor: M*751 | Rated current: 4.3 A
DA24ACapacity: 1000 W | Motor: M*102 | Rated current: 5.6 A
DA26BCapacity: 1500 W | Motor: M*152 | Rated current: 9.9 A
DA28CCapacity: 2000 W | Motor: M*202 | Rated current: 12.2 A
