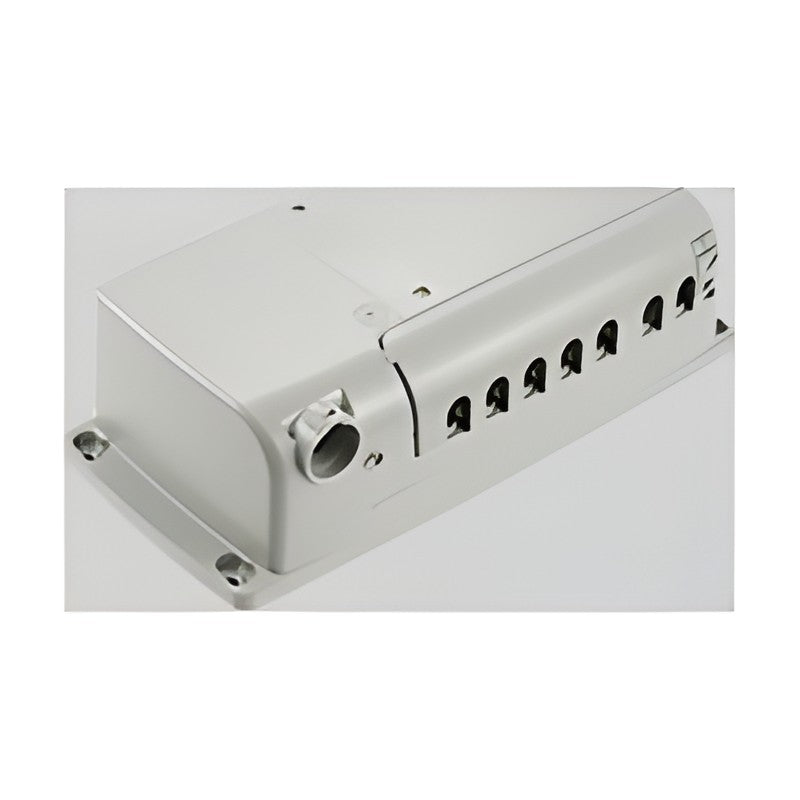

TiMOTION TC Series Actuator Control Boxes (TC1-TC16)

TiMOTION TC Series Actuator Control Boxes (TC1-TC16)

TiMOTION TC series control boxes that power and coordinate TiMOTION linear actuators in medical beds, recliners, TV lifts and height-adjustable desks.

Key features

  • Control 1 to 7 actuators depending on model
  • EI, toroidal or SMPS transformer versions
  • Medical models compliant with EN60601-1 / UL60601-1
  • Synchronous control for desk and dual-actuator systems
  • Configurable voltage, plug, colour, cable, IP rating and fixation via ordering key

Specifications

Mains input 100, 120, 230 V AC or 100-240 V AC SMPS (model dependent)
Max. output Up to 36 V DC, 10 A (model dependent)
Number of actuators 1-7 (model dependent)
Plug support EU, USA, AUS, UK, JPN or customised
Protection class IP42, IP54 or IP66 (TC1, TC8, TC9, TC10, TC14)
Color Black or grey
Source TiMOTION TC1-TC16 control unit datasheets
TC1 Input: 100/120/230 V AC | Output: 29 V DC, 6 A | Actuators: 1-4 | IP: IP42/54/66 | Cert.: EN/UL60601-1
TC2B Input: 100/120/230 V AC or SMPS | Output: 22 V DC, 3 A | Actuators: 1-3 | Cert.: UL, RCM, SAA
TC3 Output: 28 V DC, 1.2 A | Actuators: 1-4 | Mounting: on TA1 | Wireless: available
TC3B Output: 28 V DC, 1.2 A | Actuators: 1-4 | Mounting: TA6/TA7 or bracket | Cert.: EMC, CE
TC5 Input: 100/120/230 V AC | Output: 22 V DC, 3 A | For: TVL2 TV lift column | Wireless: available
TC6 Actuators: 1-5 | Protection: over-current | Extras: massage, heat pad, light | Also: air lumbar, safety strip
TC7 Actuators: 1-2 | Function: 2-actuator sync movement | Color: black or grey
TC8 Output: 36 V DC, 6 A | Actuators: 1-7 | Handsets: 1-3 | IP: IP42/54/66 | Bus: T-BUS
TC9 Input: 100/120/230 V AC | Output: 25 V DC, 7.5 A | Actuators: 1-3 | Transformer: toroidal | Safety strip: optional
TC10 Input: 100/120/230 V AC | Output: 29 V DC, 5 A | Actuators: 1-5 | Handsets: 1-2 | Backup battery: optional
TC14 Actuators: 1-4 | IP: IP42/54/66 | Cert.: EN60601-1 | Software: customisable
TC15 Supply: SMPS | Output: 29 V DC, 10 A | Actuators: 2 (synchronous) | Use: height-adjustable desk | Standby: 0.06 W
TC16 Supply: SMPS | Output: 29 V DC, 10 A | Actuators: 3 (synchronous) | Use: height-adjustable desk | Standby: 0.06 W
Actuator Control UnitsTiMOTION
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TiMOTION TC Series Actuator Control Boxes (TC1-TC16)

Brand TiMOTION·Actuator Control Units

Available part numbers (13)

TC1, TC2B, TC3, TC3B, TC5, TC6, TC7, TC8, TC9, TC10 + 3 more — see full table ↓

How to order

Send the TiMOTION part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TC1Input: 100/120/230 V AC | Output: 29 V DC, 6 A | Actuators: 1-4 | IP: IP42/54/66 | Cert.: EN/UL60601-1
TC2BInput: 100/120/230 V AC or SMPS | Output: 22 V DC, 3 A | Actuators: 1-3 | Cert.: UL, RCM, SAA
TC3Output: 28 V DC, 1.2 A | Actuators: 1-4 | Mounting: on TA1 | Wireless: available
TC3BOutput: 28 V DC, 1.2 A | Actuators: 1-4 | Mounting: TA6/TA7 or bracket | Cert.: EMC, CE
TC5Input: 100/120/230 V AC | Output: 22 V DC, 3 A | For: TVL2 TV lift column | Wireless: available
TC6Actuators: 1-5 | Protection: over-current | Extras: massage, heat pad, light | Also: air lumbar, safety strip
TC7Actuators: 1-2 | Function: 2-actuator sync movement | Color: black or grey
TC8Output: 36 V DC, 6 A | Actuators: 1-7 | Handsets: 1-3 | IP: IP42/54/66 | Bus: T-BUS
TC9Input: 100/120/230 V AC | Output: 25 V DC, 7.5 A | Actuators: 1-3 | Transformer: toroidal | Safety strip: optional
TC10Input: 100/120/230 V AC | Output: 29 V DC, 5 A | Actuators: 1-5 | Handsets: 1-2 | Backup battery: optional
TC14Actuators: 1-4 | IP: IP42/54/66 | Cert.: EN60601-1 | Software: customisable
TC15Supply: SMPS | Output: 29 V DC, 10 A | Actuators: 2 (synchronous) | Use: height-adjustable desk | Standby: 0.06 W
TC16Supply: SMPS | Output: 29 V DC, 10 A | Actuators: 3 (synchronous) | Use: height-adjustable desk | Standby: 0.06 W
