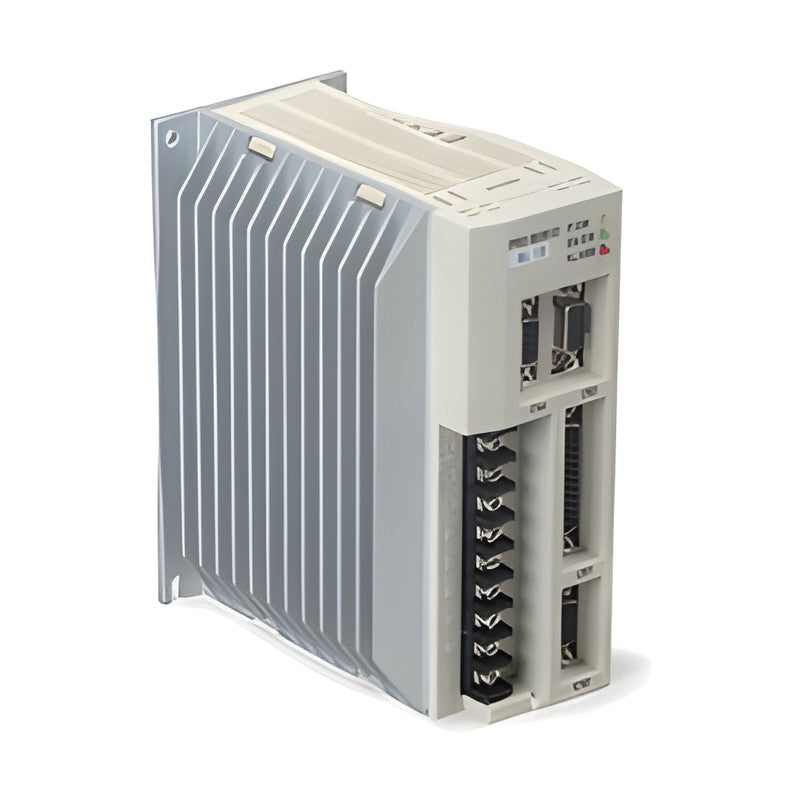

TMTECH-I TMC-A BLDC Motor Drivers (AC 220 V, 1.6-8 A) and OP Panels

TMTECH-I TMC-A BLDC Motor Drivers (AC 220 V, 1.6-8 A) and OP Panels

TMTECH-I TMC-A series are AC 220 V brushless DC motor drivers with speed control and current limiting, rated 1.6 A to 8 A continuous. OP-100 and OP-500 operator panels add speed display, handy-loader operation and parameter setting.

Key features

  • Square-wave PWM speed control with current limit
  • Speed range 100 to 5000 rpm
  • Internal / external speed command and three preset speeds
  • Hall, encoder or linear Hall feedback
  • Overcurrent (250%), Hall, parameter, under/over-voltage alarms
  • RS-485, analog monitor and regeneration options

Specifications

Product type BLDC motor driver
Input AC 220 V, single or three phase
Rated current 1.6 to 8 A
Peak current 4 to 20 A
Control Speed control, current limit, square-wave PWM
Speed range 100 to 5000 rpm
Inputs F/R, SVON, BRAKE, ALARM RST, speed select
Outputs Speed pulse, alarm (open collector)
Dimensions 78 (W) x 170 (H) x 123 (D) mm
Source TMTECH-I BLDC TMC-A Standard Driver Manual
TMC-A04-N Rated current: 1.6 A | Peak current: 4 A | Input: AC 220 V | Speed: 100-5000 rpm
TMC-A07-N Rated current: 2.8 A | Peak current: 7 A | Input: AC 220 V | Speed: 100-5000 rpm
TMC-A10-N Rated current: 4.0 A | Peak current: 10 A | Input: AC 220 V | Speed: 100-5000 rpm
TMC-A15-N Rated current: 6 A | Peak current: 14 A | Input: AC 220 V | Speed: 100-5000 rpm
TMC-A20-N Rated current: 8 A | Peak current: 20 A | Input: AC 220 V | Speed: 100-5000 rpm
OP-100 Type: operator panel / handy loader | Display: 6-digit RPM | Controls: servo on, dir, speed
OP-500 Type: parameter setting unit | Sets: speed, accel/decel, poles, gain | Port: CN3
BLDC Motor DriversTMTECH-I
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TMTECH-I TMC-A BLDC Motor Drivers (AC 220 V, 1.6-8 A) and OP Panels

Brand TMTECH-I·BLDC Motor Drivers

Available part numbers (7)

TMC-A04-N, TMC-A07-N, TMC-A10-N, TMC-A15-N, TMC-A20-N, OP-100, OP-500

How to order

Send the TMTECH-I part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TMC-A04-NRated current: 1.6 A | Peak current: 4 A | Input: AC 220 V | Speed: 100-5000 rpm
TMC-A07-NRated current: 2.8 A | Peak current: 7 A | Input: AC 220 V | Speed: 100-5000 rpm
TMC-A10-NRated current: 4.0 A | Peak current: 10 A | Input: AC 220 V | Speed: 100-5000 rpm
TMC-A15-NRated current: 6 A | Peak current: 14 A | Input: AC 220 V | Speed: 100-5000 rpm
TMC-A20-NRated current: 8 A | Peak current: 20 A | Input: AC 220 V | Speed: 100-5000 rpm
OP-100Type: operator panel / handy loader | Display: 6-digit RPM | Controls: servo on, dir, speed
OP-500Type: parameter setting unit | Sets: speed, accel/decel, poles, gain | Port: CN3
