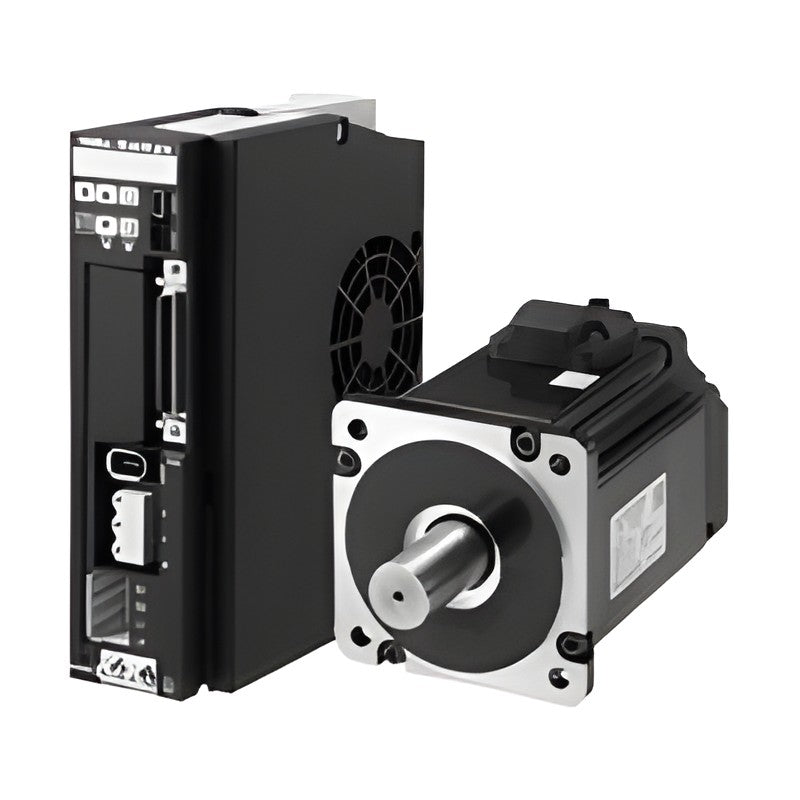

S-FLAG MA/MM/MH AC Servo Motors (S-FLAG I, 50 W-2 kW)

S-FLAG MA/MM/MH AC Servo Motors (S-FLAG I, 50 W-2 kW)

S-FLAG I AC servo motors in low (MA), middle (MM) and high (MH) inertia versions from 50 W to 2 kW for AC 200-240 V servo amplifiers. Built on S-FLAG robot-control know-how for display, semiconductor, textile and packaging machinery.

Key features

  • Low, middle and high inertia series for different machine rigidity
  • 17-bit incremental or absolute encoder
  • Optional 24 VDC holding brake
  • Straight or keyed shaft, with or without oil seal
  • IP65 (50-750 W) and IP67 (1-2 kW) protection
  • Custom motor versions available on request

Specifications

Series MA (low), MM (middle), MH (high inertia)
Output range 50 W to 2 kW
Voltage AC 200-240 V
Flange 40, 60, 80, 130 mm square
Encoder 17-bit incremental (N) or absolute (A)
Brake None (N) or 24 VDC holding brake (A)
Shaft / oil seal S, K, T, L options
Protection IP65 (50-750 W), IP67 (1-2 kW)
Ambient 0-40 °C, 20-85 % RH
Model format MA201 N 2 S N ** (series-output-brake-voltage-shaft-encoder)
Source S-FLAG S-FLAG Servo Catalogue 2021, pp.8-22
MM500 Output: 50 W | Inertia: Middle | Flange: 40 mm sq. | Rated torque: 0.16 N·m | Speed: 3000/6000 rpm
MM101 Output: 100 W | Inertia: Middle | Flange: 40 mm sq. | Rated torque: 0.32 N·m | Speed: 3000/6000 rpm
MA201 Output: 200 W | Inertia: Low | Flange: 60 mm sq. | Rated torque: 0.64 N·m | Speed: 3000/5000 rpm
MH201 Output: 200 W | Inertia: High | Flange: 60 mm sq. | Rated torque: 0.64 N·m | Speed: 3000/5000 rpm
MA401 Output: 400 W | Inertia: Low | Flange: 60 mm sq. | Rated torque: 1.27 N·m | Speed: 3000/5000 rpm
MH401 Output: 400 W | Inertia: High | Flange: 60 mm sq. | Rated torque: 1.27 N·m | Speed: 3000/5000 rpm
MA751 Output: 750 W | Inertia: Low | Flange: 80 mm sq. | Rated torque: 2.39 N·m | Speed: 3000/4500 rpm
MH751 Output: 750 W | Inertia: High | Flange: 80 mm sq. | Rated torque: 2.39 N·m | Speed: 3000/4500 rpm
MM102 Output: 1000 W | Inertia: Middle | Flange: 130 mm sq. | Rated torque: 4.77 N·m | Speed: 2000/3000 rpm
MH102 Output: 1000 W | Inertia: High | Flange: 130 mm sq. | Rated torque: 4.77 N·m | Speed: 2000/3000 rpm
MM152 Output: 1500 W | Inertia: Middle | Flange: 130 mm sq. | Rated torque: 7.16 N·m | Speed: 2000/3000 rpm
MH152 Output: 1500 W | Inertia: High | Flange: 130 mm sq. | Rated torque: 7.16 N·m | Speed: 2000/3000 rpm
MM202 Output: 2000 W | Inertia: Middle | Flange: 130 mm sq. | Rated torque: 9.55 N·m | Speed: 2000/3000 rpm
Servo MotorsS-FLAG
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

S-FLAG MA/MM/MH AC Servo Motors (S-FLAG I, 50 W-2 kW)

Brand S-FLAG·Servo Motors

Available part numbers (13)

MM500, MM101, MA201, MH201, MA401, MH401, MA751, MH751, MM102, MH102 + 3 more — see full table ↓

How to order

Send the S-FLAG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MM500Output: 50 W | Inertia: Middle | Flange: 40 mm sq. | Rated torque: 0.16 N·m | Speed: 3000/6000 rpm
MM101Output: 100 W | Inertia: Middle | Flange: 40 mm sq. | Rated torque: 0.32 N·m | Speed: 3000/6000 rpm
MA201Output: 200 W | Inertia: Low | Flange: 60 mm sq. | Rated torque: 0.64 N·m | Speed: 3000/5000 rpm
MH201Output: 200 W | Inertia: High | Flange: 60 mm sq. | Rated torque: 0.64 N·m | Speed: 3000/5000 rpm
MA401Output: 400 W | Inertia: Low | Flange: 60 mm sq. | Rated torque: 1.27 N·m | Speed: 3000/5000 rpm
MH401Output: 400 W | Inertia: High | Flange: 60 mm sq. | Rated torque: 1.27 N·m | Speed: 3000/5000 rpm
MA751Output: 750 W | Inertia: Low | Flange: 80 mm sq. | Rated torque: 2.39 N·m | Speed: 3000/4500 rpm
MH751Output: 750 W | Inertia: High | Flange: 80 mm sq. | Rated torque: 2.39 N·m | Speed: 3000/4500 rpm
MM102Output: 1000 W | Inertia: Middle | Flange: 130 mm sq. | Rated torque: 4.77 N·m | Speed: 2000/3000 rpm
MH102Output: 1000 W | Inertia: High | Flange: 130 mm sq. | Rated torque: 4.77 N·m | Speed: 2000/3000 rpm
MM152Output: 1500 W | Inertia: Middle | Flange: 130 mm sq. | Rated torque: 7.16 N·m | Speed: 2000/3000 rpm
MH152Output: 1500 W | Inertia: High | Flange: 130 mm sq. | Rated torque: 7.16 N·m | Speed: 2000/3000 rpm
MM202Output: 2000 W | Inertia: Middle | Flange: 130 mm sq. | Rated torque: 9.55 N·m | Speed: 2000/3000 rpm
