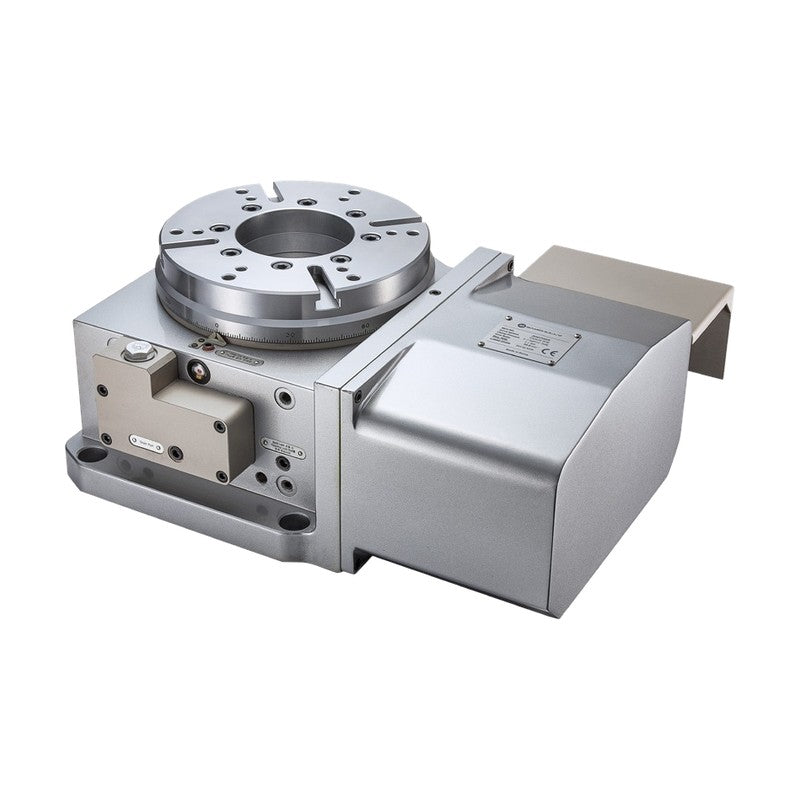

Samchully 1-Axis High Speed Horizontal NC Rotary Table RHB-250Y4

Samchully 1-Axis High Speed Horizontal NC Rotary Table RHB-250Y4

Ø240 mm low-torque, high-speed horizontal NC rotary table with YASKAWA motor.

Key features

  • High speed spindle
  • Air clamp (hydraulic option)
  • For NeoCon-S controller
RHB-250Y4 Table Dia. (mm): Ø240 | Center Height (mm): 200 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø78H8 | Clamp Method: Pneumatic 5~7 kgf/cm² / Hydraulic 25~35 kgf/cm² | Max. Spindle Speed (min-1): 66.6 (motor 4000 min-1) | Gear Ratio: 1/60 | Indexing Accuracy (sec): 20 | Repeatability (sec): 5 | Servo Motor: YASKAWA SGM7P-15A7A6S | Weight (kg): 100
NC Rotary TablesSamchully
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully 1-Axis High Speed Horizontal NC Rotary Table RHB-250Y4

Brand Samchully·NC Rotary Tables

Available part numbers (1)

RHB-250Y4

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RHB-250Y4Table Dia. (mm): Ø240 | Center Height (mm): 200 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø78H8 | Clamp Method: Pneumatic 5~7 kgf/cm² / Hydraulic 25~35 kgf/cm² | Max. Spindle Speed (min-1): 66.6 (motor 4000 min-1) | Gear Ratio: 1/60 | Indexing Accuracy (sec): 20 | Repeatability (sec): 5 | Servo Motor: YASKAWA SGM7P-15A7A6S | Weight (kg): 100
