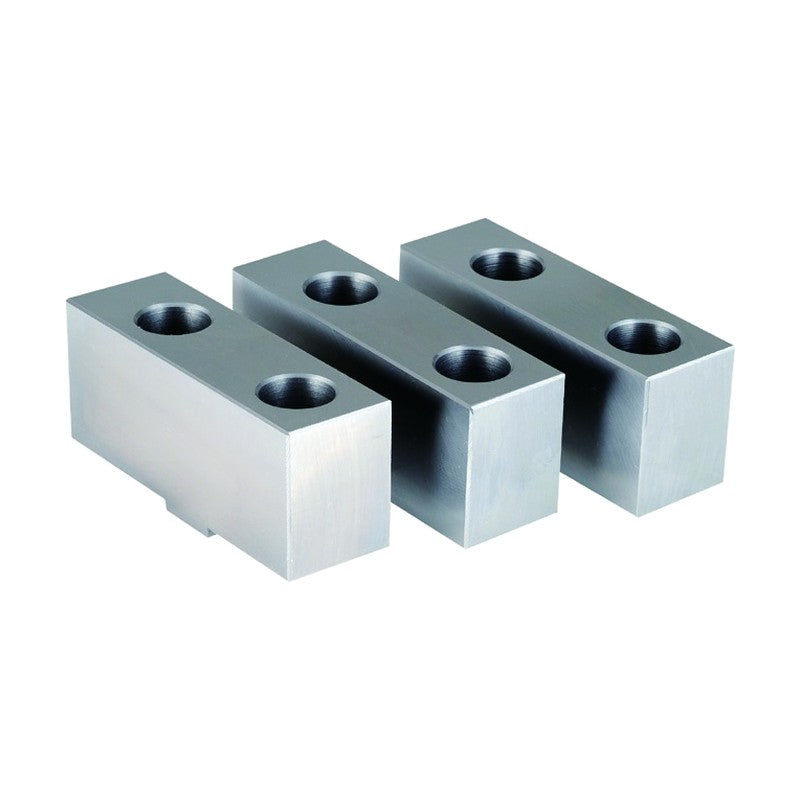

Samchully Scroll Chuck Hard Top Jaws (TC, FTC, ST)

Samchully Scroll Chuck Hard Top Jaws (TC, FTC, ST)

Hard top jaws for TC, FTC and ST scroll chucks.

TJ-TC-165 Fits: TC-165, FTC-165 | A (mm): 67.3 | B (mm): 26 | C1 (mm): 9 | C2 (mm): 9 | C3 (mm): 38 | D-1 (mm): 19.05 | D-2 (mm): 19.05 | E (mm): 34.3 | F (mm): 33 | G (mm): 3 | H (mm): 12.68 | ØJ (mm): 14
TJ-TC-190 Fits: TC-190, FTC-190 ST-190 | A (mm): 80.5 | B (mm): 28 | C1 (mm): 10 | C2 (mm): 10 | C3 (mm): 41 | D-1 (mm): 22.225 | D-2 (mm): 22.225 | E (mm): 40.5 | F (mm): 40 | G (mm): 3 | H (mm): 12.68 | ØJ (mm): 17
TJ-TC-230 Fits: TC-230, FTC-230, ST-230 | A (mm): 90.5 | B (mm): 32 | C1 (mm): 12 | C2 (mm): 12 | C3 (mm): 48 | D-1 (mm): 26.99 | D-2 (mm): 26.99 | E (mm): 45.5 | F (mm): 45 | G (mm): 3 | H (mm): 19.03 | ØJ (mm): 19
TJ-TC-273 Fits: TC-165, FTC-165, ST-273 | A (mm): 103.5 | B (mm): 35 | C1 (mm): 14 | C2 (mm): 14 | C3 (mm): 52 | D-1 (mm): 26.99 | D-2 (mm): 26.99 | E (mm): 52 | F (mm): 51.5 | G (mm): 3 | H (mm): 19.03 | ØJ (mm): 19
TJ-TC-310 Fits: TC-190, FTC-190, ST-310 | A (mm): 115.5 | B (mm): 40 | C1 (mm): 15 | C2 (mm): 15 | C3 (mm): 54 | D-1 (mm): 31.75 | D-2 (mm): 31.75 | E (mm): 58 | F (mm): 57.5 | G (mm): 3 | H (mm): 19.03 | ØJ (mm): 19
TJ-FTC-460 Fits: FTC-460, FTC-535, FTC-610 | A (mm): 130 | B (mm): 50 | C1 (mm): 17 | C2 (mm): 17 | C3 (mm): 76.8 | D-1 (mm): 38.1 | D-2 (mm): 38.1 | E (mm): 63.5 | F (mm): 66.5 | G (mm): 5.8 | H (mm): 19.025 | ØJ (mm): 32
TJ-FTC-535 Fits: FTC-460, FTC-535, FTC-610 | A (mm): 130 | B (mm): 50 | C1 (mm): 17 | C2 (mm): 17 | C3 (mm): 76.8 | D-1 (mm): 38.1 | D-2 (mm): 38.1 | E (mm): 63.5 | F (mm): 66.5 | G (mm): 5.8 | H (mm): 19.025 | ØJ (mm): 32
TJ-FTC-610 Fits: FTC-460, FTC-535, FTC-610 | A (mm): 130 | B (mm): 50 | C1 (mm): 17 | C2 (mm): 17 | C3 (mm): 76.8 | D-1 (mm): 38.1 | D-2 (mm): 38.1 | E (mm): 63.5 | F (mm): 66.5 | G (mm): 5.8 | H (mm): 19.025 | ØJ (mm): 32
TJ-FTC-810 Fits: FTC-810, FTC-1000 | A (mm): 140 | B (mm): 70 | C1 (mm): 25 | C2 (mm): 25 | C3 (mm): 92.8 | D-1 (mm): 38.1 | D-2 (mm): 38.1 | E (mm): 68.5 | F (mm): 71.5 | G (mm): 5.8 | H (mm): 19.025 | ØJ (mm): 32
TJ-FTC-1000 Fits: FTC-810, FTC-1000 | A (mm): 140 | B (mm): 70 | C1 (mm): 25 | C2 (mm): 25 | C3 (mm): 92.8 | D-1 (mm): 38.1 | D-2 (mm): 38.1 | E (mm): 68.5 | F (mm): 71.5 | G (mm): 5.8 | H (mm): 19.025 | ØJ (mm): 32
Chuck JawsSamchully
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully Scroll Chuck Hard Top Jaws (TC, FTC, ST)

Brand Samchully·Chuck Jaws

Available part numbers (10)

TJ-TC-165, TJ-TC-190, TJ-TC-230, TJ-TC-273, TJ-TC-310, TJ-FTC-460, TJ-FTC-535, TJ-FTC-610, TJ-FTC-810, TJ-FTC-1000

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TJ-TC-165Fits: TC-165, FTC-165 | A (mm): 67.3 | B (mm): 26 | C1 (mm): 9 | C2 (mm): 9 | C3 (mm): 38 | D-1 (mm): 19.05 | D-2 (mm): 19.05 | E (mm): 34.3 | F (mm): 33 | G (mm): 3 | H (mm): 12.68 | ØJ (mm): 14
TJ-TC-190Fits: TC-190, FTC-190 ST-190 | A (mm): 80.5 | B (mm): 28 | C1 (mm): 10 | C2 (mm): 10 | C3 (mm): 41 | D-1 (mm): 22.225 | D-2 (mm): 22.225 | E (mm): 40.5 | F (mm): 40 | G (mm): 3 | H (mm): 12.68 | ØJ (mm): 17
TJ-TC-230Fits: TC-230, FTC-230, ST-230 | A (mm): 90.5 | B (mm): 32 | C1 (mm): 12 | C2 (mm): 12 | C3 (mm): 48 | D-1 (mm): 26.99 | D-2 (mm): 26.99 | E (mm): 45.5 | F (mm): 45 | G (mm): 3 | H (mm): 19.03 | ØJ (mm): 19
TJ-TC-273Fits: TC-165, FTC-165, ST-273 | A (mm): 103.5 | B (mm): 35 | C1 (mm): 14 | C2 (mm): 14 | C3 (mm): 52 | D-1 (mm): 26.99 | D-2 (mm): 26.99 | E (mm): 52 | F (mm): 51.5 | G (mm): 3 | H (mm): 19.03 | ØJ (mm): 19
TJ-TC-310Fits: TC-190, FTC-190, ST-310 | A (mm): 115.5 | B (mm): 40 | C1 (mm): 15 | C2 (mm): 15 | C3 (mm): 54 | D-1 (mm): 31.75 | D-2 (mm): 31.75 | E (mm): 58 | F (mm): 57.5 | G (mm): 3 | H (mm): 19.03 | ØJ (mm): 19
TJ-FTC-460Fits: FTC-460, FTC-535, FTC-610 | A (mm): 130 | B (mm): 50 | C1 (mm): 17 | C2 (mm): 17 | C3 (mm): 76.8 | D-1 (mm): 38.1 | D-2 (mm): 38.1 | E (mm): 63.5 | F (mm): 66.5 | G (mm): 5.8 | H (mm): 19.025 | ØJ (mm): 32
TJ-FTC-535Fits: FTC-460, FTC-535, FTC-610 | A (mm): 130 | B (mm): 50 | C1 (mm): 17 | C2 (mm): 17 | C3 (mm): 76.8 | D-1 (mm): 38.1 | D-2 (mm): 38.1 | E (mm): 63.5 | F (mm): 66.5 | G (mm): 5.8 | H (mm): 19.025 | ØJ (mm): 32
TJ-FTC-610Fits: FTC-460, FTC-535, FTC-610 | A (mm): 130 | B (mm): 50 | C1 (mm): 17 | C2 (mm): 17 | C3 (mm): 76.8 | D-1 (mm): 38.1 | D-2 (mm): 38.1 | E (mm): 63.5 | F (mm): 66.5 | G (mm): 5.8 | H (mm): 19.025 | ØJ (mm): 32
TJ-FTC-810Fits: FTC-810, FTC-1000 | A (mm): 140 | B (mm): 70 | C1 (mm): 25 | C2 (mm): 25 | C3 (mm): 92.8 | D-1 (mm): 38.1 | D-2 (mm): 38.1 | E (mm): 68.5 | F (mm): 71.5 | G (mm): 5.8 | H (mm): 19.025 | ØJ (mm): 32
TJ-FTC-1000Fits: FTC-810, FTC-1000 | A (mm): 140 | B (mm): 70 | C1 (mm): 25 | C2 (mm): 25 | C3 (mm): 92.8 | D-1 (mm): 38.1 | D-2 (mm): 38.1 | E (mm): 68.5 | F (mm): 71.5 | G (mm): 5.8 | H (mm): 19.025 | ØJ (mm): 32
