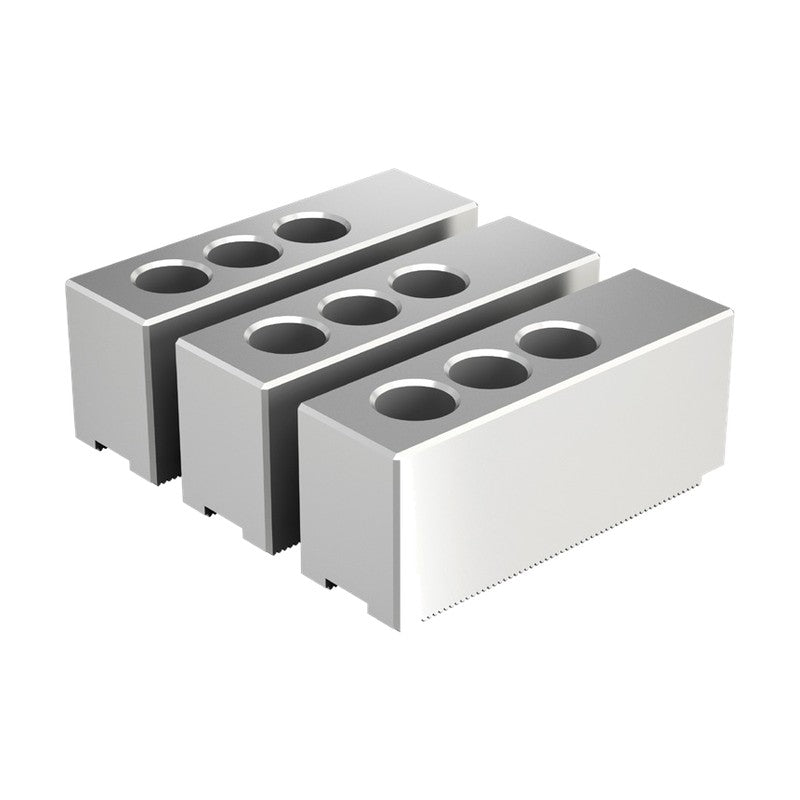

Samchully PAC Chuck Soft Jaws

Samchully PAC Chuck Soft Jaws

Soft jaws for PAC mega-bore pneumatic self-contained chucks.

Specifications

Serration Pitch 3.0x 60° 3/32x 90°
SB-470 Fits: PAC-47191 | S-1 (mm): 170 | S-2 (mm): 60 | S-3 (mm): 60 | S-4 (mm): 25.5 H7 | S-5 (mm): 7 | S-6 (mm): 25 | S-7 (mm): 40 | S-8 (mm): 32 | S-9 (mm): 22 | S-10 (mm): 55 | S-11 (mm): 156 / 157.2 | S-12: M20
SB-530 Fits: PAC-50230 | S-1 (mm): 195 | S-2 (mm): 60 | S-3 (mm): 80 | S-4 (mm): 25.5 H7 | S-5 (mm): 7 | S-6 (mm): 37 | S-7 (mm): 40 | S-8 (mm): 32 | S-9 (mm): 22 | S-10 (mm): 75 | S-11 (mm): 183 / 185.7 | S-12: M20
SB-600 Fits: PAC-60275 | S-1 (mm): 195 | S-2 (mm): 60 | S-3 (mm): 80 | S-4 (mm): 25.5 H7 | S-5 (mm): 7 | S-6 (mm): 37 | S-7 (mm): 40 | S-8 (mm): 32 | S-9 (mm): 22 | S-10 (mm): 75 | S-11 (mm): 183 / 185.7 | S-12: M20
SB-630 Fits: PAC-63325 | S-1 (mm): 240 | S-2 (mm): 75 | S-3 (mm): 80 | S-4 (mm): 30 H7 | S-5 (mm): 7 | S-6 (mm): 42 | S-7 (mm): 65 | S-8 (mm): 39 | S-9 (mm): 26 | S-10 (mm): 75 | S-11 (mm): 180 / 181 | S-12: M24
SB-1000 Fits: PAC-85375 PAC-100560 | S-1 (mm): 300 | S-2 (mm): 75 | S-3 (mm): 90 | S-4 (mm): 30 H7 | S-5 (mm): 7.5 | S-6 (mm): 68 | S-7 (mm): 65 | S-8 (mm): 39 | S-9 (mm): 26 | S-10 (mm): 85 | S-11 (mm): 254.8 / 255 | S-12: M24
Chuck JawsSamchully
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully PAC Chuck Soft Jaws

Brand Samchully·Chuck Jaws

Available part numbers (5)

SB-470, SB-530, SB-600, SB-630, SB-1000

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SB-470Fits: PAC-47191 | S-1 (mm): 170 | S-2 (mm): 60 | S-3 (mm): 60 | S-4 (mm): 25.5 H7 | S-5 (mm): 7 | S-6 (mm): 25 | S-7 (mm): 40 | S-8 (mm): 32 | S-9 (mm): 22 | S-10 (mm): 55 | S-11 (mm): 156 / 157.2 | S-12: M20
SB-530Fits: PAC-50230 | S-1 (mm): 195 | S-2 (mm): 60 | S-3 (mm): 80 | S-4 (mm): 25.5 H7 | S-5 (mm): 7 | S-6 (mm): 37 | S-7 (mm): 40 | S-8 (mm): 32 | S-9 (mm): 22 | S-10 (mm): 75 | S-11 (mm): 183 / 185.7 | S-12: M20
SB-600Fits: PAC-60275 | S-1 (mm): 195 | S-2 (mm): 60 | S-3 (mm): 80 | S-4 (mm): 25.5 H7 | S-5 (mm): 7 | S-6 (mm): 37 | S-7 (mm): 40 | S-8 (mm): 32 | S-9 (mm): 22 | S-10 (mm): 75 | S-11 (mm): 183 / 185.7 | S-12: M20
SB-630Fits: PAC-63325 | S-1 (mm): 240 | S-2 (mm): 75 | S-3 (mm): 80 | S-4 (mm): 30 H7 | S-5 (mm): 7 | S-6 (mm): 42 | S-7 (mm): 65 | S-8 (mm): 39 | S-9 (mm): 26 | S-10 (mm): 75 | S-11 (mm): 180 / 181 | S-12: M24
SB-1000Fits: PAC-85375 PAC-100560 | S-1 (mm): 300 | S-2 (mm): 75 | S-3 (mm): 90 | S-4 (mm): 30 H7 | S-5 (mm): 7.5 | S-6 (mm): 68 | S-7 (mm): 65 | S-8 (mm): 39 | S-9 (mm): 26 | S-10 (mm): 85 | S-11 (mm): 254.8 / 255 | S-12: M24
