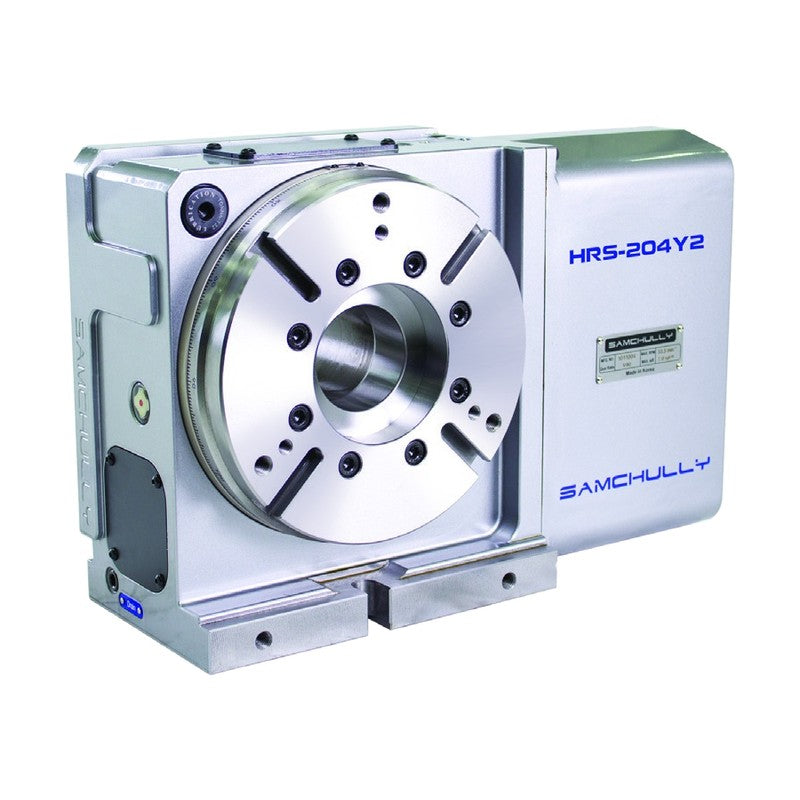

Samchully 1-Axis Hydraulic NC Rotary Table HRS Series (YASKAWA Motor, NeoCon-S Controller)

Samchully 1-Axis Hydraulic NC Rotary Table HRS Series (YASKAWA Motor, NeoCon-S Controller)

Hydraulic-clamp 1-axis NC rotary tables with YASKAWA servo motor for the NeoCon-S controller, table diameters 200 to 658 mm.

Key features

  • For NeoCon-S controller
  • Hydraulic clamp 25~35 kgf/cm²
  • High clamping force by double piston
  • L type with alternate motor side available
HRS-204Y4 Motor Side: Standard | Table Dia. (mm): Ø200 | Center Height (mm): 170 | Table Hole Dia. (mm): Ø75H7 | Spindle Through Hole Dia. (mm): Ø45H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 720 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7P-15A7A6S | Weight (kg): 79
HRS-204LY4 Motor Side: L type | Table Dia. (mm): Ø200 | Center Height (mm): 170 | Table Hole Dia. (mm): Ø75H7 | Spindle Through Hole Dia. (mm): Ø45H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 720 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7P-15A7A6S | Weight (kg): 79
HRS-254Y4 Motor Side: Standard | Table Dia. (mm): Ø240 | Center Height (mm): 185 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø70H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 1500 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7P-15A7A6S | Weight (kg): 116
HRS-254LY4 Motor Side: L type | Table Dia. (mm): Ø240 | Center Height (mm): 185 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø70H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 1500 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7P-15A7A6S | Weight (kg): 116
HRS-254Y8 Motor Side: Standard | Table Dia. (mm): Ø240 | Center Height (mm): 185 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø70H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 1500 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7G-13A7A6S | Weight (kg): 116
HRS-254LY8 Motor Side: L type | Table Dia. (mm): Ø240 | Center Height (mm): 185 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø70H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 1500 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7G-13A7A6S | Weight (kg): 116
HRS-324Y4 Motor Side: Standard | Table Dia. (mm): Ø310 | Center Height (mm): 225 | Table Hole Dia. (mm): Ø130H7 | Spindle Through Hole Dia. (mm): Ø105H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 2300 | Max. Spindle Speed (min-1): 25 (motor 3000 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7P-15A7A6S | Weight (kg): 180
HRS-324LY4 Motor Side: L type | Table Dia. (mm): Ø310 | Center Height (mm): 225 | Table Hole Dia. (mm): Ø130H7 | Spindle Through Hole Dia. (mm): Ø105H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 2300 | Max. Spindle Speed (min-1): 25 (motor 3000 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7P-15A7A6S | Weight (kg): 180
HRS-324Y8 Motor Side: Standard | Table Dia. (mm): Ø310 | Center Height (mm): 225 | Table Hole Dia. (mm): Ø130H7 | Spindle Through Hole Dia. (mm): Ø105H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 2300 | Max. Spindle Speed (min-1): 25 (motor 3000 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7G-13A7A6S | Weight (kg): 180
HRS-324LY8 Motor Side: L type | Table Dia. (mm): Ø310 | Center Height (mm): 225 | Table Hole Dia. (mm): Ø130H7 | Spindle Through Hole Dia. (mm): Ø105H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 2300 | Max. Spindle Speed (min-1): 25 (motor 3000 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7G-13A7A6S | Weight (kg): 180
HRS-430Y28 Motor Side: Standard | Table Dia. (mm): Ø432 | Center Height (mm): 283 | Table Hole Dia. (mm): Ø220H7 | Spindle Through Hole Dia. (mm): Ø194H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 2500 | Max. Spindle Speed (min-1): 16.66 (motor 2000 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7G-44A7A6S | Weight (kg): 350
HRS-430LY28 Motor Side: L type | Table Dia. (mm): Ø432 | Center Height (mm): 283 | Table Hole Dia. (mm): Ø220H7 | Spindle Through Hole Dia. (mm): Ø194H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 2500 | Max. Spindle Speed (min-1): 16.66 (motor 2000 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7G-44A7A6S | Weight (kg): 350
HRS-515Y28 Motor Side: Standard | Table Dia. (mm): Ø518 | Center Height (mm): 335 | Table Hole Dia. (mm): Ø290H7 | Spindle Through Hole Dia. (mm): Ø264H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 3200 | Max. Spindle Speed (min-1): 16.66 (motor 2000 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7G-44A7A6S | Weight (kg): 430
HRS-515LY28 Motor Side: L type | Table Dia. (mm): Ø518 | Center Height (mm): 335 | Table Hole Dia. (mm): Ø290H7 | Spindle Through Hole Dia. (mm): Ø264H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 3200 | Max. Spindle Speed (min-1): 16.66 (motor 2000 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7G-44A7A6S | Weight (kg): 430
HRS-650Y28 Motor Side: Standard | Table Dia. (mm): Ø658 | Center Height (mm): 410 | Table Hole Dia. (mm): Ø400H7 | Spindle Through Hole Dia. (mm): Ø372H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 4000 | Max. Spindle Speed (min-1): 11.11 (motor 1333 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7G-44A7A6S | Weight (kg): 750
HRS-650LY28 Motor Side: L type | Table Dia. (mm): Ø658 | Center Height (mm): 410 | Table Hole Dia. (mm): Ø400H7 | Spindle Through Hole Dia. (mm): Ø372H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 4000 | Max. Spindle Speed (min-1): 11.11 (motor 1333 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7G-44A7A6S | Weight (kg): 750
NC Rotary TablesSamchully
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully 1-Axis Hydraulic NC Rotary Table HRS Series (YASKAWA Motor, NeoCon-S Controller)

Brand Samchully·NC Rotary Tables

Available part numbers (16)

HRS-204Y4, HRS-204LY4, HRS-254Y4, HRS-254LY4, HRS-254Y8, HRS-254LY8, HRS-324Y4, HRS-324LY4, HRS-324Y8, HRS-324LY8 + 6 more — see full table ↓

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HRS-204Y4Motor Side: Standard | Table Dia. (mm): Ø200 | Center Height (mm): 170 | Table Hole Dia. (mm): Ø75H7 | Spindle Through Hole Dia. (mm): Ø45H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 720 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7P-15A7A6S | Weight (kg): 79
HRS-204LY4Motor Side: L type | Table Dia. (mm): Ø200 | Center Height (mm): 170 | Table Hole Dia. (mm): Ø75H7 | Spindle Through Hole Dia. (mm): Ø45H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 720 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7P-15A7A6S | Weight (kg): 79
HRS-254Y4Motor Side: Standard | Table Dia. (mm): Ø240 | Center Height (mm): 185 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø70H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 1500 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7P-15A7A6S | Weight (kg): 116
HRS-254LY4Motor Side: L type | Table Dia. (mm): Ø240 | Center Height (mm): 185 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø70H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 1500 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7P-15A7A6S | Weight (kg): 116
HRS-254Y8Motor Side: Standard | Table Dia. (mm): Ø240 | Center Height (mm): 185 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø70H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 1500 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7G-13A7A6S | Weight (kg): 116
HRS-254LY8Motor Side: L type | Table Dia. (mm): Ø240 | Center Height (mm): 185 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø70H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 1500 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7G-13A7A6S | Weight (kg): 116
HRS-324Y4Motor Side: Standard | Table Dia. (mm): Ø310 | Center Height (mm): 225 | Table Hole Dia. (mm): Ø130H7 | Spindle Through Hole Dia. (mm): Ø105H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 2300 | Max. Spindle Speed (min-1): 25 (motor 3000 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7P-15A7A6S | Weight (kg): 180
HRS-324LY4Motor Side: L type | Table Dia. (mm): Ø310 | Center Height (mm): 225 | Table Hole Dia. (mm): Ø130H7 | Spindle Through Hole Dia. (mm): Ø105H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 2300 | Max. Spindle Speed (min-1): 25 (motor 3000 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7P-15A7A6S | Weight (kg): 180
HRS-324Y8Motor Side: Standard | Table Dia. (mm): Ø310 | Center Height (mm): 225 | Table Hole Dia. (mm): Ø130H7 | Spindle Through Hole Dia. (mm): Ø105H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 2300 | Max. Spindle Speed (min-1): 25 (motor 3000 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7G-13A7A6S | Weight (kg): 180
HRS-324LY8Motor Side: L type | Table Dia. (mm): Ø310 | Center Height (mm): 225 | Table Hole Dia. (mm): Ø130H7 | Spindle Through Hole Dia. (mm): Ø105H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 2300 | Max. Spindle Speed (min-1): 25 (motor 3000 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7G-13A7A6S | Weight (kg): 180
HRS-430Y28Motor Side: Standard | Table Dia. (mm): Ø432 | Center Height (mm): 283 | Table Hole Dia. (mm): Ø220H7 | Spindle Through Hole Dia. (mm): Ø194H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 2500 | Max. Spindle Speed (min-1): 16.66 (motor 2000 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7G-44A7A6S | Weight (kg): 350
HRS-430LY28Motor Side: L type | Table Dia. (mm): Ø432 | Center Height (mm): 283 | Table Hole Dia. (mm): Ø220H7 | Spindle Through Hole Dia. (mm): Ø194H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 2500 | Max. Spindle Speed (min-1): 16.66 (motor 2000 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7G-44A7A6S | Weight (kg): 350
HRS-515Y28Motor Side: Standard | Table Dia. (mm): Ø518 | Center Height (mm): 335 | Table Hole Dia. (mm): Ø290H7 | Spindle Through Hole Dia. (mm): Ø264H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 3200 | Max. Spindle Speed (min-1): 16.66 (motor 2000 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7G-44A7A6S | Weight (kg): 430
HRS-515LY28Motor Side: L type | Table Dia. (mm): Ø518 | Center Height (mm): 335 | Table Hole Dia. (mm): Ø290H7 | Spindle Through Hole Dia. (mm): Ø264H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 3200 | Max. Spindle Speed (min-1): 16.66 (motor 2000 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7G-44A7A6S | Weight (kg): 430
HRS-650Y28Motor Side: Standard | Table Dia. (mm): Ø658 | Center Height (mm): 410 | Table Hole Dia. (mm): Ø400H7 | Spindle Through Hole Dia. (mm): Ø372H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 4000 | Max. Spindle Speed (min-1): 11.11 (motor 1333 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7G-44A7A6S | Weight (kg): 750
HRS-650LY28Motor Side: L type | Table Dia. (mm): Ø658 | Center Height (mm): 410 | Table Hole Dia. (mm): Ø400H7 | Spindle Through Hole Dia. (mm): Ø372H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 4000 | Max. Spindle Speed (min-1): 11.11 (motor 1333 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7G-44A7A6S | Weight (kg): 750
