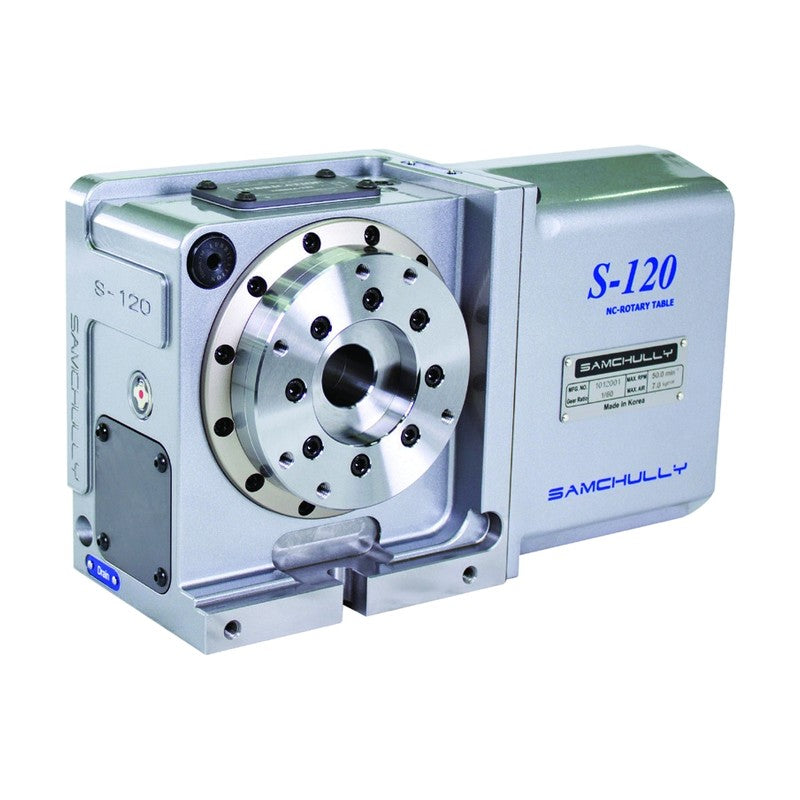

Samchully 1-Axis NC Rotary Table S Series (YASKAWA Motor, NeoCon-S Controller)

Samchully 1-Axis NC Rotary Table S Series (YASKAWA Motor, NeoCon-S Controller)

Pneumatic-clamp 1-axis NC rotary tables with YASKAWA servo motor for use with the NeoCon-S stand-alone controller, table diameters 124 to 310 mm.

Key features

  • For NeoCon-S controller
  • Vertical and horizontal mounting
  • High clamping force by double piston
  • L type with alternate motor side available
S-120Y2 Motor Side: Standard | Table Dia. (mm): Ø124 | Center Height (mm): 120 | Table Hole Dia. (mm): Ø60H7 | Spindle Through Hole Dia. (mm): Ø30H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 150 | Max. Spindle Speed (min-1): 50 (motor 3000 min-1) | Gear Ratio: 1/60 | Indexing Accuracy (sec): 30 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7J-08A7A6S | Weight (kg): 35
S-170Y2 Motor Side: Standard | Table Dia. (mm): Ø175 | Center Height (mm): 140 | Table Hole Dia. (mm): Ø60H7 | Spindle Through Hole Dia. (mm): Ø40H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 380 | Max. Spindle Speed (min-1): 41.6 (motor 3000 min-1) | Gear Ratio: 1/72 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7J-08A7A6S | Weight (kg): 52
S-170LY2 Motor Side: L type | Table Dia. (mm): Ø175 | Center Height (mm): 140 | Table Hole Dia. (mm): Ø60H7 | Spindle Through Hole Dia. (mm): Ø40H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 380 | Max. Spindle Speed (min-1): 41.6 (motor 3000 min-1) | Gear Ratio: 1/72 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7J-08A7A6S | Weight (kg): 52
S-200Y2 Motor Side: Standard | Table Dia. (mm): Ø200 | Center Height (mm): 170 | Table Hole Dia. (mm): Ø75H7 | Spindle Through Hole Dia. (mm): Ø45H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 480 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7J-08A7A6S | Weight (kg): 79
S-200LY2 Motor Side: L type | Table Dia. (mm): Ø200 | Center Height (mm): 170 | Table Hole Dia. (mm): Ø75H7 | Spindle Through Hole Dia. (mm): Ø45H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 480 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7J-08A7A6S | Weight (kg): 79
S-200Y4 Motor Side: Standard | Table Dia. (mm): Ø200 | Center Height (mm): 170 | Table Hole Dia. (mm): Ø75H7 | Spindle Through Hole Dia. (mm): Ø45H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 480 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7P-15A7A6S | Weight (kg): 79
S-200LY4 Motor Side: L type | Table Dia. (mm): Ø200 | Center Height (mm): 170 | Table Hole Dia. (mm): Ø75H7 | Spindle Through Hole Dia. (mm): Ø45H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 480 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7P-15A7A6S | Weight (kg): 79
S-250Y4 Motor Side: Standard | Table Dia. (mm): Ø240 | Center Height (mm): 185 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø70H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 750 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7P-15A7A6S | Weight (kg): 100
S-250LY4 Motor Side: L type | Table Dia. (mm): Ø240 | Center Height (mm): 185 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø70H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 750 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7P-15A7A6S | Weight (kg): 100
S-250Y8 Motor Side: Standard | Table Dia. (mm): Ø240 | Center Height (mm): 185 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø70H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 750 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7G-13A7A6S | Weight (kg): 105
S-250LY8 Motor Side: L type | Table Dia. (mm): Ø240 | Center Height (mm): 185 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø70H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 750 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7G-13A7A6S | Weight (kg): 105
S-320Y4 Motor Side: Standard | Table Dia. (mm): Ø310 | Center Height (mm): 225 | Table Hole Dia. (mm): Ø130H7 | Spindle Through Hole Dia. (mm): Ø105H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 1440 | Max. Spindle Speed (min-1): 25 (motor 3000 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7P-15A7A6S | Weight (kg): 170
S-320LY4 Motor Side: L type | Table Dia. (mm): Ø310 | Center Height (mm): 225 | Table Hole Dia. (mm): Ø130H7 | Spindle Through Hole Dia. (mm): Ø105H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 1440 | Max. Spindle Speed (min-1): 25 (motor 3000 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7P-15A7A6S | Weight (kg): 170
S-320Y8 Motor Side: Standard | Table Dia. (mm): Ø310 | Center Height (mm): 225 | Table Hole Dia. (mm): Ø130H7 | Spindle Through Hole Dia. (mm): Ø105H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 1440 | Max. Spindle Speed (min-1): 25 (motor 3000 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7G-13A7A6S | Weight (kg): 175
S-320LY8 Motor Side: L type | Table Dia. (mm): Ø310 | Center Height (mm): 225 | Table Hole Dia. (mm): Ø130H7 | Spindle Through Hole Dia. (mm): Ø105H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 1440 | Max. Spindle Speed (min-1): 25 (motor 3000 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7G-13A7A6S | Weight (kg): 175
NC Rotary TablesSamchully
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully 1-Axis NC Rotary Table S Series (YASKAWA Motor, NeoCon-S Controller)

Brand Samchully·NC Rotary Tables

Available part numbers (15)

S-120Y2, S-170Y2, S-170LY2, S-200Y2, S-200LY2, S-200Y4, S-200LY4, S-250Y4, S-250LY4, S-250Y8 + 5 more — see full table ↓

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
S-120Y2Motor Side: Standard | Table Dia. (mm): Ø124 | Center Height (mm): 120 | Table Hole Dia. (mm): Ø60H7 | Spindle Through Hole Dia. (mm): Ø30H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 150 | Max. Spindle Speed (min-1): 50 (motor 3000 min-1) | Gear Ratio: 1/60 | Indexing Accuracy (sec): 30 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7J-08A7A6S | Weight (kg): 35
S-170Y2Motor Side: Standard | Table Dia. (mm): Ø175 | Center Height (mm): 140 | Table Hole Dia. (mm): Ø60H7 | Spindle Through Hole Dia. (mm): Ø40H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 380 | Max. Spindle Speed (min-1): 41.6 (motor 3000 min-1) | Gear Ratio: 1/72 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7J-08A7A6S | Weight (kg): 52
S-170LY2Motor Side: L type | Table Dia. (mm): Ø175 | Center Height (mm): 140 | Table Hole Dia. (mm): Ø60H7 | Spindle Through Hole Dia. (mm): Ø40H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 380 | Max. Spindle Speed (min-1): 41.6 (motor 3000 min-1) | Gear Ratio: 1/72 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7J-08A7A6S | Weight (kg): 52
S-200Y2Motor Side: Standard | Table Dia. (mm): Ø200 | Center Height (mm): 170 | Table Hole Dia. (mm): Ø75H7 | Spindle Through Hole Dia. (mm): Ø45H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 480 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7J-08A7A6S | Weight (kg): 79
S-200LY2Motor Side: L type | Table Dia. (mm): Ø200 | Center Height (mm): 170 | Table Hole Dia. (mm): Ø75H7 | Spindle Through Hole Dia. (mm): Ø45H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 480 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7J-08A7A6S | Weight (kg): 79
S-200Y4Motor Side: Standard | Table Dia. (mm): Ø200 | Center Height (mm): 170 | Table Hole Dia. (mm): Ø75H7 | Spindle Through Hole Dia. (mm): Ø45H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 480 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7P-15A7A6S | Weight (kg): 79
S-200LY4Motor Side: L type | Table Dia. (mm): Ø200 | Center Height (mm): 170 | Table Hole Dia. (mm): Ø75H7 | Spindle Through Hole Dia. (mm): Ø45H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 480 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7P-15A7A6S | Weight (kg): 79
S-250Y4Motor Side: Standard | Table Dia. (mm): Ø240 | Center Height (mm): 185 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø70H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 750 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7P-15A7A6S | Weight (kg): 100
S-250LY4Motor Side: L type | Table Dia. (mm): Ø240 | Center Height (mm): 185 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø70H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 750 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7P-15A7A6S | Weight (kg): 100
S-250Y8Motor Side: Standard | Table Dia. (mm): Ø240 | Center Height (mm): 185 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø70H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 750 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7G-13A7A6S | Weight (kg): 105
S-250LY8Motor Side: L type | Table Dia. (mm): Ø240 | Center Height (mm): 185 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø70H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 750 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7G-13A7A6S | Weight (kg): 105
S-320Y4Motor Side: Standard | Table Dia. (mm): Ø310 | Center Height (mm): 225 | Table Hole Dia. (mm): Ø130H7 | Spindle Through Hole Dia. (mm): Ø105H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 1440 | Max. Spindle Speed (min-1): 25 (motor 3000 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7P-15A7A6S | Weight (kg): 170
S-320LY4Motor Side: L type | Table Dia. (mm): Ø310 | Center Height (mm): 225 | Table Hole Dia. (mm): Ø130H7 | Spindle Through Hole Dia. (mm): Ø105H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 1440 | Max. Spindle Speed (min-1): 25 (motor 3000 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7P-15A7A6S | Weight (kg): 170
S-320Y8Motor Side: Standard | Table Dia. (mm): Ø310 | Center Height (mm): 225 | Table Hole Dia. (mm): Ø130H7 | Spindle Through Hole Dia. (mm): Ø105H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 1440 | Max. Spindle Speed (min-1): 25 (motor 3000 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7G-13A7A6S | Weight (kg): 175
S-320LY8Motor Side: L type | Table Dia. (mm): Ø310 | Center Height (mm): 225 | Table Hole Dia. (mm): Ø130H7 | Spindle Through Hole Dia. (mm): Ø105H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 1440 | Max. Spindle Speed (min-1): 25 (motor 3000 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7G-13A7A6S | Weight (kg): 175
