Samchully 1-Axis Rear Mounted Motor Zero Backlash NC Rotary Table RB-200Y4

Samchully 1-Axis Rear Mounted Motor Zero Backlash NC Rotary Table RB-200Y4

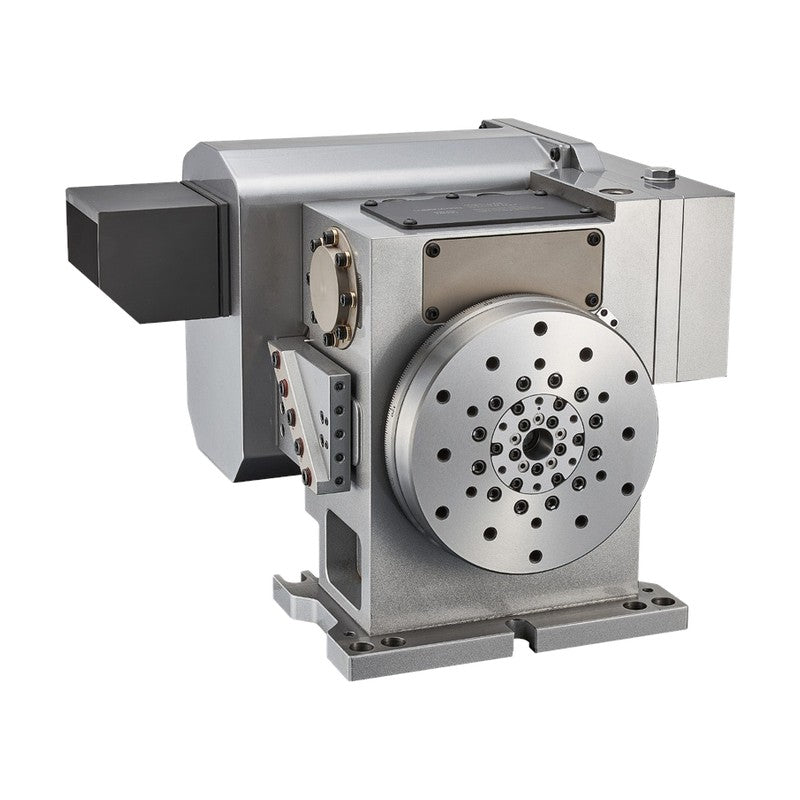

Ø200 mm roller gear cam NC rotary table with rear mounted YASKAWA motor for the NeoCon-S controller.

Key features

  • Rear mounted motor
  • Roller gear cam, zero backlash
  • For NeoCon-S controller
RB-200Y4 Table Dia. (mm): Ø200 | Center Height (mm): 170 | Table Hole Dia. (mm): Ø75 | Spindle Through Hole Dia. (mm): Ø55 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 300 | Max. Spindle Speed (min-1): 50 | Gear Ratio: 1/60 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7P-15A7A6S | Weight (kg): 80
NC Rotary TablesSamchully
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully 1-Axis Rear Mounted Motor Zero Backlash NC Rotary Table RB-200Y4

Brand Samchully·NC Rotary Tables

Available part numbers (1)

RB-200Y4

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RB-200Y4Table Dia. (mm): Ø200 | Center Height (mm): 170 | Table Hole Dia. (mm): Ø75 | Spindle Through Hole Dia. (mm): Ø55 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 300 | Max. Spindle Speed (min-1): 50 | Gear Ratio: 1/60 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7P-15A7A6S | Weight (kg): 80
