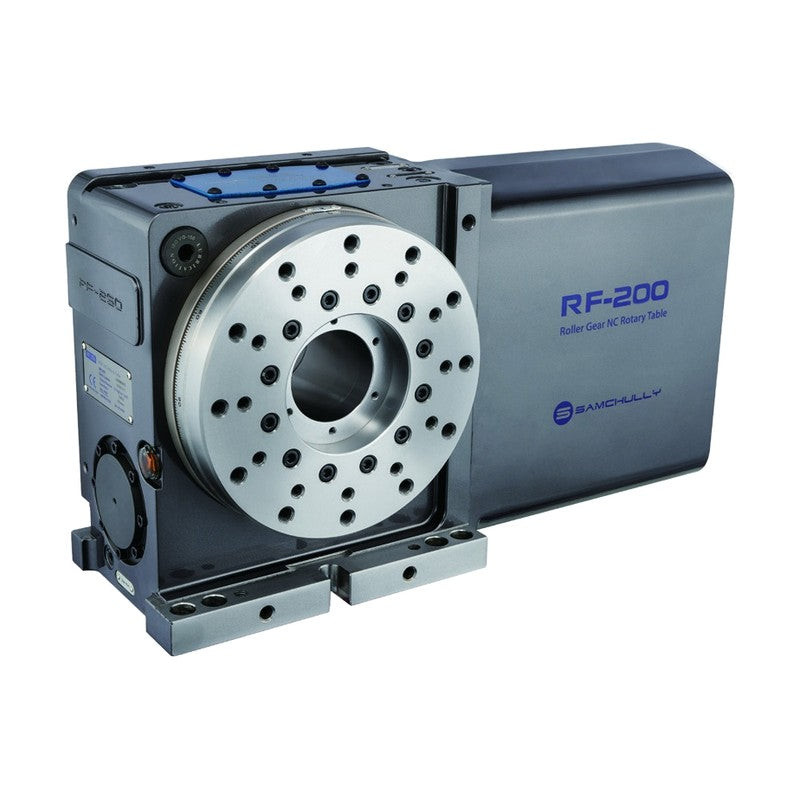

Samchully 1-Axis Zero Backlash NC Rotary Table RF Series (YASKAWA Motor)

Samchully 1-Axis Zero Backlash NC Rotary Table RF Series (YASKAWA Motor)

Roller gear cam 1-axis NC rotary tables with zero backlash and YASKAWA servo motor for the NeoCon-S controller.

Key features

  • Roller gear cam drive
  • Zero backlash
  • For NeoCon-S controller
RF-200Y4 Table Dia. (mm): Ø200 | Center Height (mm): 170 | Table Hole Dia. (mm): Ø75H7 | Spindle Through Hole Dia. (mm): Ø54.4H7 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 310 | Max. Spindle Speed (min-1): 50 (motor 2500 min-1) | Gear Ratio: 1/50 | Indexing Accuracy (sec): 30 | Repeatability (sec): 8 | Servo Motor: YASKAWA SGM7P-15A7A6S | Weight (kg): 85 | Allowable Work Inertia (kgm2): 0.5
RF-250Y8 Table Dia. (mm): Ø240 | Center Height (mm): 185 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø70H7 | Clamp Method: Pneumatic 5~7 kgf/cm² | Max. Spindle Speed (min-1): 50 (motor 3000 min-1) | Gear Ratio: 1/60 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7G-13A7A6S | Allowable Work Inertia (kgm2): 3.12 | Allowable Load Vertical (kg): 125
RF-320Y8 Table Dia. (mm): Ø314 | Center Height (mm): 225 | Table Hole Dia. (mm): Ø140H7 | Spindle Through Hole Dia. (mm): Ø105H7 | Clamp Method: Pneumatic 5~7 kgf/cm² | Max. Spindle Speed (min-1): 41.66 (motor 3000 min-1) | Gear Ratio: 1/72 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7G-13A7A6S | Allowable Work Inertia (kgm2): 4.49 | Allowable Load Vertical (kg): 180
NC Rotary TablesSamchully
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully 1-Axis Zero Backlash NC Rotary Table RF Series (YASKAWA Motor)

Brand Samchully·NC Rotary Tables

Available part numbers (3)

RF-200Y4, RF-250Y8, RF-320Y8

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RF-200Y4Table Dia. (mm): Ø200 | Center Height (mm): 170 | Table Hole Dia. (mm): Ø75H7 | Spindle Through Hole Dia. (mm): Ø54.4H7 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 310 | Max. Spindle Speed (min-1): 50 (motor 2500 min-1) | Gear Ratio: 1/50 | Indexing Accuracy (sec): 30 | Repeatability (sec): 8 | Servo Motor: YASKAWA SGM7P-15A7A6S | Weight (kg): 85 | Allowable Work Inertia (kgm2): 0.5
RF-250Y8Table Dia. (mm): Ø240 | Center Height (mm): 185 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø70H7 | Clamp Method: Pneumatic 5~7 kgf/cm² | Max. Spindle Speed (min-1): 50 (motor 3000 min-1) | Gear Ratio: 1/60 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7G-13A7A6S | Allowable Work Inertia (kgm2): 3.12 | Allowable Load Vertical (kg): 125
RF-320Y8Table Dia. (mm): Ø314 | Center Height (mm): 225 | Table Hole Dia. (mm): Ø140H7 | Spindle Through Hole Dia. (mm): Ø105H7 | Clamp Method: Pneumatic 5~7 kgf/cm² | Max. Spindle Speed (min-1): 41.66 (motor 3000 min-1) | Gear Ratio: 1/72 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: YASKAWA SGM7G-13A7A6S | Allowable Work Inertia (kgm2): 4.49 | Allowable Load Vertical (kg): 180
