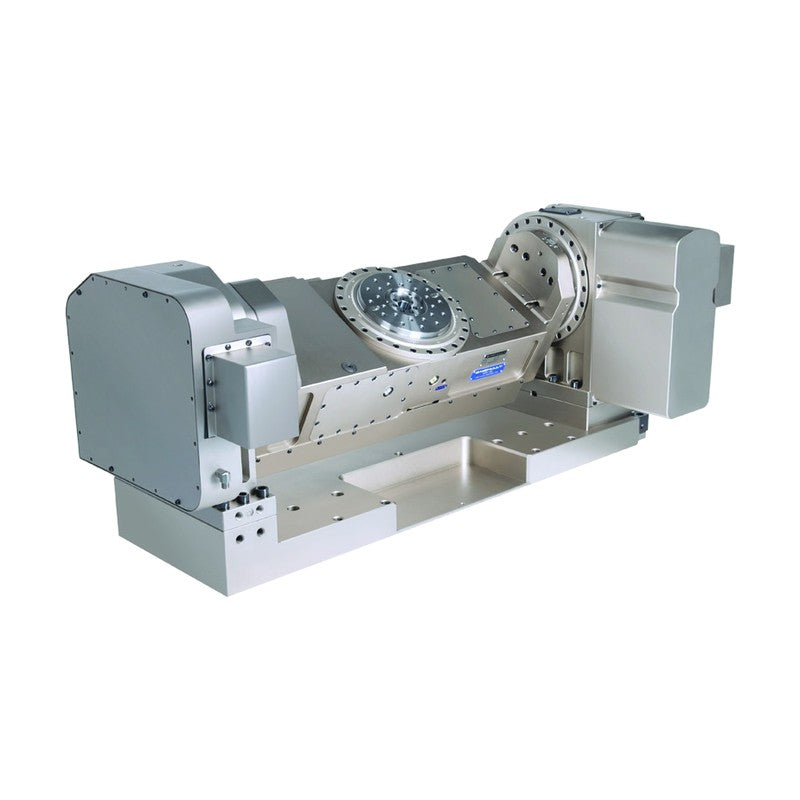

Samchully 2-Axis 1-Spindle Tilting NC Rotary Table MTR1 Series (FANUC Motor)

Samchully 2-Axis 1-Spindle Tilting NC Rotary Table MTR1 Series (FANUC Motor)

Single-spindle trunnion tilting NC rotary tables with FANUC motors for workpieces up to Ø750 / Ø800 mm.

Key features

  • Single spindle trunnion tilting
  • Workpieces up to Ø800 mm
  • Strong hydraulic clamp
  • Easy jig design
MTR1-25475FF Spindle Dia. (mm): Ø178 | Center Height (mm): 430 | Spindle Internal Dia. (mm): Ø100 | Spindle Through Hole Dia. (mm): Ø26 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 1500 (rotary) / 2600 (tilt) | Max. Spindle Speed (min-1): 33.3 (rotary) / 25 (tilt) | Gear Ratio: 1/90 (rotary) / 1/120 (tilt) | Indexing Accuracy (sec): 40 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 4 (tilt) | Tilting Range: -20°~+120° | Servo Motor: FANUC αiF4/5000 (rotary) / αiF8/3000 (tilt) | Weight (kg): 650
MTR1-32480FF Spindle Dia. (mm): Ø220 | Center Height (mm): 449 | Spindle Internal Dia. (mm): Ø100 | Spindle Through Hole Dia. (mm): Ø32 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 1500 (rotary) / 2600 (tilt) | Max. Spindle Speed (min-1): 25 (rotary) / 25 (tilt) | Gear Ratio: 1/120 (rotary) / 1/120 (tilt) | Indexing Accuracy (sec): 40 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 4 (tilt) | Tilting Range: -20°~120° | Servo Motor: FANUC αiF4/5000 (rotary) / αiF8/3000 (tilt) | Weight (kg): 900
NC Rotary TablesSamchully
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully 2-Axis 1-Spindle Tilting NC Rotary Table MTR1 Series (FANUC Motor)

Brand Samchully·NC Rotary Tables

Available part numbers (2)

MTR1-25475FF, MTR1-32480FF

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MTR1-25475FFSpindle Dia. (mm): Ø178 | Center Height (mm): 430 | Spindle Internal Dia. (mm): Ø100 | Spindle Through Hole Dia. (mm): Ø26 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 1500 (rotary) / 2600 (tilt) | Max. Spindle Speed (min-1): 33.3 (rotary) / 25 (tilt) | Gear Ratio: 1/90 (rotary) / 1/120 (tilt) | Indexing Accuracy (sec): 40 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 4 (tilt) | Tilting Range: -20°~+120° | Servo Motor: FANUC αiF4/5000 (rotary) / αiF8/3000 (tilt) | Weight (kg): 650
MTR1-32480FFSpindle Dia. (mm): Ø220 | Center Height (mm): 449 | Spindle Internal Dia. (mm): Ø100 | Spindle Through Hole Dia. (mm): Ø32 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 1500 (rotary) / 2600 (tilt) | Max. Spindle Speed (min-1): 25 (rotary) / 25 (tilt) | Gear Ratio: 1/120 (rotary) / 1/120 (tilt) | Indexing Accuracy (sec): 40 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 4 (tilt) | Tilting Range: -20°~120° | Servo Motor: FANUC αiF4/5000 (rotary) / αiF8/3000 (tilt) | Weight (kg): 900
