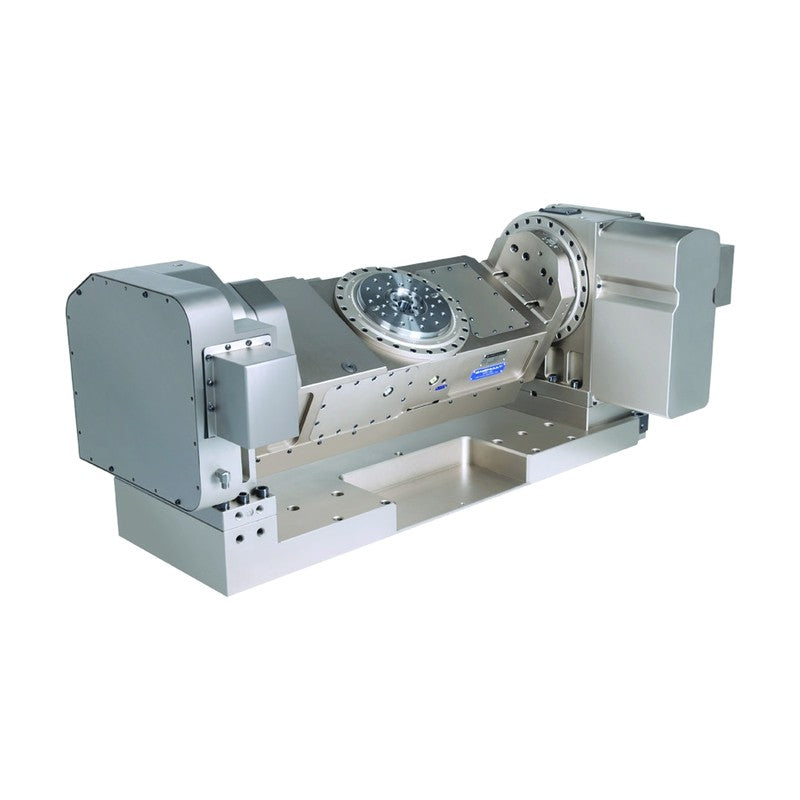

Samchully 2-Axis 1-Spindle Tilting NC Rotary Table MTR1 Series (YASKAWA Motor)

Samchully 2-Axis 1-Spindle Tilting NC Rotary Table MTR1 Series (YASKAWA Motor)

Single-spindle trunnion tilting NC rotary tables with YASKAWA motors for workpieces up to Ø750 / Ø800 mm.

Key features

  • Single spindle trunnion tilting
  • Strong hydraulic clamp
  • For NeoCon-T controller
MTR1-20464YY Spindle Dia. (mm): Ø140 | Table Height (mm): 360 | Spindle Internal Dia. (mm): Ø26 | Spindle Through Hole Dia. (mm): Ø26 | Clamp Method: Hydraulic 21~25 kgf/cm² | Clamp Torque (N·m): 900 (tilt axis only; rotary not printed) | Max. Spindle Speed (min-1): 33.3 (rotary) / 25 (tilt) | Gear Ratio: 1/90 (rotary) / 1/120 (tilt) | Indexing Accuracy (sec): 40 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 4 (tilt) | Tilting Range: -20°~+120° | Servo Motor: YASKAWA SGM7P-15A7A6S
MTR1-25475YY Spindle Dia. (mm): Ø178 | Table Height (mm): 430 | Spindle Internal Dia. (mm): Ø100 | Spindle Through Hole Dia. (mm): Ø26 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 1500 (rotary) / 2600 (tilt) | Max. Spindle Speed (min-1): 33.3 (rotary) / 25 (tilt) | Gear Ratio: 1/90 (rotary) / 1/120 (tilt) | Indexing Accuracy (sec): 40 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 4 (tilt) | Tilting Range: -20°~+120° | Servo Motor: YASKAWA SGM7G-20A7A6S | Weight (kg): 650
MTR1-32480YY Spindle Dia. (mm): Ø220 | Table Height (mm): 449 | Spindle Internal Dia. (mm): Ø100 | Spindle Through Hole Dia. (mm): Ø32 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 1500 (rotary) / 2600 (tilt) | Max. Spindle Speed (min-1): 25 (rotary) / 25 (tilt) | Gear Ratio: 1/120 (rotary) / 1/120 (tilt) | Indexing Accuracy (sec): 40 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 4 (tilt) | Tilting Range: -20°~120° | Servo Motor: YASKAWA SGM7G-20A7A6S | Weight (kg): 900
NC Rotary TablesSamchully
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully 2-Axis 1-Spindle Tilting NC Rotary Table MTR1 Series (YASKAWA Motor)

Brand Samchully·NC Rotary Tables

Available part numbers (3)

MTR1-20464YY, MTR1-25475YY, MTR1-32480YY

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MTR1-20464YYSpindle Dia. (mm): Ø140 | Table Height (mm): 360 | Spindle Internal Dia. (mm): Ø26 | Spindle Through Hole Dia. (mm): Ø26 | Clamp Method: Hydraulic 21~25 kgf/cm² | Clamp Torque (N·m): 900 (tilt axis only; rotary not printed) | Max. Spindle Speed (min-1): 33.3 (rotary) / 25 (tilt) | Gear Ratio: 1/90 (rotary) / 1/120 (tilt) | Indexing Accuracy (sec): 40 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 4 (tilt) | Tilting Range: -20°~+120° | Servo Motor: YASKAWA SGM7P-15A7A6S
MTR1-25475YYSpindle Dia. (mm): Ø178 | Table Height (mm): 430 | Spindle Internal Dia. (mm): Ø100 | Spindle Through Hole Dia. (mm): Ø26 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 1500 (rotary) / 2600 (tilt) | Max. Spindle Speed (min-1): 33.3 (rotary) / 25 (tilt) | Gear Ratio: 1/90 (rotary) / 1/120 (tilt) | Indexing Accuracy (sec): 40 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 4 (tilt) | Tilting Range: -20°~+120° | Servo Motor: YASKAWA SGM7G-20A7A6S | Weight (kg): 650
MTR1-32480YYSpindle Dia. (mm): Ø220 | Table Height (mm): 449 | Spindle Internal Dia. (mm): Ø100 | Spindle Through Hole Dia. (mm): Ø32 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 1500 (rotary) / 2600 (tilt) | Max. Spindle Speed (min-1): 25 (rotary) / 25 (tilt) | Gear Ratio: 1/120 (rotary) / 1/120 (tilt) | Indexing Accuracy (sec): 40 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 4 (tilt) | Tilting Range: -20°~120° | Servo Motor: YASKAWA SGM7G-20A7A6S | Weight (kg): 900
