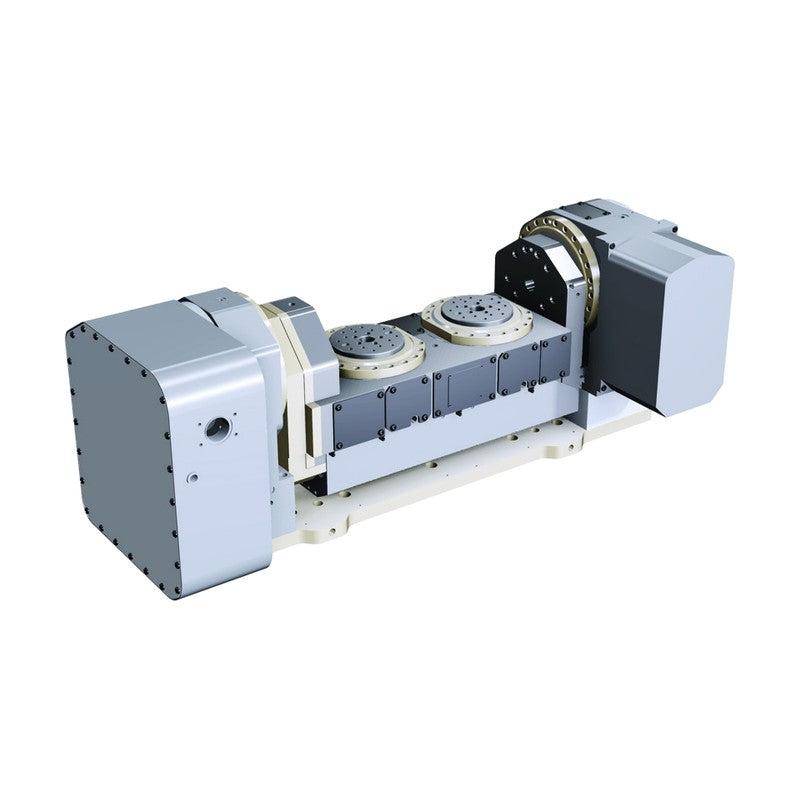

Samchully 2-Axis 2-Spindle Tilting NC Rotary Table MTR2 Series (FANUC Motor)

Samchully 2-Axis 2-Spindle Tilting NC Rotary Table MTR2 Series (FANUC Motor)

Multi-spindle (2-spindle) trunnion tilting NC rotary tables with FANUC motors and hydraulic clamp.

Key features

  • Two spindles on tilting trunnion
  • Tilting range -20° to 120°
  • Hydraulic clamp
  • Convenient jig design, rigid body
MTR2-15420FF Spindle Dia. (mm): Ø115 | Center Height (mm): 266 | Spindle Internal Dia. (mm): Ø24 | Distance of Centers (mm): 200 | Clamp Method: Hydraulic 21~25 kgf/cm² | Max. Spindle Speed (min-1): 25 (rotary) / 25 (tilt) | Gear Ratio: 1/120 (rotary) / 1/120 (tilt) | Indexing Accuracy (sec): 40 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 4 (tilt) | Tilting Range: -20°~+120° | Servo Motor: FANUC αiF4/5000-B
MTR2-17430FF Spindle Dia. (mm): Ø110 | Center Height (mm): 240 | Spindle Internal Dia. (mm): Ø54 | Distance of Centers (mm): 300 | Clamp Method: Hydraulic 21~25 kgf/cm² | Clamp Torque (N·m): 600 (rotary) / 900 (tilt) | Max. Spindle Speed (min-1): 25 (rotary) / 25 (tilt) | Gear Ratio: 1/120 (rotary) / 1/120 (tilt) | Indexing Accuracy (sec): 40 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 4 (tilt) | Tilting Range: -20°~+120° | Servo Motor: FANUC αiF4/5000-B | Weight (kg): 280
MTR2-17432FF Spindle Dia. (mm): Ø110 | Center Height (mm): 197 | Spindle Internal Dia. (mm): Ø54 | Distance of Centers (mm): 320 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 600 (rotary) / 900 (tilt) | Max. Spindle Speed (min-1): 25 (rotary) / 25 (tilt) | Gear Ratio: 1/120 (rotary) / 1/120 (tilt) | Indexing Accuracy (sec): 40 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 4 (tilt) | Tilting Range: -20°~120° | Servo Motor: FANUC αiF4/5000-B (rotary) / αiF8/3000-B (tilt) | Weight (kg): 295
MTR2-20435FF Spindle Dia. (mm): Ø138 | Center Height (mm): 215 | Spindle Internal Dia. (mm): Ø70 | Distance of Centers (mm): 350 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 800 (rotary) / 1200 (tilt) | Max. Spindle Speed (min-1): 25 (rotary) / 25 (tilt) | Gear Ratio: 1/120 (rotary) / 1/120 (tilt) | Indexing Accuracy (sec): 40 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 4 (tilt) | Tilting Range: -20°~120° | Servo Motor: FANUC αiF4/5000-B (rotary) / αiF8/3000-B (tilt) | Weight (kg): 360
MTR2-23440FF Spindle Dia. (mm): Ø138 | Center Height (mm): 325 | Spindle Internal Dia. (mm): Ø70 | Distance of Centers (mm): 400 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 800 (rotary) / 1600 (tilt) | Max. Spindle Speed (min-1): 25 (rotary) / 25 (tilt) | Gear Ratio: 1/120 (rotary) / 1/120 (tilt) | Indexing Accuracy (sec): 40 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 4 (tilt) | Tilting Range: -20°~120° | Servo Motor: FANUC αiF4/4000 (rotary) / αiF8/3000 (tilt) | Weight (kg): 520
MTR2-25440FF Spindle Dia. (mm): Ø178 | Center Height (mm): 340 | Spindle Internal Dia. (mm): Ø100 (178) | Distance of Centers (mm): 400 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 1600 (rotary) / 2600 (tilt) | Max. Spindle Speed (min-1): 25 (rotary) / 25 (tilt) | Gear Ratio: 1/120 (rotary) / 1/120 (tilt) | Indexing Accuracy (sec): 40 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 4 (tilt) | Tilting Range: -20°~120° | Servo Motor: FANUC αiF8/3000 | Weight (kg): 830
MTR2-25444N5FF Spindle Dia. (mm): Ø178 | Center Height (mm): 315 | Spindle Internal Dia. (mm): Ø100(Ø178) | Distance of Centers (mm): 440 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 1600 (rotary) / 2600 (tilt) | Max. Spindle Speed (min-1): 33.3 (rotary) / 25 (tilt) | Gear Ratio: 1/90 (rotary) / 1/120 (tilt) | Indexing Accuracy (sec): 40 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 4 (tilt) | Tilting Range: -20°~120° | Servo Motor: FANUC αiF8/3000 | Weight (kg): 500
MTR2-25446FF Spindle Dia. (mm): Ø178 | Center Height (mm): 340 | Spindle Internal Dia. (mm): Ø100 | Distance of Centers (mm): 460 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 1600 (rotary) / 2600 (tilt) | Max. Spindle Speed (min-1): 25 (rotary) / 16.6 (tilt) | Gear Ratio: 1/120 (rotary) / 1/180 (tilt) | Indexing Accuracy (sec): 40 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 4 (tilt) | Tilting Range: -20°~120° | Servo Motor: FANUC αiF8/3000-B
MTR2-25446N5FF Spindle Dia. (mm): Ø178 | Center Height (mm): 315 | Spindle Internal Dia. (mm): Ø100(Ø178) | Distance of Centers (mm): 460 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 1600 (rotary) / 2600 (tilt) | Max. Spindle Speed (min-1): 33.3 (rotary) / 25 (tilt) | Gear Ratio: 1/90 (rotary) / 1/120 (tilt) | Indexing Accuracy (sec): 40 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 4 (tilt) | Tilting Range: -20°~120° | Servo Motor: FANUC αiF8/3000 | Weight (kg): 500
MTR2-32460FF Spindle Dia. (mm): Ø220 | Center Height (mm): 373 | Spindle Internal Dia. (mm): Ø100(Ø220) | Distance of Centers (mm): 600 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 2600 (rotary) / 2600 (tilt) | Max. Spindle Speed (min-1): 25 (rotary) / 16.6 (tilt) | Gear Ratio: 1/120 (rotary) / 1/180 (tilt) | Indexing Accuracy (sec): 4 (rotary) / 4 (tilt) | Repeatability (sec): 40 (rotary) / 60 (tilt) | Tilting Range: -20°~120° | Servo Motor: FANUC αiF8/3000 | Weight (kg): 950
