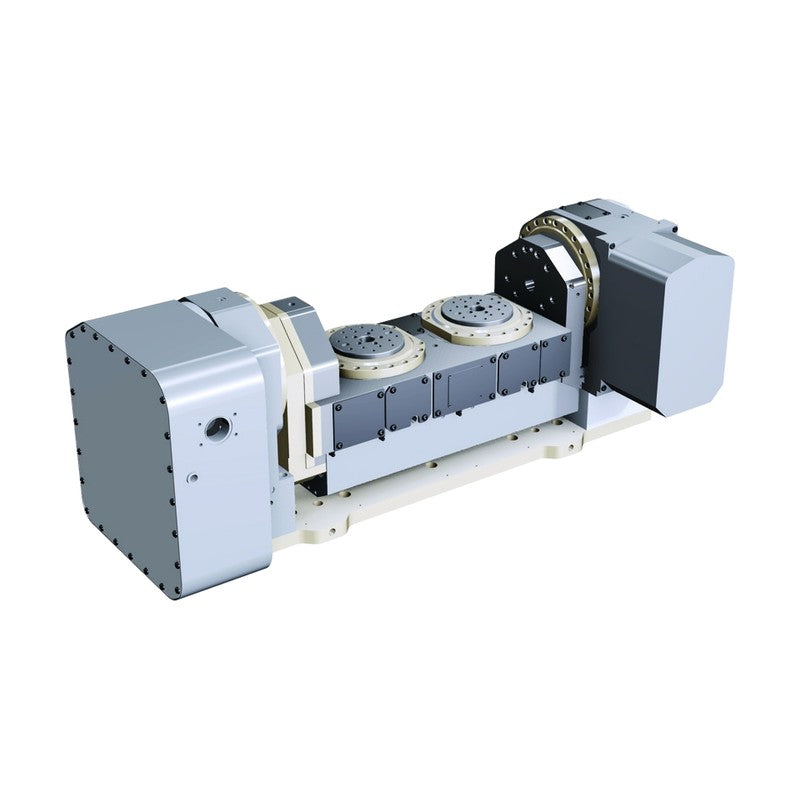

Samchully 2-Axis 2-Spindle Tilting NC Rotary Table MTR2 Series (YASKAWA Motor)

Samchully 2-Axis 2-Spindle Tilting NC Rotary Table MTR2 Series (YASKAWA Motor)

Two-spindle trunnion tilting NC rotary tables with YASKAWA motors and hydraulic clamp.

Key features

  • Two spindles on tilting trunnion
  • Tilting range -20° to 120°
  • Hydraulic clamp
  • For NeoCon-T controller
MTR2-15422YY Spindle Dia. (mm): Ø115 | Table Height (mm): 266 | Spindle Internal Dia. (mm): Ø24 | Distance of Centers (mm): 220 | Clamp Method: Hydraulic 21~25 kgf/cm² | Max. Spindle Speed (min-1): 25 (rotary) / 25 (tilt) | Gear Ratio: 1/120 (rotary) / 1/120 (tilt) | Indexing Accuracy (sec): 40 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 4 (tilt) | Tilting Range: -20°~+120° | Servo Motor: YASKAWA SGM7P-15A7A6S
MTR2-17425YY Spindle Dia. (mm): 119.6 | Table Height (mm): 266 | Spindle Internal Dia. (mm): 24 ( 156 ) | Distance of Centers (mm): 220 | Clamp Method: Hydraulic 21~25 kgf/cm² | Max. Spindle Speed (min-1): 25 (rotary) / 25 (tilt) | Gear Ratio: 1/120 (rotary) / 1/120 (tilt) | Indexing Accuracy (sec): 40 (rotary) / 40 (tilt) | Repeatability (sec): 4 (rotary) / 4 (tilt) | Tilting Range: -20°~+120° | Servo Motor: YASKAWA SGM7P-15A7A6S
MTR2-17430YY Spindle Dia. (mm): Ø110 | Table Height (mm): 240 | Spindle Internal Dia. (mm): Ø54 | Distance of Centers (mm): 300 | Clamp Method: Hydraulic 21~25 kgf/cm² | Clamp Torque (N·m): 600 (rotary) / 900 (tilt) | Max. Spindle Speed (min-1): 25 (rotary) / 25 (tilt) | Gear Ratio: 1/120 (rotary) / 1/120 (tilt) | Indexing Accuracy (sec): 40 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 4 (tilt) | Tilting Range: -20°~+120° | Servo Motor: YASKAWA SGM7P-15A7A6S | Weight (kg): 220
MTR2-17432YY Spindle Dia. (mm): Ø110 | Table Height (mm): 197 | Spindle Internal Dia. (mm): Ø54 | Distance of Centers (mm): 320 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 600 (rotary) / 900 (tilt) | Max. Spindle Speed (min-1): 25 (rotary) / 25 (tilt) | Gear Ratio: 1/120 (rotary) / 1/120 (tilt) | Indexing Accuracy (sec): 40 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 4 (tilt) | Tilting Range: -20°~120° | Servo Motor: YASKAWA SGM7P-15A7A6S | Weight (kg): 295
MTR2-20435YY Spindle Dia. (mm): Ø138 | Center Height (mm): 215 | Spindle Internal Dia. (mm): Ø70 | Distance of Centers (mm): 350 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 800 (rotary) / 1200 (tilt) | Max. Spindle Speed (min-1): 25 (rotary) / 25 (tilt) | Gear Ratio: 1/120 (rotary) / 1/120 (tilt) | Indexing Accuracy (sec): 40 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 4 (tilt) | Tilting Range: -20°~120° | Servo Motor: YASKAWA SGM7P-15A7A6S | Weight (kg): 360
MTR2-23440YY Spindle Dia. (mm): Ø138 | Center Height (mm): 325 | Spindle Internal Dia. (mm): Ø70 | Distance of Centers (mm): 400 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 800 (rotary) / 1600 (tilt) | Max. Spindle Speed (min-1): 25 (rotary) / 25 (tilt) | Gear Ratio: 1/120 (rotary) / 1/120 (tilt) | Indexing Accuracy (sec): 40 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 4 (tilt) | Tilting Range: -20°~120° | Servo Motor: YASKAWA SGM7G-20A7A6S | Weight (kg): 520
MTR2-25440YY Spindle Dia. (mm): Ø178 | Center Height (mm): 340 | Spindle Internal Dia. (mm): Ø100 (178) | Distance of Centers (mm): 400 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 1600 (rotary) / 2600 (tilt) | Max. Spindle Speed (min-1): 25 (rotary) / 25 (tilt) | Gear Ratio: 1/120 (rotary) / 1/120 (tilt) | Indexing Accuracy (sec): 40 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 4 (tilt) | Tilting Range: -20°~120° | Servo Motor: YASKAWA SGM7G-20A7A6S | Weight (kg): 890
MTR2-25446YY Spindle Dia. (mm): Ø178 | Center Height (mm): 340 | Spindle Internal Dia. (mm): Ø100 | Distance of Centers (mm): 460 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 1600 (rotary) / 2600 (tilt) | Max. Spindle Speed (min-1): 25 (rotary) / 16.6 (tilt) | Gear Ratio: 1/120 (rotary) / 1/180 (tilt) | Indexing Accuracy (sec): 40 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 4 (tilt) | Tilting Range: -20°~120° | Servo Motor: YASKAWA SGM7G-20A7A6S
NC Rotary TablesSamchully
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully 2-Axis 2-Spindle Tilting NC Rotary Table MTR2 Series (YASKAWA Motor)

Brand Samchully·NC Rotary Tables

Available part numbers (8)

MTR2-15422YY, MTR2-17425YY, MTR2-17430YY, MTR2-17432YY, MTR2-20435YY, MTR2-23440YY, MTR2-25440YY, MTR2-25446YY

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MTR2-15422YYSpindle Dia. (mm): Ø115 | Table Height (mm): 266 | Spindle Internal Dia. (mm): Ø24 | Distance of Centers (mm): 220 | Clamp Method: Hydraulic 21~25 kgf/cm² | Max. Spindle Speed (min-1): 25 (rotary) / 25 (tilt) | Gear Ratio: 1/120 (rotary) / 1/120 (tilt) | Indexing Accuracy (sec): 40 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 4 (tilt) | Tilting Range: -20°~+120° | Servo Motor: YASKAWA SGM7P-15A7A6S
MTR2-17425YYSpindle Dia. (mm): 119.6 | Table Height (mm): 266 | Spindle Internal Dia. (mm): 24 ( 156 ) | Distance of Centers (mm): 220 | Clamp Method: Hydraulic 21~25 kgf/cm² | Max. Spindle Speed (min-1): 25 (rotary) / 25 (tilt) | Gear Ratio: 1/120 (rotary) / 1/120 (tilt) | Indexing Accuracy (sec): 40 (rotary) / 40 (tilt) | Repeatability (sec): 4 (rotary) / 4 (tilt) | Tilting Range: -20°~+120° | Servo Motor: YASKAWA SGM7P-15A7A6S
MTR2-17430YYSpindle Dia. (mm): Ø110 | Table Height (mm): 240 | Spindle Internal Dia. (mm): Ø54 | Distance of Centers (mm): 300 | Clamp Method: Hydraulic 21~25 kgf/cm² | Clamp Torque (N·m): 600 (rotary) / 900 (tilt) | Max. Spindle Speed (min-1): 25 (rotary) / 25 (tilt) | Gear Ratio: 1/120 (rotary) / 1/120 (tilt) | Indexing Accuracy (sec): 40 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 4 (tilt) | Tilting Range: -20°~+120° | Servo Motor: YASKAWA SGM7P-15A7A6S | Weight (kg): 220
MTR2-17432YYSpindle Dia. (mm): Ø110 | Table Height (mm): 197 | Spindle Internal Dia. (mm): Ø54 | Distance of Centers (mm): 320 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 600 (rotary) / 900 (tilt) | Max. Spindle Speed (min-1): 25 (rotary) / 25 (tilt) | Gear Ratio: 1/120 (rotary) / 1/120 (tilt) | Indexing Accuracy (sec): 40 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 4 (tilt) | Tilting Range: -20°~120° | Servo Motor: YASKAWA SGM7P-15A7A6S | Weight (kg): 295
MTR2-20435YYSpindle Dia. (mm): Ø138 | Center Height (mm): 215 | Spindle Internal Dia. (mm): Ø70 | Distance of Centers (mm): 350 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 800 (rotary) / 1200 (tilt) | Max. Spindle Speed (min-1): 25 (rotary) / 25 (tilt) | Gear Ratio: 1/120 (rotary) / 1/120 (tilt) | Indexing Accuracy (sec): 40 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 4 (tilt) | Tilting Range: -20°~120° | Servo Motor: YASKAWA SGM7P-15A7A6S | Weight (kg): 360
MTR2-23440YYSpindle Dia. (mm): Ø138 | Center Height (mm): 325 | Spindle Internal Dia. (mm): Ø70 | Distance of Centers (mm): 400 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 800 (rotary) / 1600 (tilt) | Max. Spindle Speed (min-1): 25 (rotary) / 25 (tilt) | Gear Ratio: 1/120 (rotary) / 1/120 (tilt) | Indexing Accuracy (sec): 40 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 4 (tilt) | Tilting Range: -20°~120° | Servo Motor: YASKAWA SGM7G-20A7A6S | Weight (kg): 520
MTR2-25440YYSpindle Dia. (mm): Ø178 | Center Height (mm): 340 | Spindle Internal Dia. (mm): Ø100 (178) | Distance of Centers (mm): 400 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 1600 (rotary) / 2600 (tilt) | Max. Spindle Speed (min-1): 25 (rotary) / 25 (tilt) | Gear Ratio: 1/120 (rotary) / 1/120 (tilt) | Indexing Accuracy (sec): 40 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 4 (tilt) | Tilting Range: -20°~120° | Servo Motor: YASKAWA SGM7G-20A7A6S | Weight (kg): 890
MTR2-25446YYSpindle Dia. (mm): Ø178 | Center Height (mm): 340 | Spindle Internal Dia. (mm): Ø100 | Distance of Centers (mm): 460 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 1600 (rotary) / 2600 (tilt) | Max. Spindle Speed (min-1): 25 (rotary) / 16.6 (tilt) | Gear Ratio: 1/120 (rotary) / 1/180 (tilt) | Indexing Accuracy (sec): 40 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 4 (tilt) | Tilting Range: -20°~120° | Servo Motor: YASKAWA SGM7G-20A7A6S
