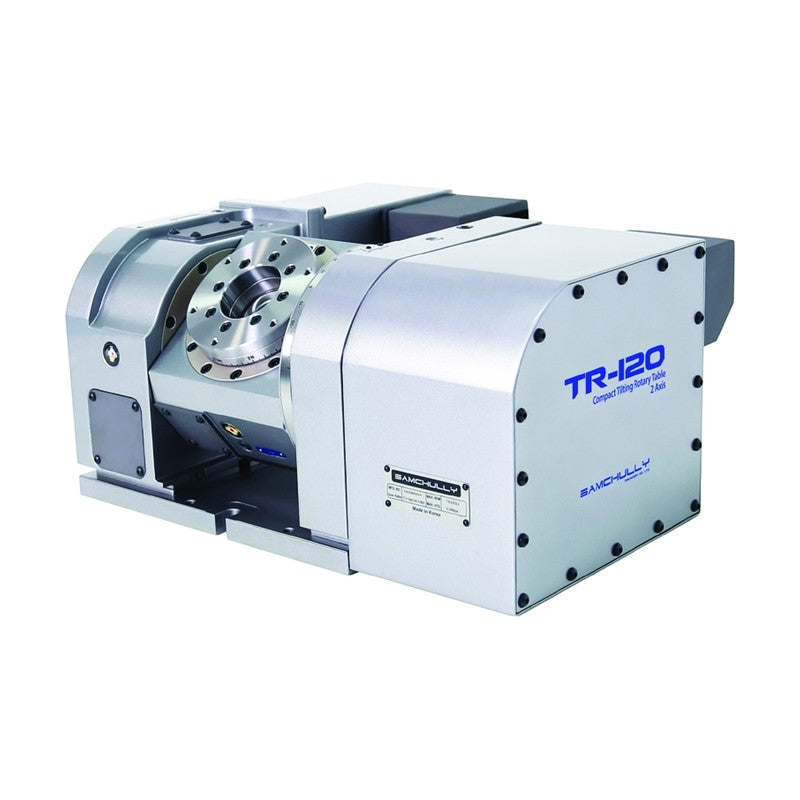

Samchully 2-Axis Tilting NC Rotary Table TR Series (YASKAWA Motor, NeoCon-T Controller)

Samchully 2-Axis Tilting NC Rotary Table TR Series (YASKAWA Motor, NeoCon-T Controller)

Two-axis tilting NC rotary tables with YASKAWA servo motors for the NeoCon-T 2-axis controller, table diameters 130 to 310 mm.

Key features

  • Rotary and tilting axes
  • Tilting range -20° to 110°
  • For NeoCon-T controller
  • Hydraulic clamp
TR-120YY Table Dia. (mm): Ø130 | Center Height (mm): 150 | Table Hole Dia. (mm): Ø60H7 | Spindle Through Hole Dia. (mm): Ø32H8 | Clamp Method: Hydraulic 21~25 kgf/cm² | Clamp Torque (N·m): 200 (rotary) / 300 (tilt) | Max. Spindle Speed (min-1): 33.3 (rotary) / 16.6 (tilt) | Gear Ratio: 1/90 (rotary) / 1/180 (tilt) | Indexing Accuracy (sec): 30 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 4 (tilt) | Tilting Range: -20°~110° | Servo Motor: YASKAWA SGM7J-08A7A6S | Weight (kg): 120
TR-200YY Table Dia. (mm): Ø200 | Center Height (mm): 180 | Table Hole Dia. (mm): Ø75H7 | Spindle Through Hole Dia. (mm): Ø45H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 450 (rotary) / 800 (tilt) | Max. Spindle Speed (min-1): 33.3 (rotary) / 16.6 (tilt) | Gear Ratio: 1/90 (rotary) / 1/180 (tilt) | Indexing Accuracy (sec): 30 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 4 (tilt) | Tilting Range: -20°~110° | Servo Motor: YASKAWA SGM7P-15A7A6S | Weight (kg): 250
TR-250YY Table Dia. (mm): Ø240 | Center Height (mm): 225 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø70H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 900 (rotary) / 1200 (tilt) | Max. Spindle Speed (min-1): 33.3 (rotary) / 16.6 (tilt) | Gear Ratio: 1/90 (rotary) / 1/180 (tilt) | Indexing Accuracy (sec): 30 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 4 (tilt) | Tilting Range: -20°~110° | Servo Motor: YASKAWA SGM7P-15A7A6S | Weight (kg): 295
TR-320YY Table Dia. (mm): Ø310 | Center Height (mm): 242 | Table Hole Dia. (mm): Ø130H7 | Spindle Through Hole Dia. (mm): Ø105H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 2300 (rotary) / 2600 (tilt) | Max. Spindle Speed (min-1): 25 (rotary) / 25 (tilt) | Gear Ratio: 1/120 (rotary) / 1/120 (tilt) | Indexing Accuracy (sec): 30 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 8 (tilt) | Tilting Range: -20°~110° | Servo Motor: YASKAWA SGM7G-20A7A6S (rotary) / SGM7G-30A7A6S (tilt) | Weight (kg): 410
NC Rotary TablesSamchully
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully 2-Axis Tilting NC Rotary Table TR Series (YASKAWA Motor, NeoCon-T Controller)

Brand Samchully·NC Rotary Tables

Available part numbers (4)

TR-120YY, TR-200YY, TR-250YY, TR-320YY

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TR-120YYTable Dia. (mm): Ø130 | Center Height (mm): 150 | Table Hole Dia. (mm): Ø60H7 | Spindle Through Hole Dia. (mm): Ø32H8 | Clamp Method: Hydraulic 21~25 kgf/cm² | Clamp Torque (N·m): 200 (rotary) / 300 (tilt) | Max. Spindle Speed (min-1): 33.3 (rotary) / 16.6 (tilt) | Gear Ratio: 1/90 (rotary) / 1/180 (tilt) | Indexing Accuracy (sec): 30 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 4 (tilt) | Tilting Range: -20°~110° | Servo Motor: YASKAWA SGM7J-08A7A6S | Weight (kg): 120
TR-200YYTable Dia. (mm): Ø200 | Center Height (mm): 180 | Table Hole Dia. (mm): Ø75H7 | Spindle Through Hole Dia. (mm): Ø45H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 450 (rotary) / 800 (tilt) | Max. Spindle Speed (min-1): 33.3 (rotary) / 16.6 (tilt) | Gear Ratio: 1/90 (rotary) / 1/180 (tilt) | Indexing Accuracy (sec): 30 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 4 (tilt) | Tilting Range: -20°~110° | Servo Motor: YASKAWA SGM7P-15A7A6S | Weight (kg): 250
TR-250YYTable Dia. (mm): Ø240 | Center Height (mm): 225 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø70H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 900 (rotary) / 1200 (tilt) | Max. Spindle Speed (min-1): 33.3 (rotary) / 16.6 (tilt) | Gear Ratio: 1/90 (rotary) / 1/180 (tilt) | Indexing Accuracy (sec): 30 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 4 (tilt) | Tilting Range: -20°~110° | Servo Motor: YASKAWA SGM7P-15A7A6S | Weight (kg): 295
TR-320YYTable Dia. (mm): Ø310 | Center Height (mm): 242 | Table Hole Dia. (mm): Ø130H7 | Spindle Through Hole Dia. (mm): Ø105H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 2300 (rotary) / 2600 (tilt) | Max. Spindle Speed (min-1): 25 (rotary) / 25 (tilt) | Gear Ratio: 1/120 (rotary) / 1/120 (tilt) | Indexing Accuracy (sec): 30 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 8 (tilt) | Tilting Range: -20°~110° | Servo Motor: YASKAWA SGM7G-20A7A6S (rotary) / SGM7G-30A7A6S (tilt) | Weight (kg): 410
