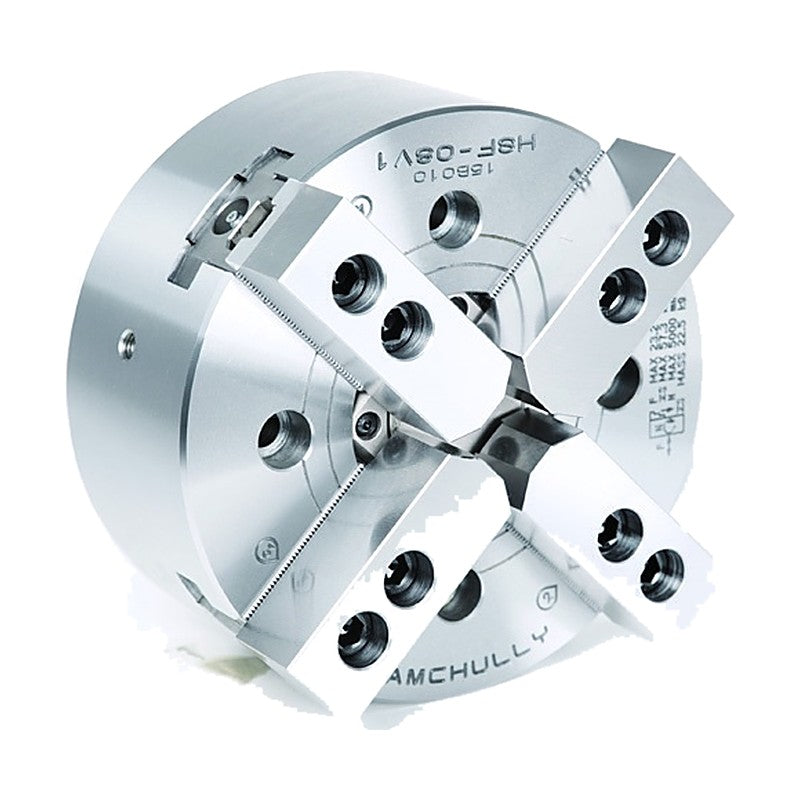

Samchully 2-Jaw / 4-Jaw High-Speed Open-Center Chuck HST/HSF

Samchully 2-Jaw / 4-Jaw High-Speed Open-Center Chuck HST/HSF

High-speed 2-jaw (HST) and 4-jaw (HSF) wedge-style open-center power chuck.

Key features

  • Gripping force transmission by wedge structure
  • Precision-hardened core components ensure chuck longevity
HST-06 Through Hole Dia. (mm): 46 | Grip Dia. Max (mm): 169 | Grip Dia. Min (mm): 15 | Jaw Stroke Dia. (mm): 5.5 | Plunger Stroke (mm): 12 | Max. Permissible Input Force (kN (kgf)): 14.5 (1479) | Max. Static Gripping Force (kN (kgf)): 38 (3875) | Max. Speed (rpm): 6000 | Weight (kg): 11.5 | Operating Cylinder: SD-13546 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.85 (18.9)
HST-08 Through Hole Dia. (mm): 52 | Grip Dia. Max (mm): 210 | Grip Dia. Min (mm): 13 | Jaw Stroke Dia. (mm): 7.4 | Plunger Stroke (mm): 16 | Max. Permissible Input Force (kN (kgf)): 23.2 (2366) | Max. Static Gripping Force (kN (kgf)): 57.3 (5843) | Max. Speed (rpm): 5000 | Weight (kg): 21.3 | Operating Cylinder: SD-15452 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.80 (18.4)
HST-10 Through Hole Dia. (mm): 77 | Grip Dia. Max (mm): 254 | Grip Dia. Min (mm): 31 | Jaw Stroke Dia. (mm): 8.8 | Plunger Stroke (mm): 19 | Max. Permissible Input Force (kN (kgf)): 28.5 (2906) | Max. Static Gripping Force (kN (kgf)): 74 (7546) | Max. Speed (rpm): 4200 | Weight (kg): 33.5 | Operating Cylinder: SD-18577 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.80 (18.4)
HST-12 Through Hole Dia. (mm): 91 | Grip Dia. Max (mm): 304 | Grip Dia. Min (mm): 34 | Jaw Stroke Dia. (mm): 10.6 | Plunger Stroke (mm): 23 | Max. Permissible Input Force (kN (kgf)): 36.7 (3742) | Max. Static Gripping Force (kN (kgf)): 96 (9789) | Max. Speed (rpm): 3300 | Weight (kg): 52 | Operating Cylinder: SD-20591 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.81 (18.5)
HSF-08 Through Hole Dia. (mm): 52 | Grip Dia. Max (mm): 210 | Grip Dia. Min (mm): 13 | Jaw Stroke Dia. (mm): 7.4 | Plunger Stroke (mm): 16 | Max. Permissible Input Force (kN (kgf)): 23.2 (2366) | Max. Static Gripping Force (kN (kgf)): 57.3 (5843) | Max. Speed (rpm): 5000 | Weight (kg): 22.5 | Operating Cylinder: SD-15452 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.80 (18.4)
HSF-10 Through Hole Dia. (mm): 77 | Grip Dia. Max (mm): 254 | Grip Dia. Min (mm): 31 | Jaw Stroke Dia. (mm): 8.8 | Plunger Stroke (mm): 19 | Max. Permissible Input Force (kN (kgf)): 28.5 (2906) | Max. Static Gripping Force (kN (kgf)): 74 (7546) | Max. Speed (rpm): 4200 | Weight (kg): 34.5 | Operating Cylinder: SD-18577 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.80 (18.4)
HSF-12 Through Hole Dia. (mm): 91 | Grip Dia. Max (mm): 304 | Grip Dia. Min (mm): 34 | Jaw Stroke Dia. (mm): 10.6 | Plunger Stroke (mm): 23 | Max. Permissible Input Force (kN (kgf)): 36.7 (3742) | Max. Static Gripping Force (kN (kgf)): 96 (9789) | Max. Speed (rpm): 3300 | Weight (kg): 52 | Operating Cylinder: SD-20591 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.80 (28.5)
Power ChucksSamchully
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully 2-Jaw / 4-Jaw High-Speed Open-Center Chuck HST/HSF

Brand Samchully·Power Chucks

Available part numbers (7)

HST-06, HST-08, HST-10, HST-12, HSF-08, HSF-10, HSF-12

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HST-06Through Hole Dia. (mm): 46 | Grip Dia. Max (mm): 169 | Grip Dia. Min (mm): 15 | Jaw Stroke Dia. (mm): 5.5 | Plunger Stroke (mm): 12 | Max. Permissible Input Force (kN (kgf)): 14.5 (1479) | Max. Static Gripping Force (kN (kgf)): 38 (3875) | Max. Speed (rpm): 6000 | Weight (kg): 11.5 | Operating Cylinder: SD-13546 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.85 (18.9)
HST-08Through Hole Dia. (mm): 52 | Grip Dia. Max (mm): 210 | Grip Dia. Min (mm): 13 | Jaw Stroke Dia. (mm): 7.4 | Plunger Stroke (mm): 16 | Max. Permissible Input Force (kN (kgf)): 23.2 (2366) | Max. Static Gripping Force (kN (kgf)): 57.3 (5843) | Max. Speed (rpm): 5000 | Weight (kg): 21.3 | Operating Cylinder: SD-15452 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.80 (18.4)
HST-10Through Hole Dia. (mm): 77 | Grip Dia. Max (mm): 254 | Grip Dia. Min (mm): 31 | Jaw Stroke Dia. (mm): 8.8 | Plunger Stroke (mm): 19 | Max. Permissible Input Force (kN (kgf)): 28.5 (2906) | Max. Static Gripping Force (kN (kgf)): 74 (7546) | Max. Speed (rpm): 4200 | Weight (kg): 33.5 | Operating Cylinder: SD-18577 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.80 (18.4)
HST-12Through Hole Dia. (mm): 91 | Grip Dia. Max (mm): 304 | Grip Dia. Min (mm): 34 | Jaw Stroke Dia. (mm): 10.6 | Plunger Stroke (mm): 23 | Max. Permissible Input Force (kN (kgf)): 36.7 (3742) | Max. Static Gripping Force (kN (kgf)): 96 (9789) | Max. Speed (rpm): 3300 | Weight (kg): 52 | Operating Cylinder: SD-20591 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.81 (18.5)
HSF-08Through Hole Dia. (mm): 52 | Grip Dia. Max (mm): 210 | Grip Dia. Min (mm): 13 | Jaw Stroke Dia. (mm): 7.4 | Plunger Stroke (mm): 16 | Max. Permissible Input Force (kN (kgf)): 23.2 (2366) | Max. Static Gripping Force (kN (kgf)): 57.3 (5843) | Max. Speed (rpm): 5000 | Weight (kg): 22.5 | Operating Cylinder: SD-15452 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.80 (18.4)
HSF-10Through Hole Dia. (mm): 77 | Grip Dia. Max (mm): 254 | Grip Dia. Min (mm): 31 | Jaw Stroke Dia. (mm): 8.8 | Plunger Stroke (mm): 19 | Max. Permissible Input Force (kN (kgf)): 28.5 (2906) | Max. Static Gripping Force (kN (kgf)): 74 (7546) | Max. Speed (rpm): 4200 | Weight (kg): 34.5 | Operating Cylinder: SD-18577 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.80 (18.4)
HSF-12Through Hole Dia. (mm): 91 | Grip Dia. Max (mm): 304 | Grip Dia. Min (mm): 34 | Jaw Stroke Dia. (mm): 10.6 | Plunger Stroke (mm): 23 | Max. Permissible Input Force (kN (kgf)): 36.7 (3742) | Max. Static Gripping Force (kN (kgf)): 96 (9789) | Max. Speed (rpm): 3300 | Weight (kg): 52 | Operating Cylinder: SD-20591 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.80 (28.5)
