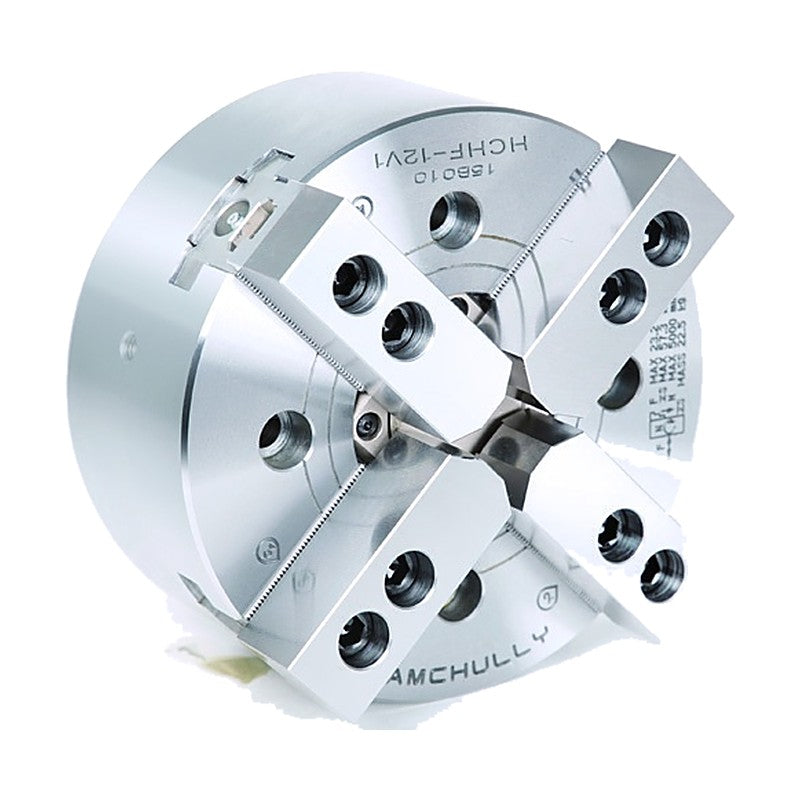

Samchully 2-Jaw / 4-Jaw Open-Center Chuck HCHT/HCHF

Samchully 2-Jaw / 4-Jaw Open-Center Chuck HCHT/HCHF

Standard 2-jaw (HCHT) and 4-jaw (HCHF) wedge-style open-center chuck.

Key features

  • Gripping force transmission by wedge structure
  • Hardened for high precision and long chuck life
HCHT-15 Through Hole Dia. (mm): 117.5 | Grip Dia. Max (mm): 381 | Grip Dia. Min (mm): 30 | Jaw Stroke Dia. (mm): 10.6 | Plunger Stroke (mm): 23 | Max. Permissible Input Force (kN (kgf)): 47(4793) | Max. Static Gripping Force (kN (kgf)): 120(12236) | Max. Speed (rpm): 2500 | Weight (kg): 115 | Operating Cylinder: SD-25411 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.5(15.3) | Operating Hard Jaw: HB15A1
HCHF-15 Through Hole Dia. (mm): 117.5 | Grip Dia. Max (mm): 381 | Grip Dia. Min (mm): 30 | Jaw Stroke Dia. (mm): 10.6 | Plunger Stroke (mm): 23 | Max. Permissible Input Force (kN (kgf)): 71(7240) | Max. Static Gripping Force (kN (kgf)): 180(18355) | Max. Speed (rpm): 2200 | Weight (kg): 115 | Operating Cylinder: SD-25411 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.3(23.5) | Operating Hard Jaw: HBF15A1
HCHF-18 Through Hole Dia. (mm): 117.5 | Grip Dia. Max (mm): 450 | Grip Dia. Min (mm): 30 | Jaw Stroke Dia. (mm): 10.6 | Plunger Stroke (mm): 23 | Max. Permissible Input Force (kN (kgf)): 71(7240) | Max. Static Gripping Force (kN (kgf)): 180(18355) | Max. Speed (rpm): 1750 | Weight (kg): 159 | Operating Cylinder: SD-25411 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.3(23.5) | Operating Hard Jaw: HBF15A1
HCHF-21 Through Hole Dia. (mm): 140 | Grip Dia. Max (mm): 530 | Grip Dia. Min (mm): 87 | Jaw Stroke Dia. (mm): 10.6 | Plunger Stroke (mm): 23 | Max. Permissible Input Force (kN (kgf)): 90(9177) | Max. Static Gripping Force (kN (kgf)): 234(23861) | Max. Speed (rpm): 1450 | Weight (kg): 235 | Operating Cylinder: SD-25411 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 3.0(30.6) | Operating Hard Jaw: HBF21B2
HCHF-24 Through Hole Dia. (mm): 165 | Grip Dia. Max (mm): 610 | Grip Dia. Min (mm): 110 | Jaw Stroke Dia. (mm): 12.8 | Plunger Stroke (mm): 28 | Max. Permissible Input Force (kN (kgf)): 90(9177) | Max. Static Gripping Force (kN (kgf)): 234(23861) | Max. Speed (rpm): 1200 | Weight (kg): 293 | Operating Cylinder: SD-25411 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 3.0(30.6) | Operating Hard Jaw: HBF21B2
HCHF-32 Through Hole Dia. (mm): 240 | Grip Dia. Max (mm): 800 | Grip Dia. Min (mm): 160 | Jaw Stroke Dia. (mm): 18 | Plunger Stroke (mm): 34 | Max. Permissible Input Force (kN (kgf)): 100(10193) | Max. Static Gripping Force (kN (kgf)): 240(24464) | Max. Speed (rpm): 1000 | Weight (kg): 530 | Operating Cylinder: SDL-30516 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.50(25.5) | Operating Hard Jaw: HBF32B2
Power ChucksSamchully
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully 2-Jaw / 4-Jaw Open-Center Chuck HCHT/HCHF

Brand Samchully·Power Chucks

Available part numbers (6)

HCHT-15, HCHF-15, HCHF-18, HCHF-21, HCHF-24, HCHF-32

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HCHT-15Through Hole Dia. (mm): 117.5 | Grip Dia. Max (mm): 381 | Grip Dia. Min (mm): 30 | Jaw Stroke Dia. (mm): 10.6 | Plunger Stroke (mm): 23 | Max. Permissible Input Force (kN (kgf)): 47(4793) | Max. Static Gripping Force (kN (kgf)): 120(12236) | Max. Speed (rpm): 2500 | Weight (kg): 115 | Operating Cylinder: SD-25411 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.5(15.3) | Operating Hard Jaw: HB15A1
HCHF-15Through Hole Dia. (mm): 117.5 | Grip Dia. Max (mm): 381 | Grip Dia. Min (mm): 30 | Jaw Stroke Dia. (mm): 10.6 | Plunger Stroke (mm): 23 | Max. Permissible Input Force (kN (kgf)): 71(7240) | Max. Static Gripping Force (kN (kgf)): 180(18355) | Max. Speed (rpm): 2200 | Weight (kg): 115 | Operating Cylinder: SD-25411 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.3(23.5) | Operating Hard Jaw: HBF15A1
HCHF-18Through Hole Dia. (mm): 117.5 | Grip Dia. Max (mm): 450 | Grip Dia. Min (mm): 30 | Jaw Stroke Dia. (mm): 10.6 | Plunger Stroke (mm): 23 | Max. Permissible Input Force (kN (kgf)): 71(7240) | Max. Static Gripping Force (kN (kgf)): 180(18355) | Max. Speed (rpm): 1750 | Weight (kg): 159 | Operating Cylinder: SD-25411 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.3(23.5) | Operating Hard Jaw: HBF15A1
HCHF-21Through Hole Dia. (mm): 140 | Grip Dia. Max (mm): 530 | Grip Dia. Min (mm): 87 | Jaw Stroke Dia. (mm): 10.6 | Plunger Stroke (mm): 23 | Max. Permissible Input Force (kN (kgf)): 90(9177) | Max. Static Gripping Force (kN (kgf)): 234(23861) | Max. Speed (rpm): 1450 | Weight (kg): 235 | Operating Cylinder: SD-25411 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 3.0(30.6) | Operating Hard Jaw: HBF21B2
HCHF-24Through Hole Dia. (mm): 165 | Grip Dia. Max (mm): 610 | Grip Dia. Min (mm): 110 | Jaw Stroke Dia. (mm): 12.8 | Plunger Stroke (mm): 28 | Max. Permissible Input Force (kN (kgf)): 90(9177) | Max. Static Gripping Force (kN (kgf)): 234(23861) | Max. Speed (rpm): 1200 | Weight (kg): 293 | Operating Cylinder: SD-25411 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 3.0(30.6) | Operating Hard Jaw: HBF21B2
HCHF-32Through Hole Dia. (mm): 240 | Grip Dia. Max (mm): 800 | Grip Dia. Min (mm): 160 | Jaw Stroke Dia. (mm): 18 | Plunger Stroke (mm): 34 | Max. Permissible Input Force (kN (kgf)): 100(10193) | Max. Static Gripping Force (kN (kgf)): 240(24464) | Max. Speed (rpm): 1000 | Weight (kg): 530 | Operating Cylinder: SDL-30516 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 2.50(25.5) | Operating Hard Jaw: HBF32B2
