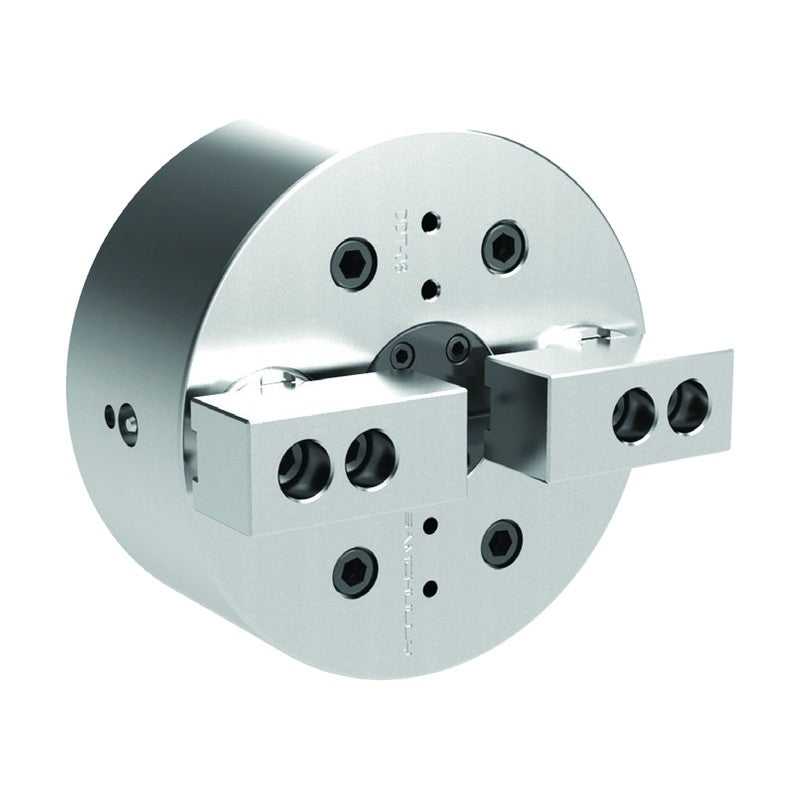

Samchully 2-Jaw Draw-Down Chuck DDT

Samchully 2-Jaw Draw-Down Chuck DDT

2-jaw draw-down chuck that pulls the workpiece down to location for superior accuracy.

Key features

  • Ideal for square, rectangular and irregularly shaped components
  • Very accurate for parallel and perpendicular surfaces
DDT-06 Max. Clamping Force (kgf): 1600 | Max. Drawbar Pull (kgf): 1000 | Jaw Stroke Dia. (mm): 7.2 | Plunger Stroke (mm): 10.0 | Clamping Range Pin Jaw Standard (mm): 35~85 | Clamping Range Pin Jaw Top Jaw (mm): 35~80 | Max. Speed (rpm): 2500 | Weight (kg): 14
DDT-08 Max. Clamping Force (kgf): 2800 | Max. Drawbar Pull (kgf): 1700 | Jaw Stroke Dia. (mm): 7.2 | Plunger Stroke (mm): 10.0 | Clamping Range Pin Jaw Standard (mm): 40~200 | Clamping Range Pin Jaw Top Jaw (mm): 40~150 | Max. Speed (rpm): 2200 | Weight (kg): 26
DDT-10 Max. Clamping Force (kgf): 4000 | Max. Drawbar Pull (kgf): 2500 | Jaw Stroke Dia. (mm): 10.2 | Plunger Stroke (mm): 16.0 | Clamping Range Pin Jaw Standard (mm): 50~250 | Clamping Range Pin Jaw Top Jaw (mm): 50~200 | Max. Speed (rpm): 1800 | Weight (kg): 42
Special ChucksSamchully
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully 2-Jaw Draw-Down Chuck DDT

Brand Samchully·Special Chucks

Available part numbers (3)

DDT-06, DDT-08, DDT-10

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DDT-06Max. Clamping Force (kgf): 1600 | Max. Drawbar Pull (kgf): 1000 | Jaw Stroke Dia. (mm): 7.2 | Plunger Stroke (mm): 10.0 | Clamping Range Pin Jaw Standard (mm): 35~85 | Clamping Range Pin Jaw Top Jaw (mm): 35~80 | Max. Speed (rpm): 2500 | Weight (kg): 14
DDT-08Max. Clamping Force (kgf): 2800 | Max. Drawbar Pull (kgf): 1700 | Jaw Stroke Dia. (mm): 7.2 | Plunger Stroke (mm): 10.0 | Clamping Range Pin Jaw Standard (mm): 40~200 | Clamping Range Pin Jaw Top Jaw (mm): 40~150 | Max. Speed (rpm): 2200 | Weight (kg): 26
DDT-10Max. Clamping Force (kgf): 4000 | Max. Drawbar Pull (kgf): 2500 | Jaw Stroke Dia. (mm): 10.2 | Plunger Stroke (mm): 16.0 | Clamping Range Pin Jaw Standard (mm): 50~250 | Clamping Range Pin Jaw Top Jaw (mm): 50~200 | Max. Speed (rpm): 1800 | Weight (kg): 42
