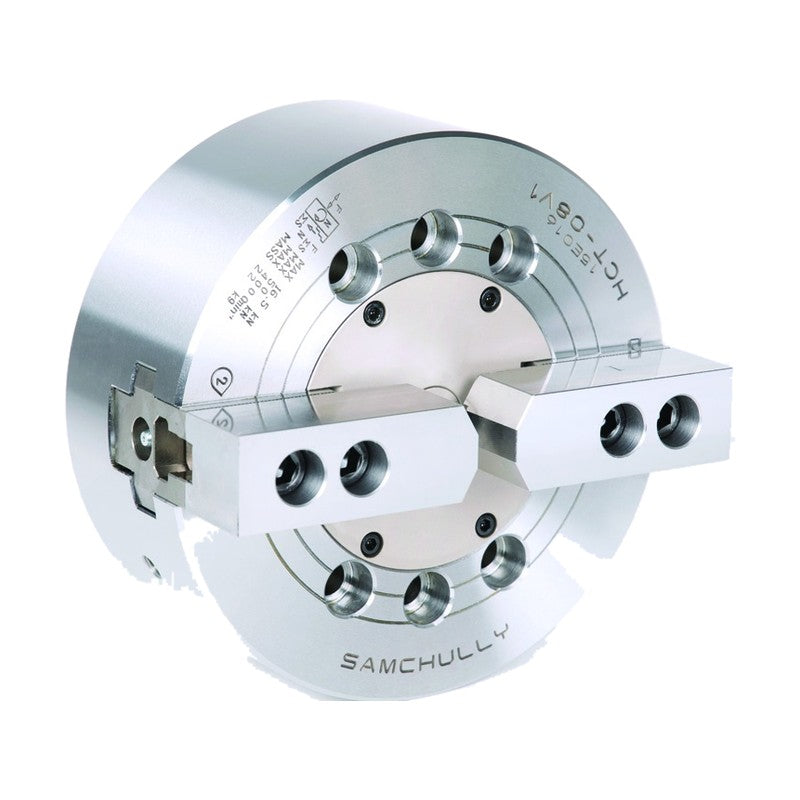

Samchully 2-Jaw High-Speed Closed-Center Power Chuck HCT

Samchully 2-Jaw High-Speed Closed-Center Power Chuck HCT

High-speed 2-jaw wedge-style closed-center power chuck.

Key features

  • Gripping force transmission by wedge structure
  • Precision-hardened core components ensure chuck longevity
HCT-04 Jaw Stroke Dia. (mm): 6.4 | Plunger Stroke (mm): 14 | Grip Dia. Max (mm): 110 | Grip Dia. Min (mm): 5 | Max. Permissible Input Force (kN (kgf)): 5.3(540) | Max. Static Gripping Force (kN (kgf)): 15.2(1550) | Max. Speed (rpm): 6000 | Weight (kg): 3.8 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.68(17.1) | Operating Cylinder: Y-0715R
HCT-05 Jaw Stroke Dia. (mm): 6.4 | Plunger Stroke (mm): 14 | Grip Dia. Max (mm): 135 | Grip Dia. Min (mm): 16 | Max. Permissible Input Force (kN (kgf)): 5.3(540) | Max. Static Gripping Force (kN (kgf)): 16.9(1713) | Max. Speed (rpm): 5500 | Weight (kg): 5.8 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.68(17.1) | Operating Cylinder: Y-0715R
HCT-06 Jaw Stroke Dia. (mm): 8.5 | Plunger Stroke (mm): 18.5 | Grip Dia. Max (mm): 165 | Grip Dia. Min (mm): 14 | Max. Permissible Input Force (kN (kgf)): 12(1224) | Max. Static Gripping Force (kN (kgf)): 35(3569) | Max. Speed (rpm): 5500 | Weight (kg): 11.4 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.7(17.3) | Operating Cylinder: Y-1020R
HCT-08 Jaw Stroke Dia. (mm): 8.8 | Plunger Stroke (mm): 19 | Grip Dia. Max (mm): 210 | Grip Dia. Min (mm): 17 | Max. Permissible Input Force (kN (kgf)): 16.5(1683) | Max. Static Gripping Force (kN (kgf)): 50(5099) | Max. Speed (rpm): 4000 | Weight (kg): 22 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.6(16.3) | Operating Cylinder: Y-1225R
HCT-10 Jaw Stroke Dia. (mm): 8.8 | Plunger Stroke (mm): 25 | Grip Dia. Max (mm): 254 | Grip Dia. Min (mm): 22 | Max. Permissible Input Force (kN (kgf)): 19.5(1988) | Max. Static Gripping Force (kN (kgf)): 72(7342) | Max. Speed (rpm): 3500 | Weight (kg): 31.6 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.9(19.4) | Operating Cylinder: Y-1225R
HCT-12 Jaw Stroke Dia. (mm): 10.5 | Plunger Stroke (mm): 30 | Grip Dia. Max (mm): 310 | Grip Dia. Min (mm): 22 | Max. Permissible Input Force (kN (kgf)): 27.5(2804) | Max. Static Gripping Force (kN (kgf)): 104(10605) | Max. Speed (rpm): 3000 | Weight (kg): 55 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.8(18.4) | Operating Cylinder: Y-1530R
Power ChucksSamchully
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully 2-Jaw High-Speed Closed-Center Power Chuck HCT

Brand Samchully·Power Chucks

Available part numbers (6)

HCT-04, HCT-05, HCT-06, HCT-08, HCT-10, HCT-12

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HCT-04Jaw Stroke Dia. (mm): 6.4 | Plunger Stroke (mm): 14 | Grip Dia. Max (mm): 110 | Grip Dia. Min (mm): 5 | Max. Permissible Input Force (kN (kgf)): 5.3(540) | Max. Static Gripping Force (kN (kgf)): 15.2(1550) | Max. Speed (rpm): 6000 | Weight (kg): 3.8 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.68(17.1) | Operating Cylinder: Y-0715R
HCT-05Jaw Stroke Dia. (mm): 6.4 | Plunger Stroke (mm): 14 | Grip Dia. Max (mm): 135 | Grip Dia. Min (mm): 16 | Max. Permissible Input Force (kN (kgf)): 5.3(540) | Max. Static Gripping Force (kN (kgf)): 16.9(1713) | Max. Speed (rpm): 5500 | Weight (kg): 5.8 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.68(17.1) | Operating Cylinder: Y-0715R
HCT-06Jaw Stroke Dia. (mm): 8.5 | Plunger Stroke (mm): 18.5 | Grip Dia. Max (mm): 165 | Grip Dia. Min (mm): 14 | Max. Permissible Input Force (kN (kgf)): 12(1224) | Max. Static Gripping Force (kN (kgf)): 35(3569) | Max. Speed (rpm): 5500 | Weight (kg): 11.4 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.7(17.3) | Operating Cylinder: Y-1020R
HCT-08Jaw Stroke Dia. (mm): 8.8 | Plunger Stroke (mm): 19 | Grip Dia. Max (mm): 210 | Grip Dia. Min (mm): 17 | Max. Permissible Input Force (kN (kgf)): 16.5(1683) | Max. Static Gripping Force (kN (kgf)): 50(5099) | Max. Speed (rpm): 4000 | Weight (kg): 22 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.6(16.3) | Operating Cylinder: Y-1225R
HCT-10Jaw Stroke Dia. (mm): 8.8 | Plunger Stroke (mm): 25 | Grip Dia. Max (mm): 254 | Grip Dia. Min (mm): 22 | Max. Permissible Input Force (kN (kgf)): 19.5(1988) | Max. Static Gripping Force (kN (kgf)): 72(7342) | Max. Speed (rpm): 3500 | Weight (kg): 31.6 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.9(19.4) | Operating Cylinder: Y-1225R
HCT-12Jaw Stroke Dia. (mm): 10.5 | Plunger Stroke (mm): 30 | Grip Dia. Max (mm): 310 | Grip Dia. Min (mm): 22 | Max. Permissible Input Force (kN (kgf)): 27.5(2804) | Max. Static Gripping Force (kN (kgf)): 104(10605) | Max. Speed (rpm): 3000 | Weight (kg): 55 | Max. Hydraulic Pressure (MPa (kgf/cm²)): 1.8(18.4) | Operating Cylinder: Y-1530R
