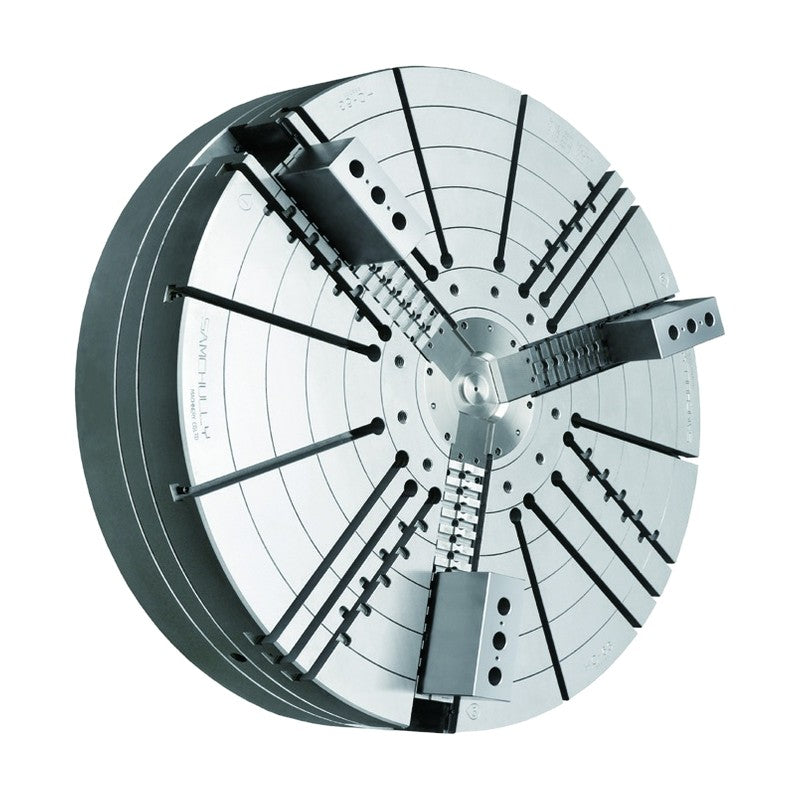

Samchully 3-Jaw Closed-Center Power Chuck HC (Groove Type)

Samchully 3-Jaw Closed-Center Power Chuck HC (Groove Type)

Standard high-speed 3-jaw wedge-style closed-center power chuck with groove-type jaw mounting for large diameters.

Key features

  • 3-jaw power chuck (HC-32G, HC-40G)
  • Option to add 4 independently moving boring-mill jaws on larger models
  • Gripping force transmission by wedge structure
  • Precision-hardened core components ensure chuck longevity
HC-32G Jaw Stroke Dia. (mm): 20 | Manual Setting: 30 | Plunger Stroke (mm): 38 | Grip Dia. Max (mm): 800 | Grip Dia. Min (mm): 200 | Max. Permissible Input Force (kN (kgf)): 100 (12170) | Max. Static Gripping Force (kN (kgf)): 240 (21805) | Max. Speed (rpm): 800 | Weight (kg): 350 | Operating Cylinder: Y-2050RE | Max. Hydraulic Pressure (MPa (kgf/cm²)): 3.99(40.8) | Operating Hard Jaw: HB32GB
HC-40G Jaw Stroke Dia. (mm): 46 | Manual Setting: 30 | Plunger Stroke (mm): 57 | Grip Dia. Max (mm): 1000 | Grip Dia. Min (mm): 330 | Max. Permissible Input Force (kN (kgf)): 180 (18256) | Max. Static Gripping Force (kN (kgf)): 320 (32454) | Max. Speed (rpm): 630 | Weight (kg): 600 | Operating Cylinder: Y-2560RE | Max. Hydraulic Pressure (MPa (kgf/cm²)): 3.99(40.8) | Operating Hard Jaw: HB40GB
HC-50G Jaw Stroke Dia. (mm): 46 | Manual Setting: 30 | Plunger Stroke (mm): 57 | Grip Dia. Max (mm): 1250 | Grip Dia. Min (mm): 330 | Max. Permissible Input Force (kN (kgf)): 180 (18256) | Max. Static Gripping Force (kN (kgf)): 320 (32454) | Max. Speed (rpm): 500 | Weight (kg): 1000 | Operating Cylinder: Y-2560RE | Max. Hydraulic Pressure (MPa (kgf/cm²)): 3.99(40.8) | Operating Hard Jaw: HB40GB
HC-55G Jaw Stroke Dia. (mm): 48 | Manual Setting: 40 | Plunger Stroke (mm): 60 | Grip Dia. Max (mm): 1400 | Grip Dia. Min (mm): 460 | Max. Permissible Input Force (kN (kgf)): 200 (20394) | Max. Static Gripping Force (kN (kgf)): 360 (36710) | Max. Speed (rpm): 450 | Weight (kg): 1350 | Operating Cylinder: Y-2560RE-SB | Max. Hydraulic Pressure (MPa (kgf/cm²)): 4.5(46) | Operating Hard Jaw: HB40GB
HC-63G Jaw Stroke Dia. (mm): 48 | Manual Setting: 40 | Plunger Stroke (mm): 60 | Grip Dia. Max (mm): 1600 | Grip Dia. Min (mm): 460 | Max. Permissible Input Force (kN (kgf)): 200 (20394) | Max. Static Gripping Force (kN (kgf)): 360 (36710) | Max. Speed (rpm): 400 | Weight (kg): 1850 | Operating Cylinder: Y-2560RE-SB | Max. Hydraulic Pressure (MPa (kgf/cm²)): 4.5(46) | Operating Hard Jaw: HB40GB
HC-80G Jaw Stroke Dia. (mm): 48 | Manual Setting: 40 | Plunger Stroke (mm): 60 | Grip Dia. Max (mm): 2000 | Grip Dia. Min (mm): 460 | Max. Permissible Input Force (kN (kgf)): 200 (20394) | Max. Static Gripping Force (kN (kgf)): 360 (36710) | Max. Speed (rpm): 320 | Weight (kg): 2500 | Operating Cylinder: Y-2560RE-SB | Max. Hydraulic Pressure (MPa (kgf/cm²)): 4.5(46) | Operating Hard Jaw: HB40GB
Power ChucksSamchully
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully 3-Jaw Closed-Center Power Chuck HC (Groove Type)

Brand Samchully·Power Chucks

Available part numbers (6)

HC-32G, HC-40G, HC-50G, HC-55G, HC-63G, HC-80G

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HC-32GJaw Stroke Dia. (mm): 20 | Manual Setting: 30 | Plunger Stroke (mm): 38 | Grip Dia. Max (mm): 800 | Grip Dia. Min (mm): 200 | Max. Permissible Input Force (kN (kgf)): 100 (12170) | Max. Static Gripping Force (kN (kgf)): 240 (21805) | Max. Speed (rpm): 800 | Weight (kg): 350 | Operating Cylinder: Y-2050RE | Max. Hydraulic Pressure (MPa (kgf/cm²)): 3.99(40.8) | Operating Hard Jaw: HB32GB
HC-40GJaw Stroke Dia. (mm): 46 | Manual Setting: 30 | Plunger Stroke (mm): 57 | Grip Dia. Max (mm): 1000 | Grip Dia. Min (mm): 330 | Max. Permissible Input Force (kN (kgf)): 180 (18256) | Max. Static Gripping Force (kN (kgf)): 320 (32454) | Max. Speed (rpm): 630 | Weight (kg): 600 | Operating Cylinder: Y-2560RE | Max. Hydraulic Pressure (MPa (kgf/cm²)): 3.99(40.8) | Operating Hard Jaw: HB40GB
HC-50GJaw Stroke Dia. (mm): 46 | Manual Setting: 30 | Plunger Stroke (mm): 57 | Grip Dia. Max (mm): 1250 | Grip Dia. Min (mm): 330 | Max. Permissible Input Force (kN (kgf)): 180 (18256) | Max. Static Gripping Force (kN (kgf)): 320 (32454) | Max. Speed (rpm): 500 | Weight (kg): 1000 | Operating Cylinder: Y-2560RE | Max. Hydraulic Pressure (MPa (kgf/cm²)): 3.99(40.8) | Operating Hard Jaw: HB40GB
HC-55GJaw Stroke Dia. (mm): 48 | Manual Setting: 40 | Plunger Stroke (mm): 60 | Grip Dia. Max (mm): 1400 | Grip Dia. Min (mm): 460 | Max. Permissible Input Force (kN (kgf)): 200 (20394) | Max. Static Gripping Force (kN (kgf)): 360 (36710) | Max. Speed (rpm): 450 | Weight (kg): 1350 | Operating Cylinder: Y-2560RE-SB | Max. Hydraulic Pressure (MPa (kgf/cm²)): 4.5(46) | Operating Hard Jaw: HB40GB
HC-63GJaw Stroke Dia. (mm): 48 | Manual Setting: 40 | Plunger Stroke (mm): 60 | Grip Dia. Max (mm): 1600 | Grip Dia. Min (mm): 460 | Max. Permissible Input Force (kN (kgf)): 200 (20394) | Max. Static Gripping Force (kN (kgf)): 360 (36710) | Max. Speed (rpm): 400 | Weight (kg): 1850 | Operating Cylinder: Y-2560RE-SB | Max. Hydraulic Pressure (MPa (kgf/cm²)): 4.5(46) | Operating Hard Jaw: HB40GB
HC-80GJaw Stroke Dia. (mm): 48 | Manual Setting: 40 | Plunger Stroke (mm): 60 | Grip Dia. Max (mm): 2000 | Grip Dia. Min (mm): 460 | Max. Permissible Input Force (kN (kgf)): 200 (20394) | Max. Static Gripping Force (kN (kgf)): 360 (36710) | Max. Speed (rpm): 320 | Weight (kg): 2500 | Operating Cylinder: Y-2560RE-SB | Max. Hydraulic Pressure (MPa (kgf/cm²)): 4.5(46) | Operating Hard Jaw: HB40GB
