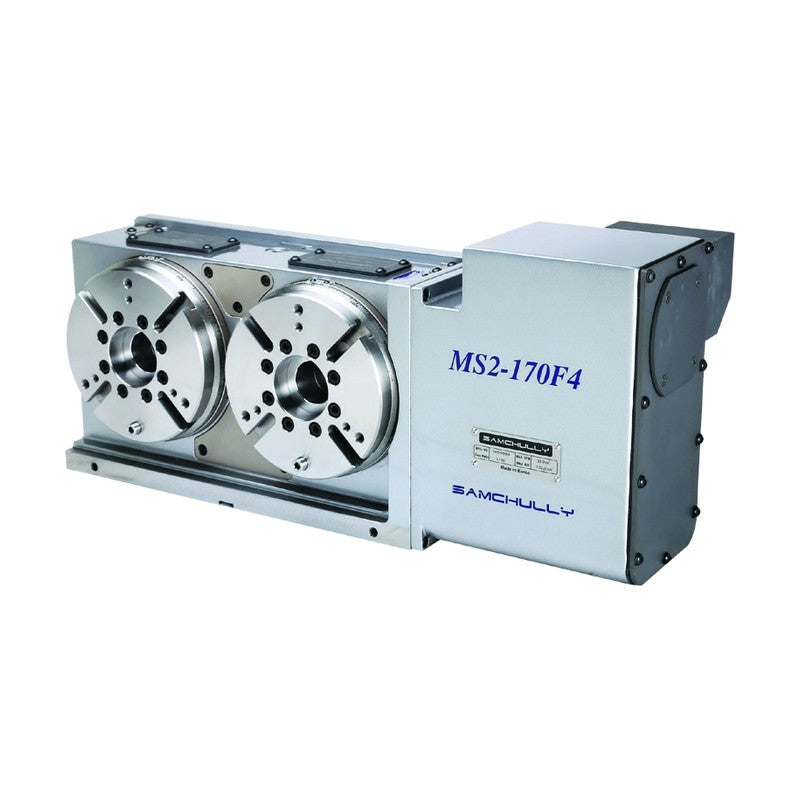

Samchully 4th-Axis 2-Spindle NC Rotary Table MS2 Series (FANUC Motor)

Samchully 4th-Axis 2-Spindle NC Rotary Table MS2 Series (FANUC Motor)

Two-spindle 4th-axis NC rotary table with FANUC motor that doubles production output for balanced workpieces.

Key features

  • Two spindles
  • Doubles production output
  • High clamping force by double piston
  • Table optional
MS2-170F4 Motor Side: Standard | Table Dia. (mm): (Table: Option) Ø175 | Center Height (mm): 140 | Table Hole Dia. (mm): Ø60H8 | Spindle Through Hole Dia. (mm): Ø40H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 380 | Max. Spindle Speed (min-1): 33.3 | Gear Ratio: 1/90 | Indexing Accuracy (sec): 30 | Repeatability (sec): 4 | Servo Motor: FANUC αiF4/5000-B | Weight (kg): 87
MS2-170LF4 Motor Side: L type | Table Dia. (mm): (Table: Option) Ø175 | Center Height (mm): 140 | Table Hole Dia. (mm): Ø60H8 | Spindle Through Hole Dia. (mm): Ø40H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 380 | Max. Spindle Speed (min-1): 33.3 | Gear Ratio: 1/90 | Indexing Accuracy (sec): 30 | Repeatability (sec): 4 | Servo Motor: FANUC αiF4/5000-B | Weight (kg): 87
NC Rotary TablesSamchully
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully 4th-Axis 2-Spindle NC Rotary Table MS2 Series (FANUC Motor)

Brand Samchully·NC Rotary Tables

Available part numbers (2)

MS2-170F4, MS2-170LF4

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MS2-170F4Motor Side: Standard | Table Dia. (mm): (Table: Option) Ø175 | Center Height (mm): 140 | Table Hole Dia. (mm): Ø60H8 | Spindle Through Hole Dia. (mm): Ø40H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 380 | Max. Spindle Speed (min-1): 33.3 | Gear Ratio: 1/90 | Indexing Accuracy (sec): 30 | Repeatability (sec): 4 | Servo Motor: FANUC αiF4/5000-B | Weight (kg): 87
MS2-170LF4Motor Side: L type | Table Dia. (mm): (Table: Option) Ø175 | Center Height (mm): 140 | Table Hole Dia. (mm): Ø60H8 | Spindle Through Hole Dia. (mm): Ø40H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 380 | Max. Spindle Speed (min-1): 33.3 | Gear Ratio: 1/90 | Indexing Accuracy (sec): 30 | Repeatability (sec): 4 | Servo Motor: FANUC αiF4/5000-B | Weight (kg): 87
