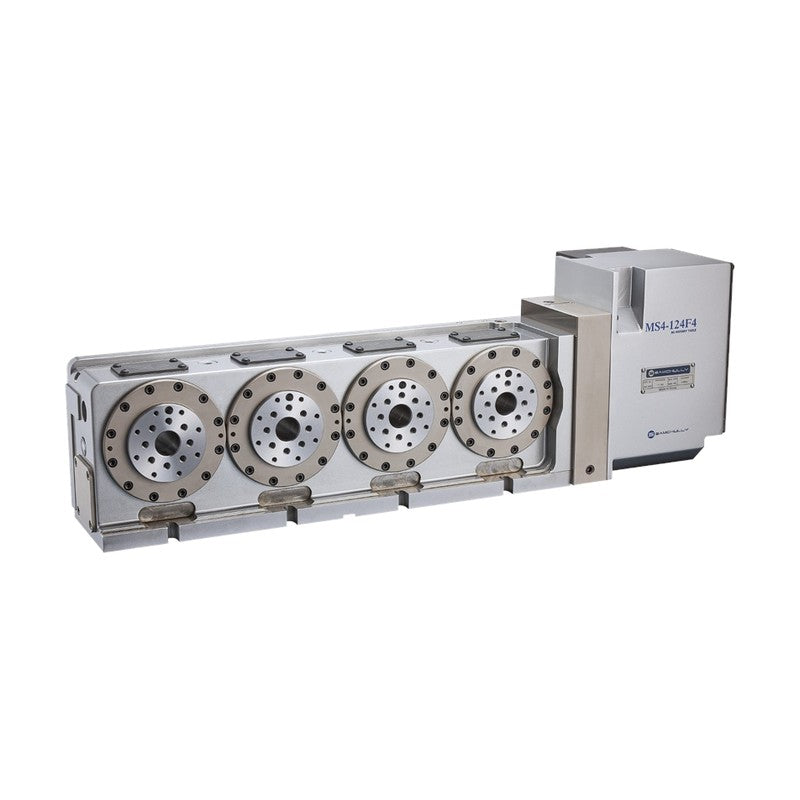

Samchully 4th-Axis 4-Spindle NC Rotary Table MS4-124F4

Samchully 4th-Axis 4-Spindle NC Rotary Table MS4-124F4

Four-spindle 4th-axis NC rotary table with FANUC motor for multiple balanced workpieces.

Key features

  • Four spindles
  • Hydraulic clamp
  • High clamping force by double piston
MS4-124F4 Spindle Dia. (mm): Ø94.5 | Center Height (mm): 120 | Spindle Through Hole Dia. (mm): Ø30H8 | Clamp Method: Hydraulic 28~38 kgf/cm² | Clamp Torque (N·m): 300 | Max. Spindle Speed (min-1): 33.3 | Gear Ratio: 1/90 | Indexing Accuracy (sec): 80 | Repeatability (sec): 12 | Servo Motor: FANUC αiF4/4000 | Weight (kg): 115 | Allowable Work Inertia (kgm2): 0.054
NC Rotary TablesSamchully
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully 4th-Axis 4-Spindle NC Rotary Table MS4-124F4

Brand Samchully·NC Rotary Tables

Available part numbers (1)

MS4-124F4

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MS4-124F4Spindle Dia. (mm): Ø94.5 | Center Height (mm): 120 | Spindle Through Hole Dia. (mm): Ø30H8 | Clamp Method: Hydraulic 28~38 kgf/cm² | Clamp Torque (N·m): 300 | Max. Spindle Speed (min-1): 33.3 | Gear Ratio: 1/90 | Indexing Accuracy (sec): 80 | Repeatability (sec): 12 | Servo Motor: FANUC αiF4/4000 | Weight (kg): 115 | Allowable Work Inertia (kgm2): 0.054
