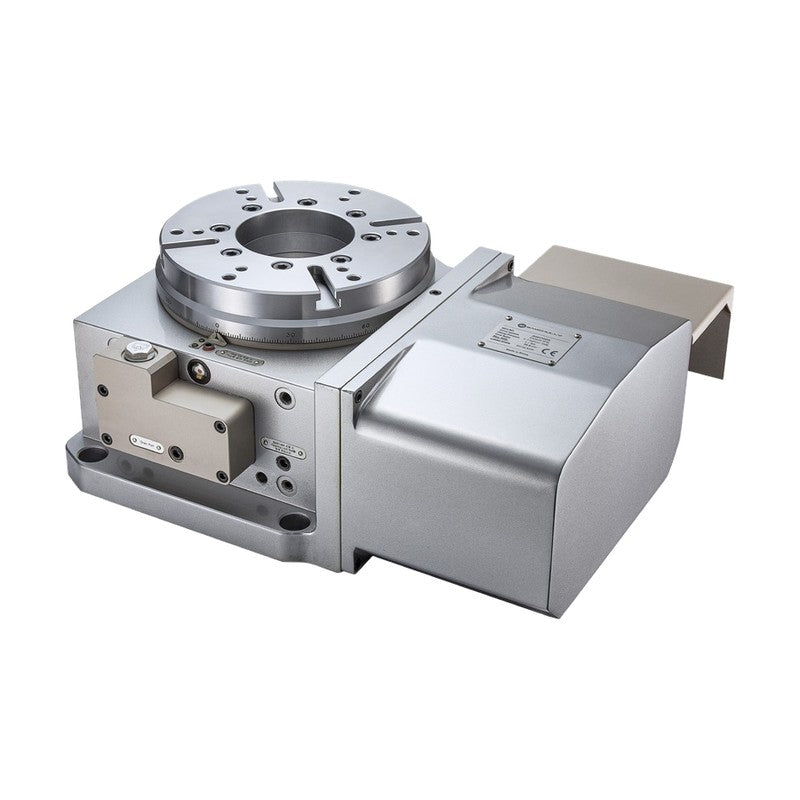

Samchully 4th-Axis High Speed Horizontal NC Rotary Table RHB Series (FANUC Motor)

Samchully 4th-Axis High Speed Horizontal NC Rotary Table RHB Series (FANUC Motor)

Low-torque, high-speed horizontal NC rotary tables with FANUC servo motor, table diameters 240 to 400 mm.

Key features

  • High speed spindle
  • Horizontal NC rotary table
  • Air clamp (hydraulic option)
  • RHB-400F22 with internal rotary joint 10+1 ports
RHB-250F4 Table Dia. (mm): Ø240 | Center Height (mm): 200 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø78H8 | Clamp Method: Pneumatic 5~7 kgf/cm² / Hydraulic 25~35 kgf/cm² | Max. Spindle Speed (min-1): 66.6 (motor 4000 min-1) | Gear Ratio: 1/60 | Indexing Accuracy (sec): 20 | Repeatability (sec): 5 | Servo Motor: FANUC αiF4/5000-B | Weight (kg): 100
RHB-300F8 Table Dia. (mm): Ø300 | Center Height (mm): 215 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø78H8 | Clamp Method: Pneumatic 5~7 kgf/cm² / Hydraulic 25~35 kgf/cm² | Max. Spindle Speed (min-1): 50 (motor 3000 min-1) | Gear Ratio: 1/60 | Indexing Accuracy (sec): 20 | Repeatability (sec): 5 | Servo Motor: FANUC αiF8/3000-B | Weight (kg): 100
RHB-400F22 Table Dia. (mm): Ø400 | Table Height (mm): 235 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 3000 | Max. Spindle Speed (min-1): 44.4 (motor 2000 min-1) | Gear Ratio: 1/45 | Indexing Accuracy (sec): 20 | Repeatability (sec): 5 | Servo Motor: FANUC αiF22/3000-B | Weight (kg): 100 | Allowable Load Horizontal (kg): 600
NC Rotary TablesSamchully
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully 4th-Axis High Speed Horizontal NC Rotary Table RHB Series (FANUC Motor)

Brand Samchully·NC Rotary Tables

Available part numbers (3)

RHB-250F4, RHB-300F8, RHB-400F22

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RHB-250F4Table Dia. (mm): Ø240 | Center Height (mm): 200 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø78H8 | Clamp Method: Pneumatic 5~7 kgf/cm² / Hydraulic 25~35 kgf/cm² | Max. Spindle Speed (min-1): 66.6 (motor 4000 min-1) | Gear Ratio: 1/60 | Indexing Accuracy (sec): 20 | Repeatability (sec): 5 | Servo Motor: FANUC αiF4/5000-B | Weight (kg): 100
RHB-300F8Table Dia. (mm): Ø300 | Center Height (mm): 215 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø78H8 | Clamp Method: Pneumatic 5~7 kgf/cm² / Hydraulic 25~35 kgf/cm² | Max. Spindle Speed (min-1): 50 (motor 3000 min-1) | Gear Ratio: 1/60 | Indexing Accuracy (sec): 20 | Repeatability (sec): 5 | Servo Motor: FANUC αiF8/3000-B | Weight (kg): 100
RHB-400F22Table Dia. (mm): Ø400 | Table Height (mm): 235 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 3000 | Max. Spindle Speed (min-1): 44.4 (motor 2000 min-1) | Gear Ratio: 1/45 | Indexing Accuracy (sec): 20 | Repeatability (sec): 5 | Servo Motor: FANUC αiF22/3000-B | Weight (kg): 100 | Allowable Load Horizontal (kg): 600
