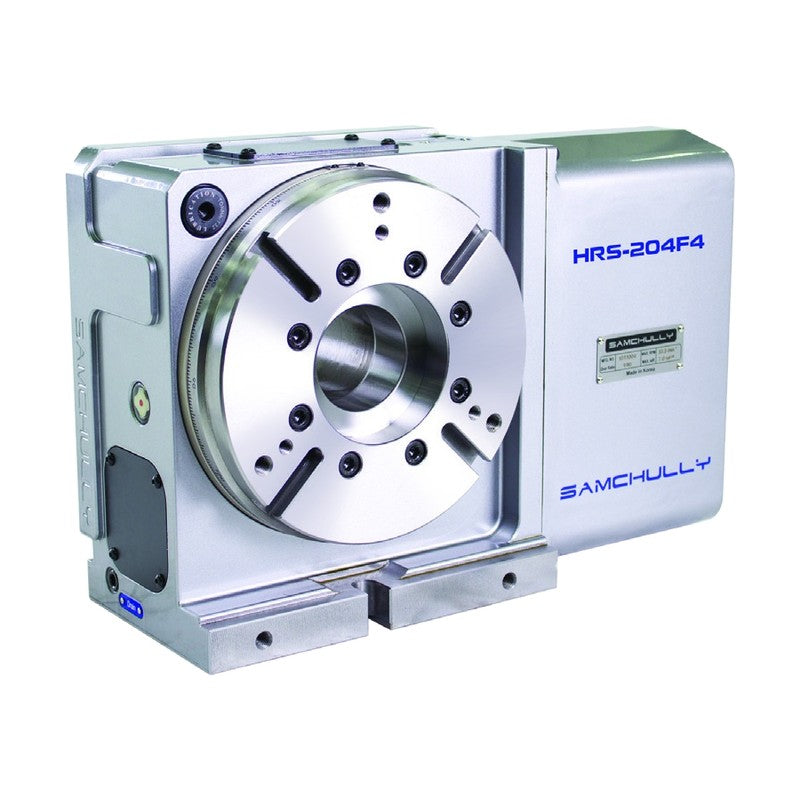

Samchully 4th-Axis Hydraulic NC Rotary Table HRS Series (FANUC Motor)

Samchully 4th-Axis Hydraulic NC Rotary Table HRS Series (FANUC Motor)

Hydraulic-clamp 4th-axis NC rotary tables with FANUC servo motor, table diameters from 200 to 658 mm.

Key features

  • Hydraulic clamp 25~35 kgf/cm²
  • Vertical and horizontal mounting
  • Compact, extremely rigid body
  • High clamping force by double piston
  • L type with alternate motor side available
HRS-204F4 Motor Side: Standard | Table Dia. (mm): Ø200 | Center Height (mm): 170 | Table Hole Dia. (mm): Ø75H7 | Spindle Through Hole Dia. (mm): Ø45H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 720 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF4/5000-B | Weight (kg): 79
HRS-204LF4 Motor Side: L type | Table Dia. (mm): Ø200 | Center Height (mm): 170 | Table Hole Dia. (mm): Ø75H7 | Spindle Through Hole Dia. (mm): Ø45H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 720 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF4/5000-B | Weight (kg): 79
HRS-254F4 Motor Side: Standard | Table Dia. (mm): Ø240 | Center Height (mm): 185 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø70H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 1500 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF4/5000-B | Weight (kg): 116
HRS-254LF4 Motor Side: L type | Table Dia. (mm): Ø240 | Center Height (mm): 185 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø70H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 1500 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF4/5000-B | Weight (kg): 116
HRS-254F8 Motor Side: Standard | Table Dia. (mm): Ø240 | Center Height (mm): 185 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø70H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 1500 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF8/3000-B | Weight (kg): 116
HRS-254LF8 Motor Side: L type | Table Dia. (mm): Ø240 | Center Height (mm): 185 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø70H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 1500 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF8/3000-B | Weight (kg): 116
HRS-324F8 Motor Side: Standard | Table Dia. (mm): Ø310 | Center Height (mm): 225 | Table Hole Dia. (mm): Ø130H7 | Spindle Through Hole Dia. (mm): Ø105H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 2300 | Max. Spindle Speed (min-1): 25 (motor 3000 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF8/3000-B | Weight (kg): 180
HRS-324LF8 Motor Side: L type | Table Dia. (mm): Ø310 | Center Height (mm): 225 | Table Hole Dia. (mm): Ø130H7 | Spindle Through Hole Dia. (mm): Ø105H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 2300 | Max. Spindle Speed (min-1): 25 (motor 3000 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF8/3000-B | Weight (kg): 180
HRS-430F22 Motor Side: Standard | Table Dia. (mm): Ø432 | Center Height (mm): 283 | Table Hole Dia. (mm): Ø220H7 | Spindle Through Hole Dia. (mm): Ø194H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 2500 | Max. Spindle Speed (min-1): 16.66 (motor 2000 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF22/3000-B | Weight (kg): 350
HRS-430LF22 Motor Side: L type | Table Dia. (mm): Ø432 | Center Height (mm): 283 | Table Hole Dia. (mm): Ø220H7 | Spindle Through Hole Dia. (mm): Ø194H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 2500 | Max. Spindle Speed (min-1): 16.66 (motor 2000 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF22/3000-B | Weight (kg): 350
HRS-515F22 Motor Side: Standard | Table Dia. (mm): Ø518 | Center Height (mm): 335 | Table Hole Dia. (mm): Ø290H7 | Spindle Through Hole Dia. (mm): Ø264H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 3200 | Max. Spindle Speed (min-1): 16.66 (motor 2000 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF22/3000-B | Weight (kg): 430
HRS-515LF22 Motor Side: L type | Table Dia. (mm): Ø518 | Center Height (mm): 335 | Table Hole Dia. (mm): Ø290H7 | Spindle Through Hole Dia. (mm): Ø264H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 3200 | Max. Spindle Speed (min-1): 16.66 (motor 2000 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF22/3000-B | Weight (kg): 430
HRS-650F22 Motor Side: Standard | Table Dia. (mm): Ø658 | Center Height (mm): 410 | Table Hole Dia. (mm): Ø400H7 | Spindle Through Hole Dia. (mm): Ø372H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 4000 | Max. Spindle Speed (min-1): 11.11 (motor 1333 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF22/3000-B | Weight (kg): 750
HRS-650LF22 Motor Side: L type | Table Dia. (mm): Ø658 | Center Height (mm): 410 | Table Hole Dia. (mm): Ø400H7 | Spindle Through Hole Dia. (mm): Ø372H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 4000 | Max. Spindle Speed (min-1): 11.11 (motor 1333 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF22/3000-B | Weight (kg): 750
NC Rotary TablesSamchully
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully 4th-Axis Hydraulic NC Rotary Table HRS Series (FANUC Motor)

Brand Samchully·NC Rotary Tables

Available part numbers (14)

HRS-204F4, HRS-204LF4, HRS-254F4, HRS-254LF4, HRS-254F8, HRS-254LF8, HRS-324F8, HRS-324LF8, HRS-430F22, HRS-430LF22 + 4 more — see full table ↓

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HRS-204F4Motor Side: Standard | Table Dia. (mm): Ø200 | Center Height (mm): 170 | Table Hole Dia. (mm): Ø75H7 | Spindle Through Hole Dia. (mm): Ø45H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 720 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF4/5000-B | Weight (kg): 79
HRS-204LF4Motor Side: L type | Table Dia. (mm): Ø200 | Center Height (mm): 170 | Table Hole Dia. (mm): Ø75H7 | Spindle Through Hole Dia. (mm): Ø45H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 720 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF4/5000-B | Weight (kg): 79
HRS-254F4Motor Side: Standard | Table Dia. (mm): Ø240 | Center Height (mm): 185 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø70H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 1500 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF4/5000-B | Weight (kg): 116
HRS-254LF4Motor Side: L type | Table Dia. (mm): Ø240 | Center Height (mm): 185 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø70H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 1500 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF4/5000-B | Weight (kg): 116
HRS-254F8Motor Side: Standard | Table Dia. (mm): Ø240 | Center Height (mm): 185 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø70H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 1500 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF8/3000-B | Weight (kg): 116
HRS-254LF8Motor Side: L type | Table Dia. (mm): Ø240 | Center Height (mm): 185 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø70H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 1500 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF8/3000-B | Weight (kg): 116
HRS-324F8Motor Side: Standard | Table Dia. (mm): Ø310 | Center Height (mm): 225 | Table Hole Dia. (mm): Ø130H7 | Spindle Through Hole Dia. (mm): Ø105H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 2300 | Max. Spindle Speed (min-1): 25 (motor 3000 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF8/3000-B | Weight (kg): 180
HRS-324LF8Motor Side: L type | Table Dia. (mm): Ø310 | Center Height (mm): 225 | Table Hole Dia. (mm): Ø130H7 | Spindle Through Hole Dia. (mm): Ø105H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 2300 | Max. Spindle Speed (min-1): 25 (motor 3000 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF8/3000-B | Weight (kg): 180
HRS-430F22Motor Side: Standard | Table Dia. (mm): Ø432 | Center Height (mm): 283 | Table Hole Dia. (mm): Ø220H7 | Spindle Through Hole Dia. (mm): Ø194H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 2500 | Max. Spindle Speed (min-1): 16.66 (motor 2000 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF22/3000-B | Weight (kg): 350
HRS-430LF22Motor Side: L type | Table Dia. (mm): Ø432 | Center Height (mm): 283 | Table Hole Dia. (mm): Ø220H7 | Spindle Through Hole Dia. (mm): Ø194H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 2500 | Max. Spindle Speed (min-1): 16.66 (motor 2000 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF22/3000-B | Weight (kg): 350
HRS-515F22Motor Side: Standard | Table Dia. (mm): Ø518 | Center Height (mm): 335 | Table Hole Dia. (mm): Ø290H7 | Spindle Through Hole Dia. (mm): Ø264H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 3200 | Max. Spindle Speed (min-1): 16.66 (motor 2000 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF22/3000-B | Weight (kg): 430
HRS-515LF22Motor Side: L type | Table Dia. (mm): Ø518 | Center Height (mm): 335 | Table Hole Dia. (mm): Ø290H7 | Spindle Through Hole Dia. (mm): Ø264H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 3200 | Max. Spindle Speed (min-1): 16.66 (motor 2000 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF22/3000-B | Weight (kg): 430
HRS-650F22Motor Side: Standard | Table Dia. (mm): Ø658 | Center Height (mm): 410 | Table Hole Dia. (mm): Ø400H7 | Spindle Through Hole Dia. (mm): Ø372H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 4000 | Max. Spindle Speed (min-1): 11.11 (motor 1333 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF22/3000-B | Weight (kg): 750
HRS-650LF22Motor Side: L type | Table Dia. (mm): Ø658 | Center Height (mm): 410 | Table Hole Dia. (mm): Ø400H7 | Spindle Through Hole Dia. (mm): Ø372H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 4000 | Max. Spindle Speed (min-1): 11.11 (motor 1333 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF22/3000-B | Weight (kg): 750
