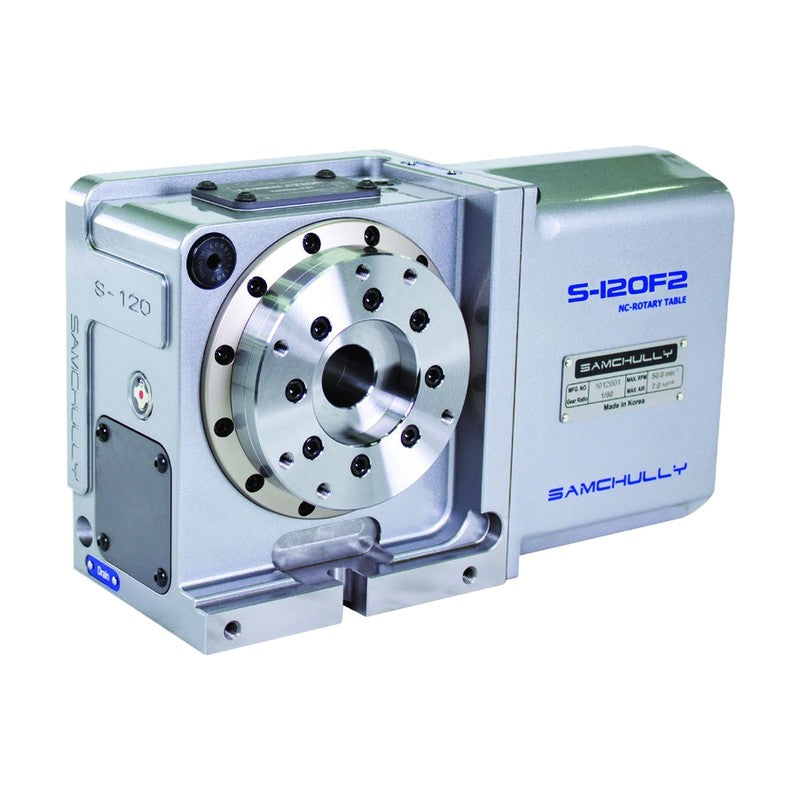

Samchully 4th-Axis NC Rotary Table S Series (FANUC Motor)

Samchully 4th-Axis NC Rotary Table S Series (FANUC Motor)

Pneumatic-clamp 4th-axis NC rotary tables with worm gear drive and FANUC servo motor, table diameters from 124 to 310 mm, for vertical or horizontal mounting.

Key features

  • Vertical and horizontal mounting
  • Compact, extremely rigid body
  • High clamping force by double piston
  • Pneumatic clamp 5~7 kgf/cm²
  • L type with alternate motor side available
S-120F2 Motor Side: Standard | Table Dia. (mm): Ø124 | Center Height (mm): 120 | Table Hole Dia. (mm): Ø60H7 | Spindle Through Hole Dia. (mm): Ø30H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 150 | Max. Spindle Speed (min-1): 50 (motor 3000 min-1) | Gear Ratio: 1/60 | Indexing Accuracy (sec): 30 | Repeatability (sec): 4 | Servo Motor: FANUC αiF2/5000-B | Weight (kg): 35
S-170F2 Motor Side: Standard | Table Dia. (mm): Ø175 | Center Height (mm): 140 | Table Hole Dia. (mm): Ø60H7 | Spindle Through Hole Dia. (mm): Ø40H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 380 | Max. Spindle Speed (min-1): 41.6 (motor 3000 min-1) | Gear Ratio: 1/72 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF2/5000-B | Weight (kg): 52
S-170LF2 Motor Side: L type | Table Dia. (mm): Ø175 | Center Height (mm): 140 | Table Hole Dia. (mm): Ø60H7 | Spindle Through Hole Dia. (mm): Ø40H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 380 | Max. Spindle Speed (min-1): 41.6 (motor 3000 min-1) | Gear Ratio: 1/72 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF2/5000-B | Weight (kg): 52
S-200F4 Motor Side: Standard | Table Dia. (mm): Ø200 | Center Height (mm): 170 | Table Hole Dia. (mm): Ø75H7 | Spindle Through Hole Dia. (mm): Ø45H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 480 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF4/5000-B | Weight (kg): 79
S-200LF4 Motor Side: L type | Table Dia. (mm): Ø200 | Center Height (mm): 170 | Table Hole Dia. (mm): Ø75H7 | Spindle Through Hole Dia. (mm): Ø45H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 480 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF4/5000-B | Weight (kg): 79
S-250F4 Motor Side: Standard | Table Dia. (mm): Ø240 | Center Height (mm): 185 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø70H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 750 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF4/5000-B | Weight (kg): 100
S-250LF4 Motor Side: L type | Table Dia. (mm): Ø240 | Center Height (mm): 185 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø70H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 750 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF4/5000-B | Weight (kg): 100
S-250F8 Motor Side: Standard | Table Dia. (mm): Ø240 | Center Height (mm): 185 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø70H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 750 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF8/3000-B | Weight (kg): 105
S-250LF8 Motor Side: L type | Table Dia. (mm): Ø240 | Center Height (mm): 185 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø70H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 750 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF8/3000-B | Weight (kg): 105
S-320F8 Motor Side: Standard | Table Dia. (mm): Ø310 | Center Height (mm): 225 | Table Hole Dia. (mm): Ø130H7 | Spindle Through Hole Dia. (mm): Ø105H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 1440 | Max. Spindle Speed (min-1): 25 (motor 3000 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF8/3000-B | Weight (kg): 175
S-320LF8 Motor Side: L type | Table Dia. (mm): Ø310 | Center Height (mm): 225 | Table Hole Dia. (mm): Ø130H7 | Spindle Through Hole Dia. (mm): Ø105H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 1440 | Max. Spindle Speed (min-1): 25 (motor 3000 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF8/3000-B | Weight (kg): 175
NC Rotary TablesSamchully
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully 4th-Axis NC Rotary Table S Series (FANUC Motor)

Brand Samchully·NC Rotary Tables

Available part numbers (11)

S-120F2, S-170F2, S-170LF2, S-200F4, S-200LF4, S-250F4, S-250LF4, S-250F8, S-250LF8, S-320F8 + 1 more — see full table ↓

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
S-120F2Motor Side: Standard | Table Dia. (mm): Ø124 | Center Height (mm): 120 | Table Hole Dia. (mm): Ø60H7 | Spindle Through Hole Dia. (mm): Ø30H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 150 | Max. Spindle Speed (min-1): 50 (motor 3000 min-1) | Gear Ratio: 1/60 | Indexing Accuracy (sec): 30 | Repeatability (sec): 4 | Servo Motor: FANUC αiF2/5000-B | Weight (kg): 35
S-170F2Motor Side: Standard | Table Dia. (mm): Ø175 | Center Height (mm): 140 | Table Hole Dia. (mm): Ø60H7 | Spindle Through Hole Dia. (mm): Ø40H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 380 | Max. Spindle Speed (min-1): 41.6 (motor 3000 min-1) | Gear Ratio: 1/72 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF2/5000-B | Weight (kg): 52
S-170LF2Motor Side: L type | Table Dia. (mm): Ø175 | Center Height (mm): 140 | Table Hole Dia. (mm): Ø60H7 | Spindle Through Hole Dia. (mm): Ø40H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 380 | Max. Spindle Speed (min-1): 41.6 (motor 3000 min-1) | Gear Ratio: 1/72 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF2/5000-B | Weight (kg): 52
S-200F4Motor Side: Standard | Table Dia. (mm): Ø200 | Center Height (mm): 170 | Table Hole Dia. (mm): Ø75H7 | Spindle Through Hole Dia. (mm): Ø45H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 480 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF4/5000-B | Weight (kg): 79
S-200LF4Motor Side: L type | Table Dia. (mm): Ø200 | Center Height (mm): 170 | Table Hole Dia. (mm): Ø75H7 | Spindle Through Hole Dia. (mm): Ø45H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 480 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF4/5000-B | Weight (kg): 79
S-250F4Motor Side: Standard | Table Dia. (mm): Ø240 | Center Height (mm): 185 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø70H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 750 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF4/5000-B | Weight (kg): 100
S-250LF4Motor Side: L type | Table Dia. (mm): Ø240 | Center Height (mm): 185 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø70H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 750 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF4/5000-B | Weight (kg): 100
S-250F8Motor Side: Standard | Table Dia. (mm): Ø240 | Center Height (mm): 185 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø70H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 750 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF8/3000-B | Weight (kg): 105
S-250LF8Motor Side: L type | Table Dia. (mm): Ø240 | Center Height (mm): 185 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø70H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 750 | Max. Spindle Speed (min-1): 33.3 (motor 3000 min-1) | Gear Ratio: 1/90 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF8/3000-B | Weight (kg): 105
S-320F8Motor Side: Standard | Table Dia. (mm): Ø310 | Center Height (mm): 225 | Table Hole Dia. (mm): Ø130H7 | Spindle Through Hole Dia. (mm): Ø105H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 1440 | Max. Spindle Speed (min-1): 25 (motor 3000 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF8/3000-B | Weight (kg): 175
S-320LF8Motor Side: L type | Table Dia. (mm): Ø310 | Center Height (mm): 225 | Table Hole Dia. (mm): Ø130H7 | Spindle Through Hole Dia. (mm): Ø105H8 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 1440 | Max. Spindle Speed (min-1): 25 (motor 3000 min-1) | Gear Ratio: 1/120 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF8/3000-B | Weight (kg): 175
