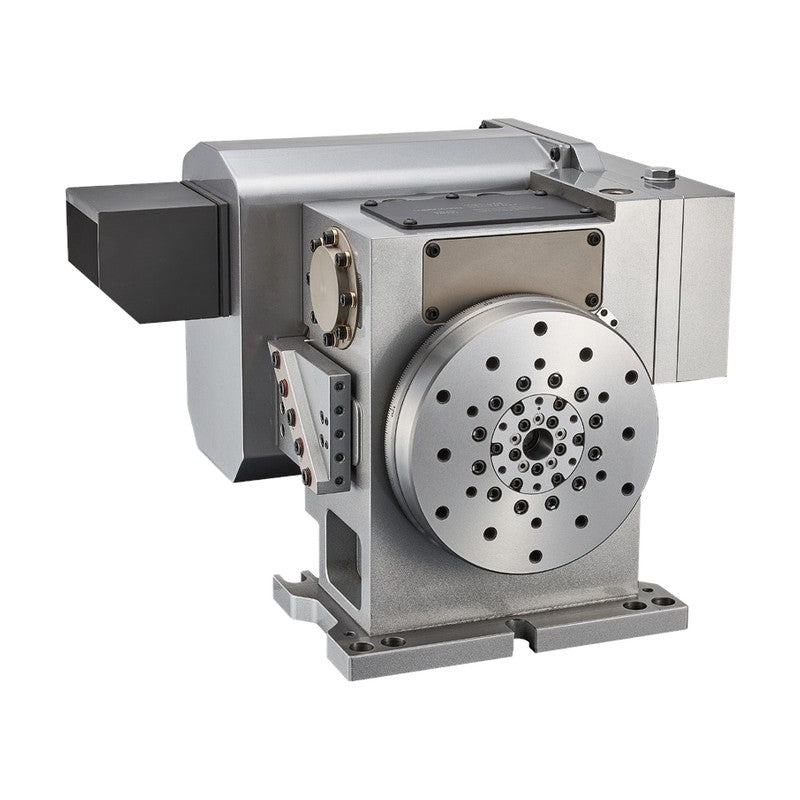

Samchully 4th-Axis Rear Mounted Motor Zero Backlash NC Rotary Table RB-200F4

Samchully 4th-Axis Rear Mounted Motor Zero Backlash NC Rotary Table RB-200F4

Ø200 mm roller gear cam NC rotary table with rear mounted FANUC motor and zero backlash.

Key features

  • Rear mounted motor
  • Roller gear cam drive
  • Zero backlash
  • Pneumatic clamp
RB-200F4 Table Dia. (mm): Ø200 | Center Height (mm): 170 | Table Hole Dia. (mm): Ø75 | Spindle Through Hole Dia. (mm): Ø55 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 300 | Max. Spindle Speed (min-1): 50 | Gear Ratio: 1/60 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF4/5000-B | Weight (kg): 80
NC Rotary TablesSamchully
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully 4th-Axis Rear Mounted Motor Zero Backlash NC Rotary Table RB-200F4

Brand Samchully·NC Rotary Tables

Available part numbers (1)

RB-200F4

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RB-200F4Table Dia. (mm): Ø200 | Center Height (mm): 170 | Table Hole Dia. (mm): Ø75 | Spindle Through Hole Dia. (mm): Ø55 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 300 | Max. Spindle Speed (min-1): 50 | Gear Ratio: 1/60 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF4/5000-B | Weight (kg): 80
