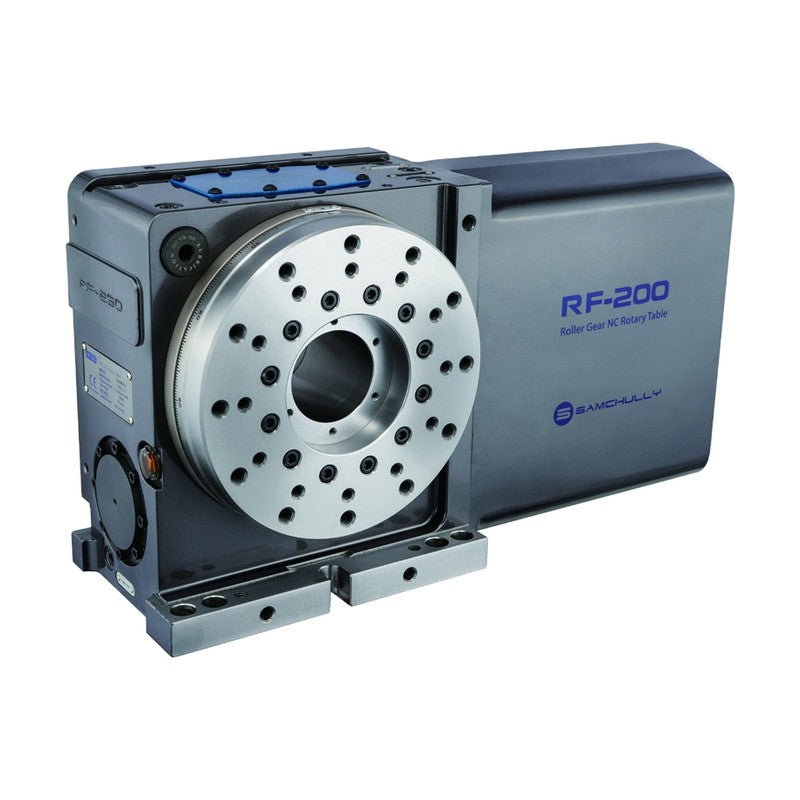

Samchully 4th-Axis Zero Backlash NC Rotary Table RF Series (FANUC Motor)

Samchully 4th-Axis Zero Backlash NC Rotary Table RF Series (FANUC Motor)

Roller gear cam driven 4th-axis NC rotary tables with zero backlash and FANUC servo motor.

Key features

  • Roller gear cam drive
  • Zero backlash
  • High-definition indexing
  • Pneumatic clamp
RF-200F4 Table Dia. (mm): Ø200 | Center Height (mm): 170 | Table Hole Dia. (mm): Ø75H7 | Spindle Through Hole Dia. (mm): Ø54.4H7 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 310 | Max. Spindle Speed (min-1): 50 (motor 2500 min-1) | Gear Ratio: 1/50 | Indexing Accuracy (sec): 30 | Repeatability (sec): 8 | Servo Motor: FANUC αiF4/5000-B | Weight (kg): 85 | Allowable Work Inertia (kgm2): 0.5
RF-250F8 Table Dia. (mm): Ø240 | Center Height (mm): 185 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø70H7 | Clamp Method: Pneumatic 5~7 kgf/cm² | Max. Spindle Speed (min-1): 50 (motor 3000 min-1) | Gear Ratio: 1/60 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF8/3000-B | Weight (kg): 100 | Allowable Work Inertia (kgm2): 0.5 | Allowable Load Horizontal (kg): 250
RF-320F8 Table Dia. (mm): Ø314 | Center Height (mm): 225 | Table Hole Dia. (mm): Ø140H7 | Spindle Through Hole Dia. (mm): Ø105H7 | Clamp Method: Pneumatic 5~7 kgf/cm² | Max. Spindle Speed (min-1): 41.66 (motor 3000 min-1) | Gear Ratio: 1/72 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF8/3000-B | Weight (kg): 160 | Allowable Work Inertia (kgm2): 4.49 | Allowable Load Horizontal (kg): 350
NC Rotary TablesSamchully
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully 4th-Axis Zero Backlash NC Rotary Table RF Series (FANUC Motor)

Brand Samchully·NC Rotary Tables

Available part numbers (3)

RF-200F4, RF-250F8, RF-320F8

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RF-200F4Table Dia. (mm): Ø200 | Center Height (mm): 170 | Table Hole Dia. (mm): Ø75H7 | Spindle Through Hole Dia. (mm): Ø54.4H7 | Clamp Method: Pneumatic 5~7 kgf/cm² | Clamp Torque (N·m): 310 | Max. Spindle Speed (min-1): 50 (motor 2500 min-1) | Gear Ratio: 1/50 | Indexing Accuracy (sec): 30 | Repeatability (sec): 8 | Servo Motor: FANUC αiF4/5000-B | Weight (kg): 85 | Allowable Work Inertia (kgm2): 0.5
RF-250F8Table Dia. (mm): Ø240 | Center Height (mm): 185 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø70H7 | Clamp Method: Pneumatic 5~7 kgf/cm² | Max. Spindle Speed (min-1): 50 (motor 3000 min-1) | Gear Ratio: 1/60 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF8/3000-B | Weight (kg): 100 | Allowable Work Inertia (kgm2): 0.5 | Allowable Load Horizontal (kg): 250
RF-320F8Table Dia. (mm): Ø314 | Center Height (mm): 225 | Table Hole Dia. (mm): Ø140H7 | Spindle Through Hole Dia. (mm): Ø105H7 | Clamp Method: Pneumatic 5~7 kgf/cm² | Max. Spindle Speed (min-1): 41.66 (motor 3000 min-1) | Gear Ratio: 1/72 | Indexing Accuracy (sec): 20 | Repeatability (sec): 4 | Servo Motor: FANUC αiF8/3000-B | Weight (kg): 160 | Allowable Work Inertia (kgm2): 4.49 | Allowable Load Horizontal (kg): 350
