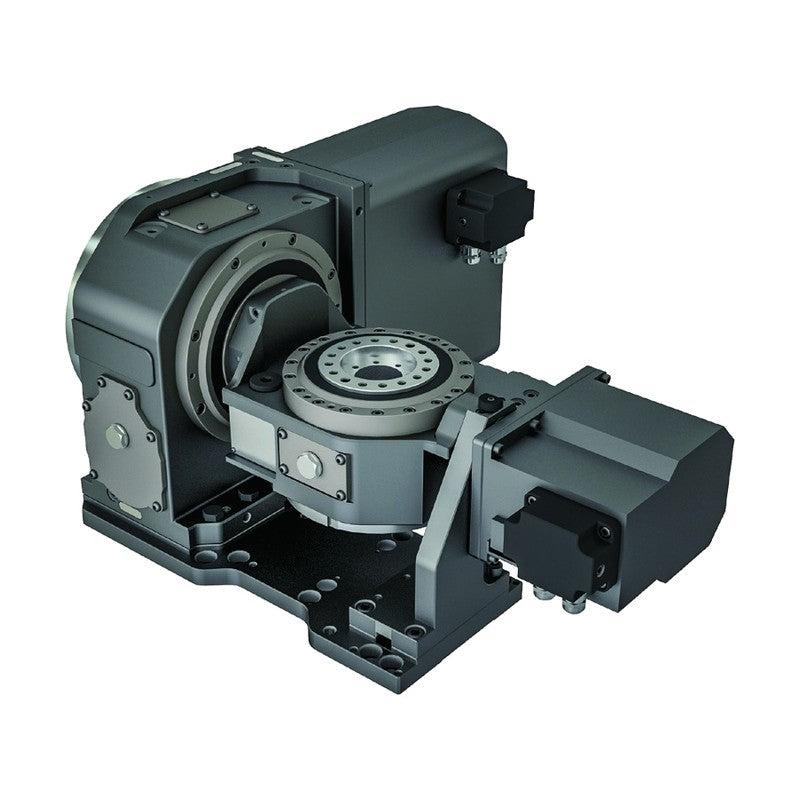

Samchully 5th-Axis Compact Tilting NC Rotary Table TM-184FF

Samchully 5th-Axis Compact Tilting NC Rotary Table TM-184FF

Ø170 mm compact tilting NC rotary table with roller gear cam (zero backlash) and FANUC servo motors.

Key features

  • Compact tilting design
  • Roller gear cam, zero backlash
  • Hydraulic clamp
TM-184FF Table Dia. (mm): Ø170 | Center Height (mm): 150 | Table Hole Dia. (mm): Ø72H7 | Spindle Through Hole Dia. (mm): Ø46H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 310 (rotary) / 800 (tilt) | Max. Spindle Speed (min-1): 41.6 (rotary) / 50 (tilt) | Gear Ratio: 1/72 (rotary) / 1/60 (tilt) | Indexing Accuracy (sec): 30 (rotary) / 40 (tilt) | Repeatability (sec): 4 (rotary) / 6 (tilt) | Tilting Range: -15°~110° | Servo Motor: FANUC αiS2/5000-B (rotary) / αiF4/5000-B (tilt) | Weight (kg): 162.5
NC Rotary TablesSamchully
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully 5th-Axis Compact Tilting NC Rotary Table TM-184FF

Brand Samchully·NC Rotary Tables

Available part numbers (1)

TM-184FF

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TM-184FFTable Dia. (mm): Ø170 | Center Height (mm): 150 | Table Hole Dia. (mm): Ø72H7 | Spindle Through Hole Dia. (mm): Ø46H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 310 (rotary) / 800 (tilt) | Max. Spindle Speed (min-1): 41.6 (rotary) / 50 (tilt) | Gear Ratio: 1/72 (rotary) / 1/60 (tilt) | Indexing Accuracy (sec): 30 (rotary) / 40 (tilt) | Repeatability (sec): 4 (rotary) / 6 (tilt) | Tilting Range: -15°~110° | Servo Motor: FANUC αiS2/5000-B (rotary) / αiF4/5000-B (tilt) | Weight (kg): 162.5
