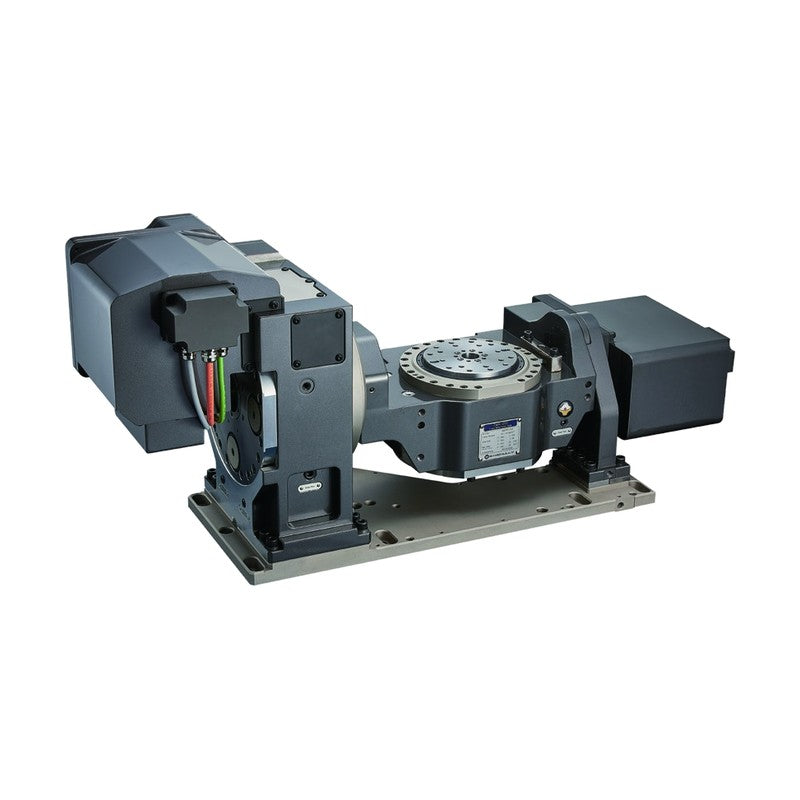

Samchully 5th-Axis Compact Tilting NC Rotary Table TMA-200FF

Samchully 5th-Axis Compact Tilting NC Rotary Table TMA-200FF

Ø140 mm compact tilting NC rotary table with FANUC servo motors and hydraulic clamp.

Key features

  • Compact tilting design
  • Tilting range -15° to 110°
  • Hydraulic clamp
TMA-200FF Table Dia. (mm): Ø140 | Center Height (mm): 230 | Table Hole Dia. (mm): Ø26 | Clamp Method: Hydraulic 21~25 kgf/cm² | Max. Spindle Speed (min-1): 50 (rotary) / 25 (tilt) | Gear Ratio: 1/60 (rotary) / 1/120 (tilt) | Indexing Accuracy (sec): 30 (rotary) / 45 (tilt) | Repeatability (sec): 4 (rotary) / 8 (tilt) | Tilting Range: -15°~110° | Servo Motor: FANUC αiF4/4000 | Weight (kg): 250
NC Rotary TablesSamchully
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samchully 5th-Axis Compact Tilting NC Rotary Table TMA-200FF

Brand Samchully·NC Rotary Tables

Available part numbers (1)

TMA-200FF

How to order

Send the Samchully part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TMA-200FFTable Dia. (mm): Ø140 | Center Height (mm): 230 | Table Hole Dia. (mm): Ø26 | Clamp Method: Hydraulic 21~25 kgf/cm² | Max. Spindle Speed (min-1): 50 (rotary) / 25 (tilt) | Gear Ratio: 1/60 (rotary) / 1/120 (tilt) | Indexing Accuracy (sec): 30 (rotary) / 45 (tilt) | Repeatability (sec): 4 (rotary) / 8 (tilt) | Tilting Range: -15°~110° | Servo Motor: FANUC αiF4/4000 | Weight (kg): 250
