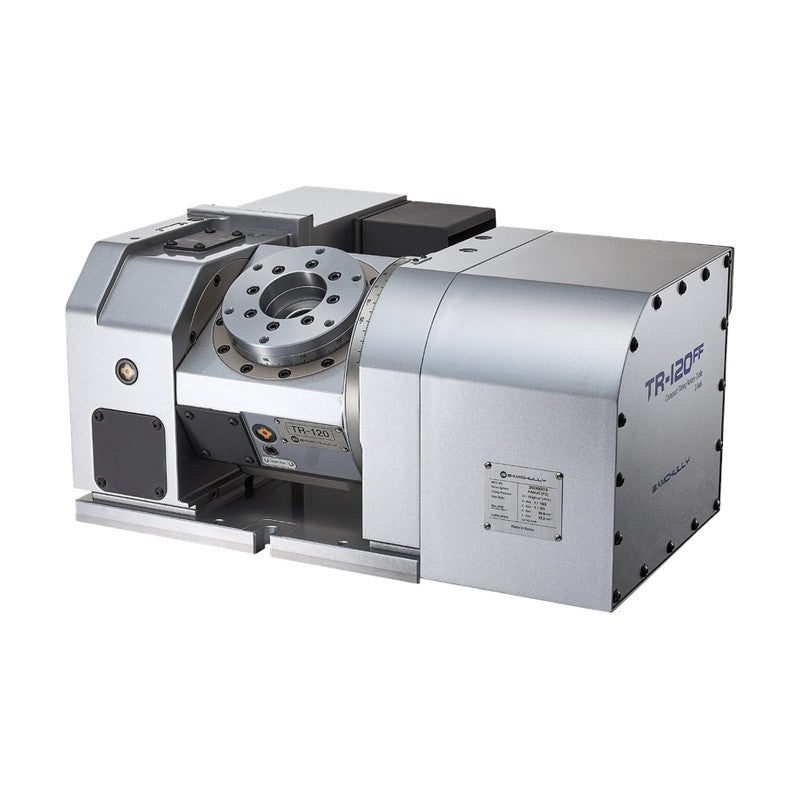

Samchully 5th-Axis Tilting NC Rotary Table TR Series (FANUC Motor)

Samchully 5th-Axis Tilting NC Rotary Table TR Series (FANUC Motor)

Two-axis tilting NC rotary tables (rotary and tilt axes) with FANUC servo motors and hydraulic clamp, table diameters 130 to 310 mm.

Key features

  • Rotary and tilting axes
  • Tilting range -20° to 110°
  • Convenient jig design, rigid body
  • Hydraulic clamp
TR-120FF Table Dia. (mm): Ø130 | Center Height (mm): 150 | Table Hole Dia. (mm): Ø60H7 | Spindle Through Hole Dia. (mm): Ø32H8 | Clamp Method: Hydraulic 21~25 kgf/cm² | Clamp Torque (N·m): 200 (rotary) / 300 (tilt) | Max. Spindle Speed (min-1): 33.3 (rotary) / 16.6 (tilt) | Gear Ratio: 1/90 (rotary) / 1/180 (tilt) | Indexing Accuracy (sec): 40 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 4 (tilt) | Tilting Range: -20°~110° | Servo Motor: FANUC αiF2/5000 | Weight (kg): 120
TR-200FF Table Dia. (mm): Ø200 | Center Height (mm): 180 | Table Hole Dia. (mm): Ø75H7 | Spindle Through Hole Dia. (mm): Ø45H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 450 (rotary) / 800 (tilt) | Max. Spindle Speed (min-1): 33.3 (rotary) / 16.6 (tilt) | Gear Ratio: 1/90 (rotary) / 1/180 (tilt) | Indexing Accuracy (sec): 30 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 4 (tilt) | Tilting Range: -20°~110° | Servo Motor: FANUC αiF4/5000-B | Weight (kg): 250
TR-250FF Table Dia. (mm): Ø240 | Center Height (mm): 225 | Table Hole Dia. (mm): Ø105H7 | Spindle Through Hole Dia. (mm): Ø70H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 900 (rotary) / 1200 (tilt) | Max. Spindle Speed (min-1): 33.3 (rotary) / 16.6 (tilt) | Gear Ratio: 1/90 (rotary) / 1/180 (tilt) | Indexing Accuracy (sec): 30 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 4 (tilt) | Tilting Range: -20°~110° | Servo Motor: FANUC αiF4/4000 | Weight (kg): 295
TR-320FF Table Dia. (mm): Ø310 | Center Height (mm): 242 | Table Hole Dia. (mm): Ø130H7 | Spindle Through Hole Dia. (mm): Ø105H8 | Clamp Method: Hydraulic 25~35 kgf/cm² | Clamp Torque (N·m): 2300 (rotary) / 2600 (tilt) | Max. Spindle Speed (min-1): 25 (rotary) / 25 (tilt) | Gear Ratio: 1/120 (rotary) / 1/120 (tilt) | Indexing Accuracy (sec): 30 (rotary) / 60 (tilt) | Repeatability (sec): 4 (rotary) / 8 (tilt) | Tilting Range: -20°~110° | Servo Motor: FANUC αiF8/3000 (rotary) / αiF12/3000 (tilt) | Weight (kg): 410
